Anodized Colors for Aluminum: Engineer's Guide

TL;DR:
Anodized colors are created by dyes absorbed into a porous aluminum oxide layer, making finishes more durable than paint. Type II supports a full spectrum of colors with moderate wear resistance, while Type III limited to blacks and bronzes but offers higher durability. Alloy choice, surface prep, and process standards must be specified to ensure consistent, high-quality anodized finishes.

Anodized colors are defined as dyes absorbed into a porous aluminum oxide layer created during the anodizing electrochemical process, producing finishes that are integral to the metal rather than applied on top. This distinction makes anodized aluminum finishes fundamentally more durable than paint or powder coat. The two governing process standards are Type II (sulfuric acid anodizing) and Type III (hardcoat anodizing), and the choice between them directly determines which colors are achievable. Alloy selection matters just as much: a 6061 part and a 2024 part processed identically will produce visibly different results. For industrial designers and engineers, understanding these variables is the difference between a predictable production finish and an expensive rework cycle.

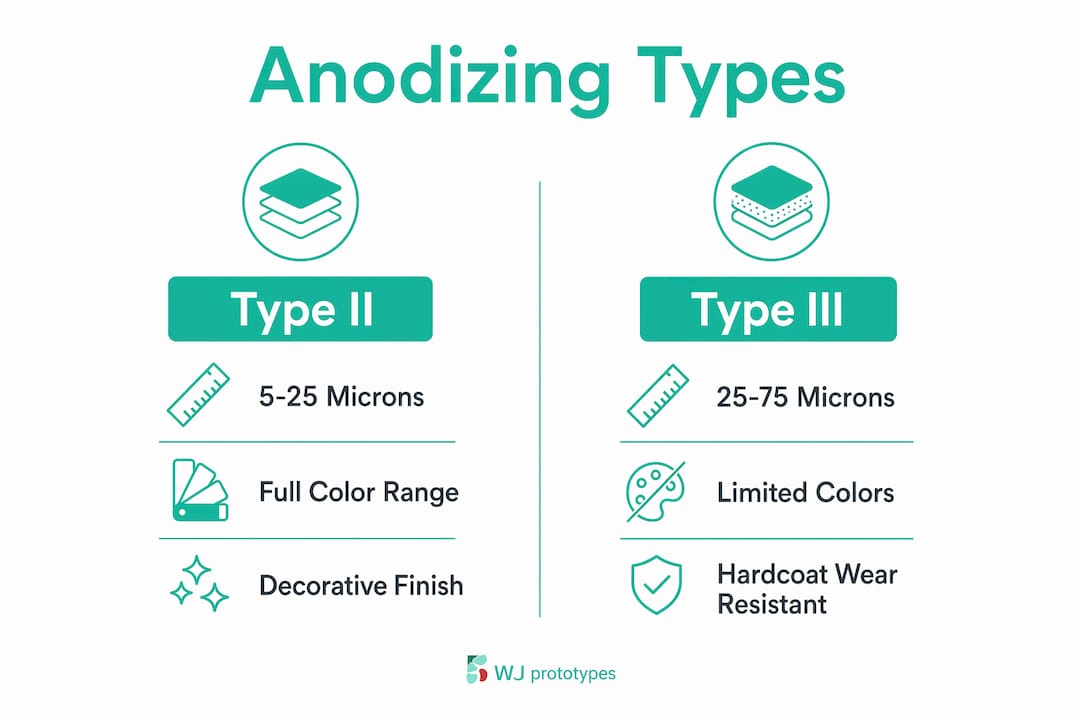

What are the main anodizing types and their impact on anodized color options?

Type II and Type III anodizing produce fundamentally different results in terms of coating thickness, color range, and cost. Getting this choice right at the design stage prevents costly surprises at the finishing stage.

Type II: The standard for decorative finishes

Type II anodizing uses sulfuric acid to build a coating 5–25 microns thick. That thickness range supports a wide color spectrum, from natural silver through black, red, blue, gold, and green. The porous structure at this thickness absorbs dye efficiently, which is why Type II is the go-to process for any part requiring vivid or precise color. Type II costs roughly $5–$25 per part, making it the practical choice for most consumer electronics, medical devices, and industrial enclosures.

Type III: Hardcoat with limited color range

Type III hardcoat anodizing builds a coating 25–75 microns thick. That extra thickness increases wear resistance substantially, but it also darkens the oxide layer itself. The result is that Type III limits colors to natural metallic blacks and bronzes. Bright reds or blues are not achievable with hardcoat. Type III costs two to three times more than Type II per part. Engineers specify it for high-wear surfaces like firearm components, hydraulic cylinders, and industrial tooling where durability outweighs color flexibility.

Pro Tip: Specify Type II when color accuracy is a brand or aesthetic requirement. Reserve Type III for surfaces that face abrasion, sliding contact, or harsh chemical exposure.

How does aluminum alloy selection influence anodized color quality?

Alloy chemistry is the single most overlooked variable in anodizing specifications. Two parts with identical geometry and the same anodizing process can look completely different if they are made from different alloys.

The best results come from the 6000 series. 6061-T6 and 6063 are the most widely specified alloys for consistent, vivid anodized finishes. Their low copper and silicon content allows the oxide layer to form uniformly, which means dye absorbs evenly across the entire surface. This is why 6063 dominates architectural extrusions and 6061 dominates machined structural parts.

High-copper alloys like 2024 and 7075 create real problems. Copper-rich intermetallic particles in these alloys resist oxidation, leaving dark smudges or a mottled appearance in the finished part. Cast alloys with high silicon content produce similarly uneven or grayish finishes. These alloys are not suitable for bright or vivid anodized color options without significant process modifications.

Batch consistency matters beyond just alloy grade. Using the same alloy batch across a production run is critical for color uniformity. Even within 6061, different mill runs can produce subtle shifts in color if the anodizing process is not tightly controlled. For color uniformity across batches, specify alloy temper, supplier, and mill certificate alongside the anodizing standard on your technical drawings.

• 6061-T6: Best all-around choice for machined parts requiring consistent color
• 6063-T5/T6: Preferred for extrusions and architectural profiles with vivid finishes
• 5052: Acceptable for moderate color results; slightly less vivid than 6000 series
• 2024, 7075: Avoid for decorative anodizing; use only where mechanical properties override finish requirements
• Cast alloys (A380, A356): Not suitable for standard decorative anodizing

Pro Tip: When alloy selection is constrained by mechanical requirements (such as 7075 for high-strength aerospace brackets), inform your anodizing supplier early. They can adjust bath chemistry and current density to partially compensate, but color vibrancy will still be reduced.

What are common anodized color options and surface finish styles?

The anodizing colors process produces a defined palette rather than unlimited custom colors. Natural anodizing yields a bright silver metallic finish with no dye added. It is the cleanest option when the goal is aesthetic clarity or a raw aluminum look. Dyed anodizing expands the palette to include black, red, blue, gold, bronze, and green as standard offerings from most anodizing shops.

Common anodized color options and their typical industrial applications break down as follows:

Surface texture before anodizing determines the final visual character of the part. A polished surface produces a glossy, mirror-like anodized finish. A brushed surface produces a satin finish with visible grain lines. Bead blasting creates a uniform matte texture that hides machining marks and gives a consistent appearance across complex geometries. Sandblasting produces a coarser matte finish with more visible texture.

The choice of pre-anodizing surface treatment is not cosmetic. Anodizing highlights existing surface defects rather than concealing them. A machining mark that is barely visible on raw aluminum becomes clearly defined after anodizing. This is why surface preparation is a line item on technical drawings for any part where appearance matters. Specifying "bead blast to 120 grit before anodizing" produces a predictable, repeatable result. Leaving surface prep undefined produces variable results across batches.

The benefits of anodized colors extend beyond appearance. The oxide layer adds corrosion resistance, electrical insulation, and a hard surface that resists scratching. These functional properties make anodized aluminum finishes a practical choice for parts that face both aesthetic and environmental demands. For designers working on surface finishes in prototyping, anodizing often delivers the best combination of visual quality and functional performance.

What practical considerations should engineers know when specifying anodized colors?

Specifying anodized finishes correctly requires more than choosing a color from a swatch card. The following considerations prevent the most common and costly mistakes.

1. Define surface preparation on the drawing. Anodizing does not hide machining marks, scratches, or porosity. Surface defects remain visible and are often intensified after anodizing. Specify polishing, brushing, or bead blasting as a required pre-process step on your technical drawing, not as a verbal instruction.
2. Specify alloy and temper explicitly. Do not leave alloy selection to the machine shop. Write "6061-T6 per AMS 2770" or equivalent on the drawing. Alloy substitutions made without your knowledge will change the final color, sometimes dramatically.
3. Use physical color samples, not digital swatches. Screen colors do not represent anodized finishes accurately. Request anodized color samples on the actual alloy you are using before approving a production run. Color appearance shifts between alloys and even between batches of the same alloy.
4. Control batch size for color consistency. Anodizing tanks have limited capacity. Parts anodized in different tank loads can show visible color variation even with identical process parameters. For production runs where color matching is critical, specify that all parts must be processed in a single tank load, or establish a color tolerance standard using a reference sample.
5. Communicate anodizing type and thickness in writing. "Anodize per MIL-A-8625 Type II, Class 2, black dye" is a complete specification. "Anodize black" is not. The MIL-A-8625 standard defines Type II and Type III requirements and is the most widely recognized reference for anodizing specifications in North American manufacturing.
6. Account for dimensional change. Anodizing adds material to the surface. Type II adds roughly half the coating thickness as growth above the original surface. A 20-micron Type II coating grows the surface by approximately 10 microns per side. For tight-tolerance features like bores and threads, mask or machine after anodizing.

Pro Tip: For material selection in prototyping, always anodize a prototype part before finalizing production drawings. The prototype run reveals surface prep gaps, alloy issues, and color inconsistencies before they affect a full production batch.

Key Takeaways

Anodized color quality depends on three controllable variables: anodizing type, alloy selection, and surface preparation, and all three must be specified explicitly on technical drawings.

Why I treat anodized color as a process decision, not a finish decision

Most specification errors I see come from treating anodized color as a cosmetic afterthought. The color gets chosen late, the alloy is already locked in, and the surface prep is whatever the machine shop left behind. Then the parts come back looking nothing like the approved sample, and everyone is surprised.

The reality is that anodized color is determined before the part ever reaches the anodizing tank. Alloy choice, machining strategy, and surface prep collectively set the ceiling on what the anodizing process can achieve. A skilled anodizer working with poorly prepared 2024 aluminum cannot produce the same result as an average shop working with properly prepared 6061.

The other mistake I see consistently is relying on digital color references. I have watched engineers approve a "red" anodize from a PDF swatch and receive parts that look burgundy in production lighting. Physical samples on the actual alloy, reviewed under the actual end-use lighting conditions, are the only reliable approval method.

My recommendation is to treat the anodizing specification the same way you treat a tolerance callout: define it completely, reference a standard, and verify it with a physical sample before releasing to production. The finishing decisions made in prototyping set the template for everything that follows. Get them right early, and production becomes predictable.

— Nas

WJ Prototypes CNC machining with anodized aluminum finishes

WJ Prototypes delivers CNC machined aluminum parts with Type II color anodizing as a standard finishing option, with particular strength in 6000 series alloys where color consistency and surface quality are critical.

Engineers working on prototypes or low-volume production runs can specify alloy, anodizing type, color, and surface prep directly through the WJ Prototypes quoting platform. The team reviews material and finish requirements before production begins, which prevents the alloy and surface prep mismatches that cause color failures. WJ Prototypes' CNC machining materials page details available aluminum grades, anodizing options, and finish specifications for both prototype and production parts. For teams that need fast turnaround on anodized aluminum components, WJ Prototypes also offers CNC machining services with global delivery.

Get FREE DFM & Quote

Explore competitive Aluminum Fabrication Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

FAQ

What is the difference between Type II and Type III anodizing for color?

Type II anodizing supports a full color spectrum including black, red, blue, and gold, with a coating thickness of 5–25 microns. Type III hardcoat anodizing is thicker (25–75 microns) and limits colors to natural blacks and bronzes due to the density of the oxide layer.

Which aluminum alloy gives the best anodized color results?

6061-T6 and 6063 are the best alloys for consistent, vivid anodized finishes. High-copper alloys like 2024 and cast alloys with high silicon content produce mottled or uneven colors and are not suitable for decorative anodizing.

Can anodizing hide surface defects or machining marks?

Anodizing does not hide surface defects. It reproduces and often intensifies machining marks, scratches, and porosity, which is why surface preparation such as bead blasting or polishing must be specified before anodizing.

How do I specify anodized color correctly on a technical drawing?

Reference MIL-A-8625 Type II or Type III on the drawing, specify the color and dye class, and include the required surface preparation step. A complete callout reads: "Anodize per MIL-A-8625 Type II, Class 2, black dye, bead blast before anodizing."

Does anodizing change part dimensions?

Type II anodizing adds approximately half the coating thickness as dimensional growth above the original surface. A 20-micron coating grows the surface by roughly 10 microns per side. Mask or post-machine tight-tolerance features like bores and threads to maintain dimensional accuracy. For color-matched parts, also consider anodizing a reference alloy sample to verify finish consistency before full production.
