Sheet Metal Sourcing in China: Managing ISO 2768 Coarse Risk

2026-08-30 09:31:39

When your drawing specifies ISO 2768 coarse tolerances, your first move is to identify every functionally critical feature and give it its own callout before the file ever reaches a Chinese factory floor. That means mating holes, bend-critical flanges, and assembly faces get explicit numbers; everything else can ride on the general note. Lock First Article Inspection (FAI) and acceptance criteria into the purchase order at the same time. Skip either step and you're gambling on how a supplier's engineering team interprets "coarse," and that interpretation rarely matches yours.

Mark every mating dimension, hole pattern, and bend-critical flange with its own tolerance.
Require an FAI report before production release, not after shipment.
Name WJ Prototypes or a comparably documented supplier that already runs CMM inspection and material certification as standard practice.

Pro Tip: Treat "coarse" as a placeholder, not a spec. If a feature's function depends on fitting something else, it needs its own number, no exceptions.

Key Takeaways

Coarse tolerance notes only work when every functionally critical feature carries its own explicit callout and the supplier can prove FAI and inspection capability before production starts.

Point	Details
Callout critical features individually	Mating holes, bend-critical flanges, and assembly faces need explicit tolerances, not the general note.
Expect real-world drift	Deviations of 0.5 to 2.0mm on uncalled-out edges and holes show up often enough to plan for.
Qualify suppliers on paperwork	Require FAI reports, CMM data, calibration records, and material certificates before ordering.
Build FAI into contracts	Mandatory sign-off, hold-release shipment terms, and rework responsibility belong in the purchase order.
Choose a documented partner	WJ Prototypes runs standard FAI, CMM inspection, and ISO-certified processes to reduce coarse-tolerance risk.

What Happens When You Leave Sheet Metal Sourcing in China to Coarse Tolerances Alone

A coarse tolerance note tells a supplier "use your standard process capability." Different shops, different equipment, different standards. One factory's press brake calibration drifts differently than another's, and a general note gives them permission to fill that gap however they see fit.

The real-world result: bend angles walk during forming, hole positions shift after welding, and flat panels bow slightly under their own residual stress. None of that violates the coarse tolerance class on paper. It still means your bracket doesn't bolt up.

Deviations in the 0.5 to 2.0 millimeter range on edge and hole locations show up often enough in sourcing case notes to be treated as a known risk, not a rare fluke. When a factory's engineering team gets a drawing with minimal callouts, they fill in blanks with their own defaults, and those defaults don't always match what you had in mind.

Relying solely on a general coarse note without individual feature callouts is one of the most common ways buyers end up with unusable parts. It's rarely a quality failure on the supplier's part; it's a specification failure on the drawing.

Manufacturer-specific interpretation of vague notes leads to inconsistent results across vendors.
Dimensional drift during bending and welding compounds when nothing pins the final geometry down.
Documentation gaps, often made worse by translation, leave QA teams guessing at your real intent.

When Is Coarse Tolerance Fine, and When Does It Bite You?

Coarse tolerances work well for features nobody ever measures against another part. They fail fast on anything that has to fit, align, or bear load against something else.

Non-mating surfaces and cosmetic panels. Large flat faces with no fastening or sealing function can usually stay on the general note.
Holes and bolt patterns. Anything that lines up with a mating part, a fastener, or another assembly needs its own position and diameter tolerance.
Bend lines and flange lengths. Forming operations introduce spring-back that varies by material and thickness, so critical bend angles deserve explicit callouts.
Thin, unsupported features. Long flanges and thin webs distort during handling and welding far more than the general class accounts for.
Part size itself matters. Suppliers commonly follow size-scaled practices similar to ISO 2768-mk conventions, where allowable deviation grows with nominal dimension, so a coarse note on a large panel behaves very differently than the same note on a small bracket.

Pro Tip: Prioritize callouts by function, not by how complicated a feature looks on paper. A simple hole that has to align with a motor mount matters more than an elaborate bend that nothing else touches.

Building a Drawing Checklist That Chinese Suppliers Can't Misread

Your drawing is the contract before the contract. If it leaves room for interpretation, someone will interpret it in whatever way is fastest for them to build.

Work through this order of priority before you release the file:

Critical mating dimensions, called out with explicit tolerance values, not left to the general note.
Hole positions and diameters for anything that receives a fastener or aligns with another part.
Flatness or coplanarity requirements on faces that seal, stack, or bolt against another surface.
Bend radii and the K-factor assumptions your design depends on.
Material thickness and grade, stated with the standard designation your supplier will recognize.
Finish or coating callouts, since plating and painting add dimension that a coarse note won't capture.
Zones prone to weld distortion, flagged for post-weld measurement rather than assumed stable.

A short note like "Ø6.5 H9, position tolerance 0.1mm true position, critical for fastener alignment" removes any doubt about intent. Compare that to a bare general tolerance class sitting alone on the title block, and it's obvious which one a factory can actually build to.

A drawing that clearly separates what must fit from what can vary lets suppliers quote and build with confidence instead of guessing at your priorities.


Pro Tip: Add one line to every drawing: "FAI required prior to production release; critical dimensions per callout, all other features per ISO 2768 coarse." That single sentence resolves most ambiguity disputes before they start. Buyers who provide complete drawings and inspection requirements upfront consistently get quotes that are easier to compare and results that match expectations. For engineers who want a refresher on tolerance fundamentals before finalizing callouts, this tolerance guide breaks down the underlying logic.

How to Qualify a Chinese Sheet Metal Supplier for Tolerance-Sensitive Parts

Not every shop that quotes fast can hold the line on features you've called out as critical. Qualification is where you find out before you commit tooling money and lead time to the wrong partner.

Ask for evidence of these capabilities before you place an order:

In-house bending and pressing capacity sized for your part's thickness and length.
Documented tooling experience with parts of similar geometry, not just similar material.
Welding processes paired with stress-relief steps for assemblies prone to distortion.
A track record running low-volume orders without requiring full production tooling minimums.

Then request the paperwork that proves it:

CMM inspection capability, or at minimum calibrated gauges and calipers with calibration records.
FAI or sample inspection reports from a comparable past job.
An equipment list showing press brake tonnage, laser or punch capacity, and welding stations.
Material certificates (MTCs) confirming grade and thickness match your specification.
Case studies or photo evidence from prior projects, ideally in your part's size range.

A supplier that can't produce an FAI report on request, or hesitates when asked for calibration records, is telling you something about how they'll handle a coarse-tolerance dispute later. Reviewing a documented sheet metal fabrication workflow before you commit gives you a benchmark for what a well-run qualification process looks like.

What Should Your Inspection Plan Cover for Coarse-Tolerance Parts?

Your QC plan doesn't need to be elaborate. It needs to check the right things in the right order, every time.

Measure every feature you called out individually first: critical holes, mating faces, bend angles.
Measure secondary, non-critical dimensions next, using the general tolerance class as the acceptance band.
Record results against a go/no-go gauge or CMM report, not a visual check alone.
Flag anything outside its called-out tolerance for immediate hold, before the run proceeds.

For runs under 100 pieces, a sample of 5 to 10 parts covering the first and last units off the line usually surfaces process drift early enough to correct it. Instruments should match the tolerance class: calipers and gauges for coarse features, CMM for anything with a true-position callout.

Require FAI sign-off before full production release.
Tie pass/fail criteria directly to your critical-feature callouts, not the general note.
Include a written rework clause: nonconforming critical dimensions get corrected or replaced at the supplier's cost before shipment.

Pro Tip: Ask for FAI photos taken next to a calibrated gauge in frame, not just a spreadsheet of numbers. It's a small ask that catches a surprising number of fabricated reports. Suppliers who already run documented QC processes tend to hand this evidence over without friction, which itself tells you something about how they operate.

Does Loosening Tolerances Actually Save You Money?

Sometimes. A coarse tolerance on a non-critical panel genuinely reduces cost and lead time, since the supplier isn't holding a tighter process than the part needs. The trap is assuming that logic extends to every feature on the drawing.

When a critical feature gets left on the general note and fails at assembly, you're paying for the original run, an expedited reshipment, and the schedule slip, often all three at once. That's a worse outcome than paying slightly more upfront for a tighter callout on the features that matter.

Mandatory FAI sign-off before production release, written into the purchase order.
Hold-release terms so shipment doesn't happen until critical dimensions clear inspection.
Explicit acceptance criteria tied to your callouts, not the supplier's internal standard.
Agreed remediation responsibility (who pays for rework) stated before the first article ships.

Build FAI time into your lead-time estimate from day one, not as a buffer you hope you don't need.
Budget contingency for one rework cycle on any part with tight mating requirements.
Confirm logistics terms, including who covers expedited freight if a reshipment becomes necessary, a detail worth nailing down using an import process guide before goods are in transit.

What the Coarse Tolerance Debate Gets Wrong

Most advice on this topic treats ISO 2768 coarse as a technical detail to configure correctly. It isn't. It's a risk signal that tells you where a supplier's default judgment will fill in for your engineering intent, and that judgment is shaped by whatever factory happens to win your quote.

The conventional fix, "just specify tighter tolerances everywhere," is expensive and unnecessary. Most features on a sheet metal part genuinely don't need it. The gap in most sourcing failures isn't tolerance discipline in general. It's the handful of features nobody bothered to call out individually because the drawing looked "close enough."

If you take one thing from this guide, prioritize ruthlessly. Spend your callout budget on mating holes, bend-critical flanges, and anything that touches another part. Leave everything else to the general note and stop second-guessing it. Then spend your qualification effort on suppliers who can prove, with actual FAI reports and calibration records, that they'll hold the line you drew. Paperwork you never asked for is paperwork a supplier never had to produce, and that's usually where the real risk was hiding all along.

How WJ Prototypes Reduces Coarse-Tolerance Risk on Your Next Run

WJ Prototypes gives procurement and engineering teams what a coarse tolerance note alone can't: engineers who translate functional intent into factory work instructions before the first part gets cut, backed by documented FAI, CMM inspection, and material certification as standard practice rather than an upsell.

Request these specifically when you submit a drawing:

Sheet metal fabrication with individual feature-level callouts honored as written.
First Article Inspection reports before production release, not after shipment.
Sample inspection reports and material certificates (MTCs) matched to your specified grade.
CMM measurement data for critical mating dimensions and hole positions.

WJ Prototypes holds ISO certification, runs a documented FAI process on every qualifying order, and maintains on-site inspection equipment with case studies across aerospace, automotive, and industrial machinery clients. Browse CNC machining materials if your assembly mixes sheet metal with machined components, or submit your drawing directly for an instant quote and FAI plan tailored to your critical features.

Sources

FAQ

What Does ISO 2768 Coarse Mean for Sourcing Risk?

It means the supplier applies their own general process tolerance to any feature you didn't call out individually, which creates room for interpretation on anything critical to fit or function.

How Much Deviation Should I Expect on Uncalled Features?

Industry sourcing reports document deviations in the 0.5 to 2.0 millimeter range on edges and hole locations left to a general coarse note.

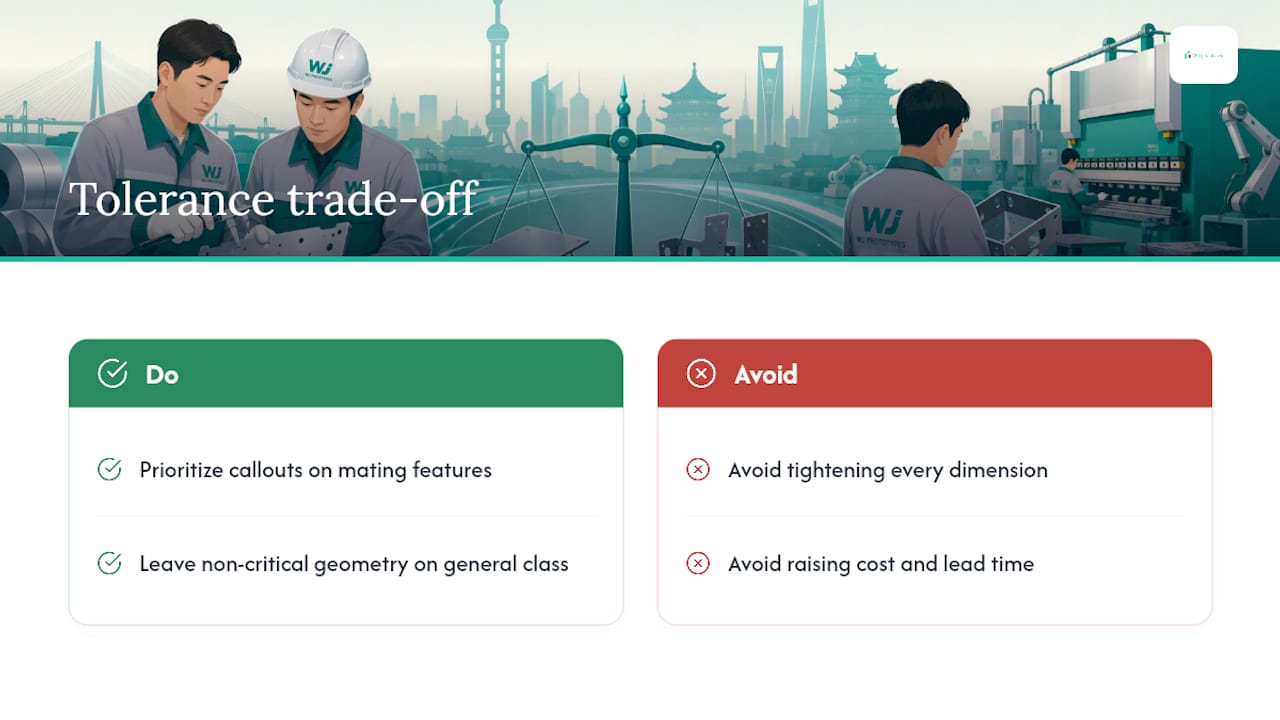

Should I Just Specify Tight Tolerances on Everything?

No. Tightening every dimension raises cost and lead time without benefit; prioritize callouts on mating features and leave non-critical geometry on the general class.

What Should I Require Before Approving a Sample Run?

Require an FAI report with measurements against your critical callouts, ideally supported by CMM data and photos taken alongside calibrated gauges.

Can WJ Prototypes Handle Coarse-Tolerance Drawings Reliably?

Yes. WJ Prototypes runs FAI and CMM inspection as standard practice and works directly with engineering teams to translate functional intent into feature-level callouts before production.
