Specifying EMI Shielding: Coatings vs. Compounds in China

2026-08-29 22:36:40

Choose a molded conductive compound when you need thin, integrated, durable shielding for miniaturized 5G or IoT parts. Choose a conductive coating when you need the highest shielding effectiveness on a low-volume or cosmetic housing without tooling investment. That is the whole decision in one sentence, but the details determine whether your part passes FCC Part 15 testing or gets sent back from the lab.

Specifying EMI shielding in China comes down to three factors, and any competent supplier, including WJ Prototypes, will ask about them before quoting:

Target SE and frequency band — a 30 dB target at 1 GHz is a different material problem than 60 dB at 28 GHz mmWave.
Part geometry and volume — thin walls, deep ribs, and high unit counts push toward molded compounds; low volume and complex curves favor coatings.
Durability and environment — salt spray, abrasion, and thermal cycling requirements change which coating stack or filler system survives the product's service life.

Key Takeaways

Molded conductive compounds suit thin, high-volume, miniaturized parts, while plated or vacuum-metalized coatings suit low-volume, high-SE, or cosmetically sensitive housings.

Point	Details
Match material to frequency	Sub-6 GHz IoT typically needs 30 to 40 dB; mmWave and regulatory-critical parts often need 50 to 70 dB.
Compounds win at volume	Once application labor, masking, and scrap are counted, compounds can beat coating costs at 10,000 to 100,000 units.
Specify the test method	Name ASTM D4935 or IEEE Std 299 explicitly so coupon and full-part results aren't confused.
Qualify Chinese suppliers on traceability	Require ISO 9001 documentation, filler batch records, and coupon test data before scaling production.
WJ Prototypes covers both routes	ISO certified molding, plating, and finishing let you sample both a compound and a coated part before locking tooling.

How Coatings Are Applied vs. How Compounds Are Made

A coating is a surface treatment. A compound is a material property baked into the part itself. That distinction drives everything downstream, from cycle time to how the part fails five years from now.

Coating processes include conductive spray or paint, vacuum metalizing (PVD), electroless plating, and electroplating. Each needs surface preparation, masking of non-shielded zones, and fixturing to hold parts during the deposition step. Vacuum metalizing produces a uniform thin film well suited to high-frequency work, but chamber size limits part dimensions and batch throughput. Electroplating, often a copper-nickel stack, delivers the highest durability and shielding effectiveness for demanding applications, at the cost of a multi-step wet-chemistry line.

Compounds work differently. A conductive filler, nickel-coated graphite, stainless-steel fiber, CNT, or graphene nanoplatelets, gets compounded into a thermoplastic resin and processed through standard injection molding materials and equipment. There is no secondary operation.

That has real manufacturing consequences:

Coatings add a process step and scrap risk (poor adhesion, masking failures) but need no new tooling.
Compounds require tooling investment up front but integrate shielding into a single molding cycle.
Thin walls and deep ribs are harder to coat evenly than to mold, since spray and plating both struggle with shadowed geometry.

What Determines Shielding Effectiveness in a Spec

Shielding effectiveness, or SE, measures in decibels how much electromagnetic energy a material blocks. Higher dB means more attenuation, and the number you need depends entirely on frequency and application. Most IoT modules need somewhere in the 30 to 40 dB range. mmWave 5G components and regulatory-critical equipment often demand 50 to 70 dB, a substantially harder target that narrows your material options fast.

Shielding works through two mechanisms: reflection and absorption. Metal fillers and metal coatings reflect incident energy at the surface, which is efficient but can bounce interference into nearby components. Magnetic alloys absorb energy and convert it to heat, useful when reflection would cause secondary problems. Carbon materials, MXenes, and CNT networks tend to offer broadband absorption across a wider frequency range, which matters when a device operates across sub-6 GHz and mmWave bands simultaneously.

Your spec should name a test method, not just a dB number:

ASTM D4935 for planar material samples.
IEEE Std 299 for full-enclosure shielding measurements.
Compliance targets under IEC 61000 and FCC Part 15 for the finished product.

A coupon test and a full-enclosure test can produce different numbers on the same material, so specify which one your acceptance criteria reference.

Which Materials Actually Perform Best

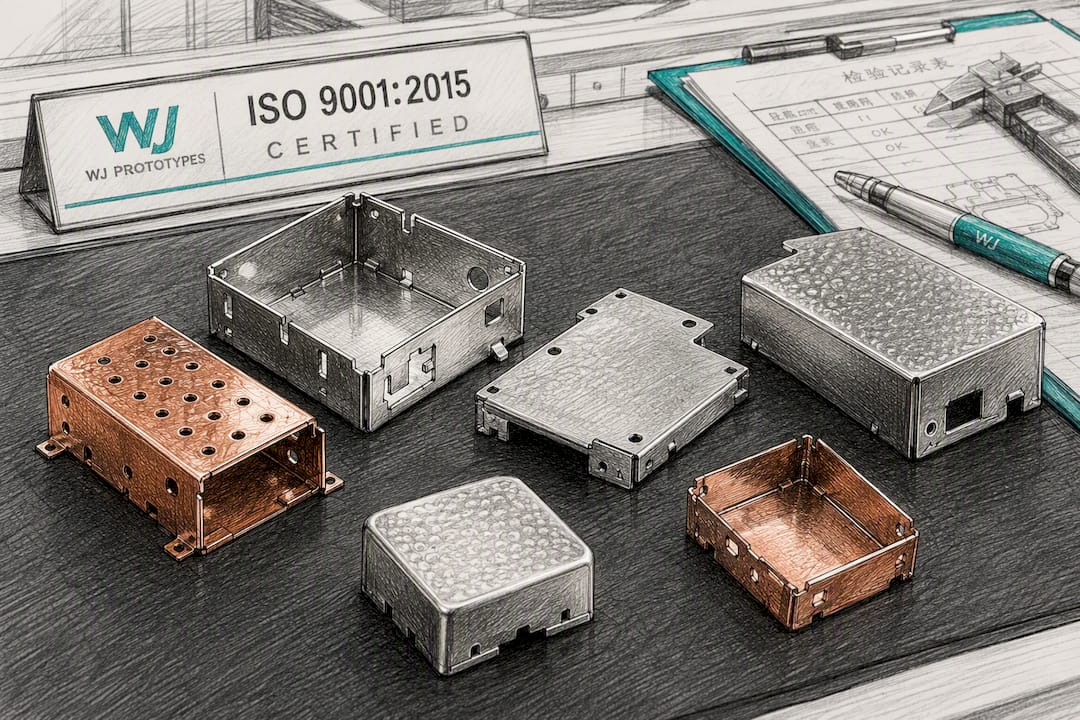

Metal coatings, copper, nickel, and silver, remain the benchmark for raw conductivity. Copper offers excellent SE at low cost but oxidizes without a protective topcoat. Nickel resists corrosion better and is common as a top layer over copper. Silver delivers the highest performance and highest cost of the metal coating family, typically reserved for premium or space-constrained applications where every micron of thickness counts.

On the compound side, nickel-coated graphite and stainless-steel fiber dominate by value because they hit solid SE numbers at manageable filler loading. Carbon nanotubes and graphene nanoplatelets need lower loading to reach the percolation threshold (the filler concentration where the material becomes conductive), which helps keep parts lightweight, but dispersion is harder to control in production. MXenes, a newer 2D material family like Ti3C2Tx, show some of the highest SE values in review literature, though commercial-scale compounding is still maturing. Intrinsically conductive polymers like polyaniline and polypyrrole trade raw conductivity for corrosion resistance and multifunctional properties, useful in coatings exposed to humidity or chemical environments.

Product scenario	Material family that tends to win	Thickness impact	Durability profile
Miniaturized IoT enclosure	Hybrid carbon/nickel-graphite compound	Minimal, integrated into wall	Good, no adhesion failure mode
High-dB mmWave module	Plated metal stack or metal-filled compound	Coating adds thin surface layer	High if properly sealed
Automotive ECU housing	Metal die-cast or heavy metal-filled compound	Often thicker wall by design	High, built for thermal cycling

Oxidation, RoHS chemical restrictions, and magnetic filler behavior at high frequency all affect which formulation survives real-world use, not just a lab coupon test.

Building a Spec Sheet That Survives QC

A vague spec produces vague parts. Your purchase order or RFQ should state, at minimum, a target SE by frequency band, the exact test standard, and whether testing happens on a coupon or the finished enclosure. Add environmental durability requirements: salt spray hours, abrasion cycles, and thermal cycling range, since a coating that passes SE testing on day one can delaminate after 200 thermal cycles.

For coatings, specify adhesion rating (commonly a cross-hatch tape test) and a wear limit under abrasion testing. For compounds, specify filler loading percentage, melt-flow index, and a minimum tensile strength, since heavy filler loading can make a resin brittle.

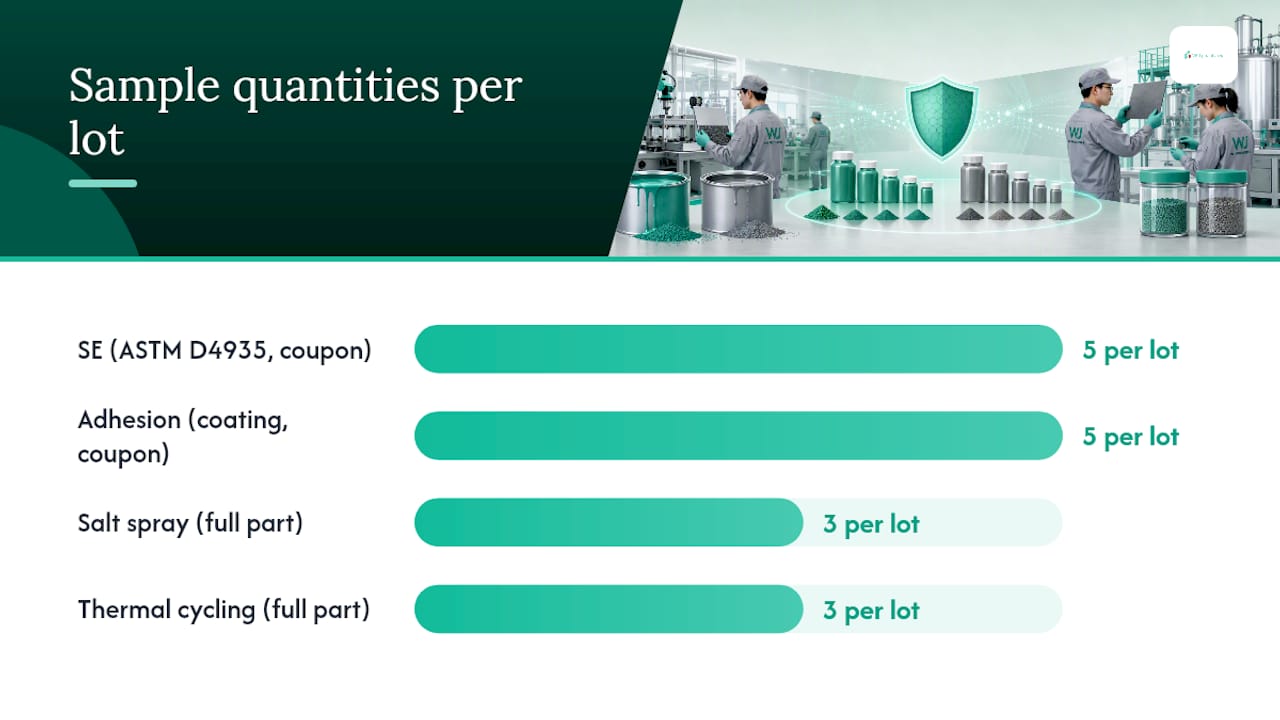

A sample acceptance table for your supplier packet might include:

Test	Sample type	Pass metric	Sample quantity
SE per ASTM D4935	Coupon	Meets dB target at specified frequency	5 per lot
Adhesion (coating only)	Coupon	No delamination at cross-hatch grade	5 per lot
Salt spray	Full part	No corrosion in salt spray testing	3 per lot
Thermal cycling	Full part	No cracking, SE retained	3 per lot

Pro Tip: Don't compare coating cost per part against compound cost per kilogram, they're not the same unit of value. A direct cost study on small ABS covers found that once you fold in coating application labor, masking, and scrap rate, compounds can end up cheaper than coatings at 10,000 to 100,000 unit volumes, even though the raw compound price per kilogram looks higher on paper.


Sourcing EMI Shielding Materials From Chinese Suppliers

Before you commit to a supplier, ask direct questions: Do they compound in-house or buy pre-compounded resin? Do they run plating and vacuum metalizing in-house, or subcontract it? What is their ISO 9001 process control documentation, and can they produce lot traceability for filler batches?

Nickel and copper are commodity metals with price swings that ripple into compound and coating cost quotes, so lock pricing terms for longer production runs. Metal-filled compounds hold roughly 55 to 60% of China's EMI shielding plastics market value, while carbon-based compounds are growing faster in volume, meaning newer carbon-filled suppliers may have less production history to draw on.

Build these clauses into your contract:

Sample retention requirement, so disputes over lot consistency have a physical reference.
Rework tolerance defining what defect rate triggers free rework versus rejection.
A warranty period on shielding effectiveness, not just cosmetic defects.

Your supplier QC checklist should require coupon test records, filler batch traceability, dispersion or melt reports for compounds, and adhesion/abrasion records for coatings on every production lot.

Pro Tip: Run a pilot batch of 500 to 1,000 units before committing to full production tooling. A pilot run surfaces dispersion inconsistency or coating adhesion problems while the fix is still cheap.

Quick Recommendations by Product Type

For a miniaturized 5G or IoT handheld sensor, specify a molded compound with a hybrid filler system, CNT combined with nickel-coated graphite works well, to hit broadband SE without adding wall thickness. For a high-dB mmWave module or a medical device housing where 50 to 70 dB is non-negotiable, a plated or electroplated metal stack usually outperforms a compound on raw SE, even with the added process complexity.

For low-volume prototyping or cosmetic consumer electronics where you're still iterating on the enclosure design, spray coating or vacuum metalizing lets you test shielding performance without cutting production tooling. That flexibility matters more than a marginal SE gain when you might revise the housing three more times before locking geometry.

What We See Go Wrong in DFM Reviews

The most common mistake in a design-for-manufacture review is locking the enclosure geometry before deciding coating versus compound. Wall thickness that works fine for a coated part often needs revision for a compound, since filler loading changes flow characteristics during molding.

Pro Tip: Request both a coated sample and a molded sample during qualification, especially where seams and gaskets need to maintain shielding continuity across a parting line. Assembly-level SE often drops at the seam, not in the material itself.

WJ Prototypes runs both routes under one ISO certified process, with injection molding, CNC-machined inserts, and finishing capability in-house, so switching mid-project doesn't mean switching suppliers.

Getting From Spec to Sample Part

Turning a shielding spec into a working sample means having both molding and finishing capability under one roof, since the fastest path to a validated part is testing a molded compound and a coated equivalent side by side rather than waiting on two separate vendors.

WJ Prototypes supports EMI shielding projects with injection molding using conductive compounds, plating and vacuum metalizing finishing, and coordination with third-party labs for IEC and FCC compliance testing. Reach out for help with:

Material selection between metal-filled compounds, coatings, and hybrid filler systems.
Pilot runs sized to validate SE and adhesion before full tooling commitment.
Lab testing coordination for SE, salt spray, and thermal cycling.
ISO 9001 quality documentation and lot traceability for production runs.

If you have a housing design that needs a shielding spec turned into real parts, get a quote on CNC machining or molded prototypes and get sample parts moving before your next design review.
