Explaining Tolerance in Manufacturing: Engineer's Guide

TL;DR:
Manufacturing tolerance defines the allowable variation in part dimensions and geometry for proper function. Choosing appropriate tolerances and measurement methods affects product quality, production costs, and scrap rates. Proper use of standards like ISO 2768 and GD&T ensures accurate inspection and minimizes unnecessary rejection.

Manufacturing tolerance is the permissible dimensional and geometric variation that allows a part to fit, function, and assemble correctly within its design limits. Every physical part deviates from its nominal dimension during production. Tolerance defines how much deviation is acceptable before a part fails to perform its intended role. Standards like ISO 2768 and Geometric Dimensioning and Tolerancing (GD&T) govern how engineers specify and communicate these limits. Measurement tools from calipers to Coordinate Measuring Machines (CMM) verify compliance. Understanding tolerance in manufacturing is not optional for engineers. It is the foundation of every quality decision made on the shop floor.

How manufacturing tolerance impacts product quality and production costs

Tolerance specification directly controls the trade-off between part quality and production cost. Tighter tolerances produce more consistent, interchangeable parts. They also demand more capable machines, slower cycle times, and more rigorous inspection, all of which raise cost.

Looser tolerances reduce machining time and tooling wear. The risk is that parts may not assemble correctly or may fail under load. A shaft and bore pair with a tolerance of ±0.5 mm will behave very differently in a precision gearbox than in a simple bracket mount. The engineer's job is to specify the loosest tolerance that still satisfies the functional requirement.

The cost impact of tolerance decisions is not linear. Tightening a tolerance from ±0.1 mm to ±0.01 mm can multiply machining cost several times over, because the process may shift from CNC turning to precision grinding with in-process gauging. That cost multiplier is why tolerance in prototyping decisions made early in product development have such a large downstream effect.

Key factors that drive the quality-cost relationship:

• Scrap rate: Tighter tolerances reduce the acceptable variation band, which increases the probability that a part falls outside limits and becomes scrap.
• Inspection burden: Tighter tolerances require more capable measurement tools and longer inspection cycles.
• Process selection: Some tolerances are only achievable with specific processes. Honing, grinding, and lapping each serve tolerance ranges that standard milling cannot reach.
• Material behavior: Thermal expansion, springback in sheet metal, and polymer shrinkage all affect the final dimension. Tolerance must account for these effects.

Pro Tip:Specify tolerances on a drawing only where they are functionally necessary. Applying tight tolerances to non-critical features is one of the most common and costly mistakes in product design.

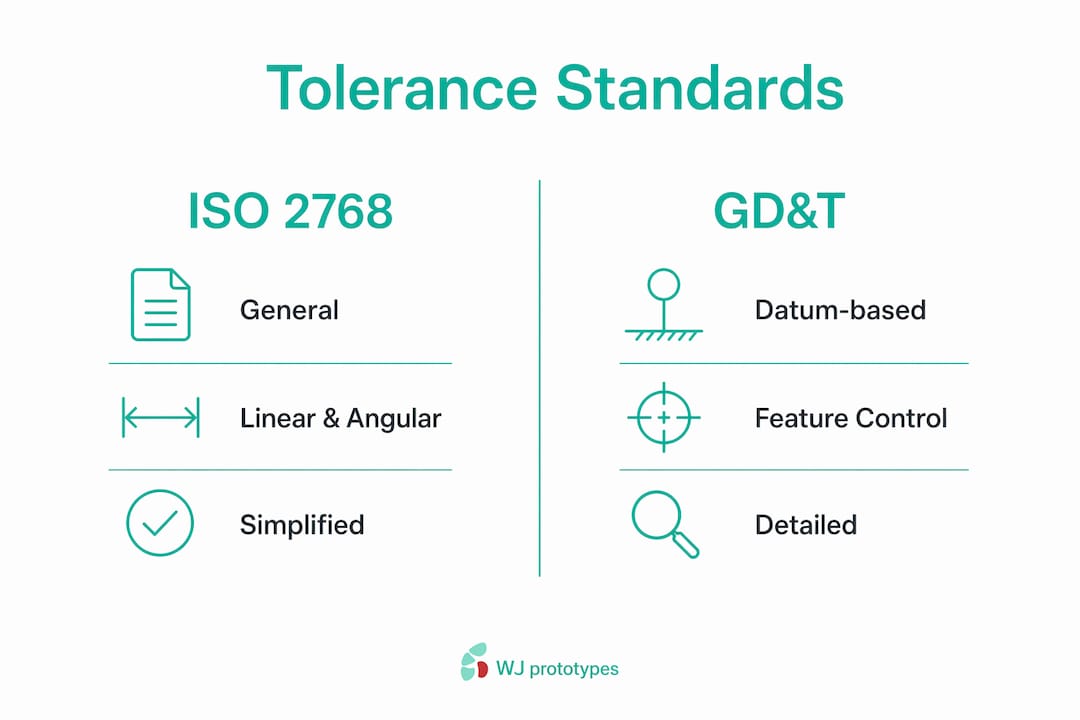

What are the main tolerance standards: ISO 2768 and GD&T?

Two frameworks dominate tolerance specification in global manufacturing: ISO 2768 and ASME Y14.5 GD&T. They serve different purposes and are often used together.

ISO 2768 defines general tolerance classes for linear, angular, and geometric features when tolerances are not explicitly stated on a drawing. It uses four classes: fine (f), medium (m), coarse (c), and very coarse (v). ISO 2768-1 covers linear and angular dimensions. ISO 2768-2 covers form, orientation, and location tolerances for untoleranced features. A single title block callout like "ISO 2768-m" applies a consistent tolerance regime across the entire drawing without annotating every dimension individually.

GD&T, governed by ASME Y14.5, takes a different approach. It specifies tolerances relative to a datum reference frame and uses symbolic controls for form, orientation, location, and runout. GD&T tolerances are explicit, feature-specific, and tied to functional requirements. A position callout with a diameter tolerance zone of ⌀0.1 mm at MMC communicates far more than a ±0.05 mm coordinate tolerance.

Pro Tip: Use ISO 2768 as your baseline for general features, then add explicit GD&T callouts only for the critical interfaces that drive fit and function. This keeps drawings readable without sacrificing control where it matters.

How to measure tolerance: inspection methods that matter

Measurement accuracy is not a secondary concern. Measurement uncertainty often limits tolerance verification more than machining precision itself. A part machined to ±0.01 mm cannot be reliably verified with a tool that has a resolution of ±0.05 mm.

The 10:1 gage accuracy rule is the standard starting point. Measurement tools must be at least ten times more accurate than the tolerance being verified. For tolerances tighter than ±0.002 inches, micrometers or higher-grade metrology replace calipers. This rule prevents the measurement system from consuming the tolerance budget before the part is even evaluated.

Gauge Repeatability and Reproducibility (Gauge R&R) studies quantify how much of the observed variation comes from the measurement system rather than the parts. Gauge R&R acceptance criteria define three zones: below 10% of tolerance variation is acceptable, 10–30% is conditionally acceptable, and above 30% is unacceptable. A measurement system in the unacceptable zone will generate false pass and false reject decisions regardless of how well the parts are machined.

"When tolerances tighten, measurement system capabilities become more critical than machining precision for ensuring reliable quality decisions."

CMMs are the standard tool for verifying GD&T callouts. CMMs measure GD&T by aligning parts to the datum reference frame and using either discrete probing or scanning depending on the feature type. Discrete probing suits defined geometric features like holes and planes. Scanning is necessary for continuous or freeform surfaces where a single probe point would give a poor approximation of the actual surface. Selecting the wrong strategy introduces error that has nothing to do with the part itself.

Critical inspection practices for reliable tolerance verification:

• Establish the datum reference frame first. Every measurement is relative to the datum. An incorrect datum setup shifts the entire coordinate system.
• Calibrate tools before each inspection session. Thermal drift and wear affect measurement accuracy over time.
• Document measurement uncertainty. Every reported result should carry an uncertainty statement so accept/reject decisions account for measurement error.
• Match tool capability to tolerance. Verify the Gauge R&R before committing to a measurement method for a new part family.

What are MMC bonus tolerance and datum shift?

Maximum Material Condition (MMC) and datum shift are two GD&T concepts that give engineers additional tolerance without relaxing design requirements. Both are frequently misunderstood and underused.

MMC refers to the condition where a feature contains the maximum amount of material. For a shaft, MMC is the largest allowable diameter. For a hole, MMC is the smallest allowable diameter. Position tolerances with MMC modifiers provide bonus tolerance that expands the allowable positional variation when the feature departs from its MMC size. Bonus tolerance equals the stated position tolerance plus the difference between the actual feature size and the MMC size. A hole at its largest actual diameter has the most bonus tolerance available. This directly reduces scrap on parts that are dimensionally acceptable but would fail a fixed-position check.

1. Identify the MMC size from the drawing tolerance for the feature of size.
2. Measure the actual feature size during inspection.
3. Calculate the departure from MMC (actual size minus MMC for a hole).
4. Add the departure to the stated position tolerance to get the total allowable position tolerance.
5. Compare the measured position deviation against the total allowable tolerance.

Datum shift occurs when datum features deviate from their MMC size, shifting the datum axis position and affecting tolerance verification results. Datum shift is permitted at MMC and LMC but is zero at Regardless of Feature Size (RFS). It effectively increases the usable positional tolerance for the controlled feature. Ignoring datum shift during inspection means rejecting parts that are functionally acceptable, which drives unnecessary scrap.

GD&T tolerances are specified relative to a datum reference frame, and the datum simulator used during inspection must replicate the drawing's datum relationships precisely. A change in fixture design or datum realization shifts the coordinate system and changes inspection outcomes even when the parts are identical. ASME Y14.5 treats datums as theoretically perfect constructs derived from actual features. Inspection fixtures must replicate this to maintain design intent.

Pro Tip: Apply MMC modifiers to position tolerances on clearance holes wherever the design allows. The bonus tolerance reduces scrap rates on high-volume runs without changing the functional performance of the assembly.

Managing measurement uncertainty is the final piece. Inaccurate measurement methods or ignored measurement uncertainty lead to false accept or reject decisions, particularly for tight tolerances. Engineers who apply MMC logic correctly but fail to account for measurement uncertainty in their CMM programs will still generate unreliable inspection results.

Key Takeaways

Manufacturing tolerance controls dimensional variation, and the choice of tolerance class, measurement method, and GD&T modifier determines both product quality and production cost.

Where tolerance theory meets shop floor reality

The gap between a tolerance callout on a drawing and a reliable inspection result on the floor is wider than most engineers expect. I have seen programs where the machining capability was excellent but the measurement system consumed nearly half the tolerance budget. The parts were good. The process looked bad. That is a measurement problem, not a manufacturing problem.

The most common mistake I encounter is treating tolerance specification and measurement planning as separate activities. They are not. The tolerance you assign on a drawing must be verifiable with the equipment available in your facility or your supplier's facility. Specifying ±0.005 mm on a feature that will be checked with a standard CMM in a temperature-uncontrolled environment is not a tolerance. It is a source of conflict.

My recommendation is to integrate measurement planning into the design review cycle, not the inspection planning cycle. By the time a part reaches the floor, the tolerance and the measurement method should already be matched. Teams that learn ASME Y14.5 and ISO 2768 together, rather than treating them as separate domains, make better decisions at every stage. The quality control practices that separate good manufacturers from average ones almost always trace back to this alignment between design intent and measurement strategy.

— Nas
