What Is Overmolding? A Guide for Product Designers

TL;DR:
Overmolding is a multi-shot injection process that creates a single part by molding a softer material over a rigid substrate, eliminating the need for adhesives or fasteners. It offers improved ergonomics, sealing, and vibration damping by creating distinct functional zones within one component, widely used across industries like electronics, automotive, and medical devices. Successful overmolding depends on compatible materials, precise design of interfaces, and early prototyping validation to ensure durable bonding and high-quality production.

If you're designing a product that needs both structural strength and a soft, grippy surface, overmolding is likely the most direct path to getting there. Overmolding is a multi-shot injection molding process that molds a second material directly over a pre-formed substrate, creating a single integrated component without glue, fasteners, or secondary assembly. For product designers and engineers, understanding this technique unlocks a new tier of functional and aesthetic control. This article covers the overmolding process, material selection, design benefits, and where you'll see it applied across industries.

Table of Contents

• Key takeaways
• What is overmolding and how does the process work
• Overmolding materials and how to choose them
• Benefits of overmolding for product development
• Where overmolding gets applied across industries
• My honest take on overmolding in engineering practice
• How WJ Prototypes supports your overmolding projects
• FAQ

Key takeaways

What is overmolding and how does the process work

At its core, overmolding takes a pre-formed substrate — typically a rigid plastic or metal part — and molds a second, usually softer material around it during a subsequent injection cycle. The result is a single integrated component that behaves mechanically as one part, not two joined pieces.

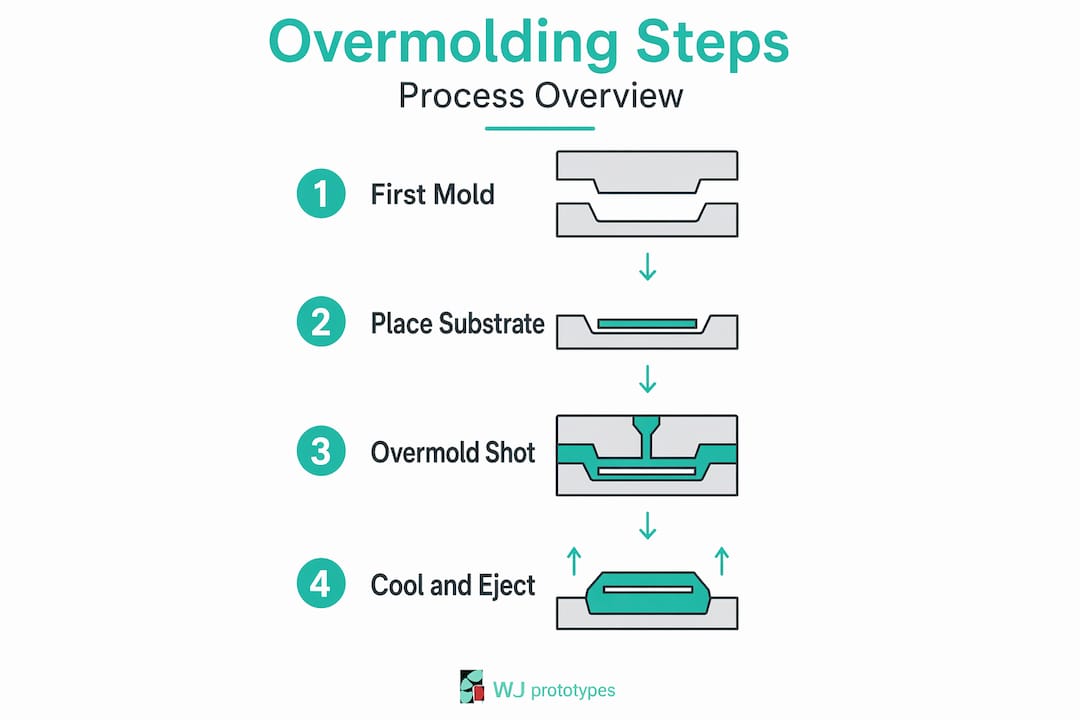

Here is how the overmolding process unfolds in practice:

1. Substrate creation. The base part is molded or machined first. In two-shot (what is dual shot molding in its most common form) or multi-shot molding, this happens in the same machine during the first shot. In insert molding, the substrate is made separately and placed into the mold manually.
2. Mold transfer or rotation. In two-shot molding, the mold rotates or indexes to a second cavity. In insert overmolding, the finished substrate is loaded directly into the overmold tooling.
3. Overmold injection. The secondary material, often thermoplastic elastomer (TPE), rubber, or a softer plastic, is injected over exposed surfaces of the substrate. Heat and pressure drive the two materials into contact.
4. Bond formation. Two bonding mechanisms can occur. Molecular bonding happens when compatible polymers fuse at the interface under heat. Mechanical bonding occurs when the overmold material flows into holes, undercuts, or surface textures on the substrate and locks in place upon cooling.
5. Ejection and finishing. The part ejects as a single unit. No secondary gluing, pressing, or fastening is required.

The elimination of secondary operations is one of the most underappreciated aspects of overmolding. Removing secondary bonding operations simplifies the assembly line and lowers per-part production cost, which compounds significantly in high-volume runs.

Pro Tip: If you're using mechanical bonding rather than relying purely on molecular adhesion, design your substrate with through-holes or geometric undercuts at the interface. These features give the overmold material something to grip mechanically, which is especially critical when the two materials don't share strong chemical compatibility.

Overmolding materials and how to choose them

The material pairing you select defines everything: bond strength, flexibility, surface feel, thermal resistance, and part longevity. Getting this wrong is the most common reason overmolded parts fail in service.

Substrate materials

Substrates are typically rigid. Common choices include:

• Engineering-grade thermoplastics such as ABS, polycarbonate (PC), polyamide (nylon), and PC/ABS blends
• Metals including aluminum, steel, and stainless steel, often used when structural load-bearing is critical
• Glass-filled plastics for applications requiring high stiffness and dimensional stability

Overmold materials

The overmold layer needs to adhere to the substrate while delivering the target surface properties. Typical options include:

• Thermoplastic elastomers (TPE) and thermoplastic rubber (TPR) for soft-touch grip and sealing
• Thermoplastic polyurethane (TPU) for abrasion resistance combined with flexibility
• Liquid silicone rubber (LSR) for medical and food-contact applications requiring biocompatibility
• Softer co-polymer grades designed to bond chemically to specific substrate resins

The compatibility of thermal and mechanical properties between the two materials is not optional. If the melt temperatures are too far apart, the overmold material may not achieve sufficient fusion. If the coefficients of thermal expansion differ significantly, the bond will crack under thermal cycling in the field.

Material science has not stood still. Henkel's recent low-pressure molding material achieves cycle times as short as 30 seconds and fills gaps as small as 0.5 mm, with dimensional stability across a range of -20°C to 140°C. For electronics encapsulation where conventional high-pressure molding risks damaging delicate PCBs, that kind of material advance changes what's feasible. A full overview of injection molding material options can help you map available resins to your specific substrate and overmold requirements.

Benefits of overmolding for product development

Designers who treat overmolding only as a cosmetic upgrade miss most of its value. The real advantages are structural and functional.

The most powerful capability is the creation of distinct functional zones within a single part. A rigid core provides structural strength while the soft outer layer handles grip, cushioning, sealing, or vibration dampening, and both perform their roles without any mechanical joining. That's an engineering outcome you simply cannot replicate with a single material.

Here's what that translates to in practical product development:

• Improved ergonomics. Soft-touch surfaces on power tools, medical devices, and consumer electronics reduce user fatigue and improve handling in wet or gloved conditions.
• Built-in sealing. Overmolded TPE gaskets around housing features eliminate separate seal components, reducing part count and leak points.
• Shock and vibration absorption. Overmolded bumpers or grips dissipate impact energy at the surface before it reaches the rigid structure.
• Reduced assembly complexity. Fewer parts means fewer assembly steps, fewer opportunities for error, and fewer components in your BOM.
• Material sustainability. Overmolding supports recycling of sprues and runners, and multi-material parts can be designed with recycling-compatible material combinations.

Pro Tip: Before committing to overmolding in a production design, check whether both materials are recyclable through the same stream. In some jurisdictions and industries, bonded multi-material parts complicate end-of-life processing. Designing for separation or selecting chemically similar materials upfront avoids a sustainability liability later.

Tighter tolerances are another benefit that often surprises engineers new to the process. Because the overmold cavity constrains the substrate geometry during the second shot, consistent part quality is achievable even in high-volume production. That matters for any assembly where the overmolded part interfaces with other components.

Where overmolding gets applied across industries

Overmolding applications appear across virtually every product category where humans physically interact with hardware. The pattern is consistent: a rigid structure that needs to be touched, gripped, sealed, or protected becomes a candidate.

1. Consumer electronics. Smartphone cases, remote controls, and wearable devices use overmolded TPE to add impact resistance and grip without adding mechanical complexity. The same approach seals port openings against moisture ingress.
2. Automotive interiors. Soft-touch door handles, gear shift knobs, and interior trim panels combine rigid plastic substrates with TPE overlays. Global TPE production exceeded 3,178 kilotons in 2025 with a projected CAGR above 6%, which reflects how deeply the automotive sector has committed to these materials.
3. Medical devices. Surgical instruments, diagnostic equipment handles, and drug delivery devices use overmolded grips for ergonomics and autoclave-compatible sealing. LSR overmolding is common here for its biocompatibility.
4. Power tools and industrial equipment. High-vibration tools use overmolded handles to isolate the operator's hand from mechanical vibration. The soft-touch surfaces improve ergonomics while the rigid core maintains structural integrity under load.
5. Electric vehicles (EVs). Battery housings, cable management components, and charging connectors increasingly use overmolded seals and strain relief features as EV platforms demand lightweight, waterproof, and vibration-resistant assemblies.

For teams working in automotive injection molding, overmolding is rarely optional at this point. It's the expected standard for any interior component a driver or passenger touches directly.

My honest take on overmolding in engineering practice

I've reviewed a lot of overmolded product failures over the years, and the pattern is almost always the same. The engineer treated it as a cosmetic decision: "We want it to feel soft, so let's add a TPE layer." The interface between the substrate and the overmold was an afterthought. That's the wrong mental model entirely.

What I've learned is that designing the interface is the real engineering work in an overmolded part. Where exactly does the overmold begin and end? What undercut geometry locks it mechanically if the chemical bond isn't sufficient? What happens to that bond at -30°C or under UV exposure for 2,000 hours? These are the questions that separate a durable overmolded product from one that peels, cracks, or delaminated in the field.

The other thing I'd push back on is waiting until late-stage design to validate overmolding feasibility. I've seen tooling get cut only to discover that the substrate shrinkage and the overmold shrinkage combined to produce a warped final part. Running a prototype through the injection molding workflow early, even with a simplified geometry, tells you far more than any simulation alone.

The future of overmolding is genuinely exciting. Low-pressure materials, bio-based TPEs, and in-mold electronics are all converging on the same idea: a single molding step that does more. But none of that matters if you don't get the material interface right first.

— Nas

How WJ Prototypes supports your overmolding projects

When your overmolding design calls for a precision substrate before the second shot, the substrate geometry has to be right. WJ Prototypes offers CNC machining with a broad selection of materials for prototype substrates, including aluminum, stainless steel, ABS, and engineering-grade plastics, that give you dimensionally accurate inserts ready for overmold tooling validation. The team works across aerospace, automotive, and medical applications where tight tolerances in substrate geometry directly affect overmold bond quality. If you need to validate your overmold design before committing to production tooling, request a quote at WJ Prototypes CNC machining services and get your substrate prototypes turned around fast.

Get An Instant Quote

Explore Competitive Overmolding Services With Expert Support From WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

FAQ

What is overmolding in manufacturing?

Overmolding is a multi-shot injection molding process where a second material is molded directly over a pre-formed substrate to create a single integrated part. It forms bonds during the molding process itself, eliminating the need for adhesives or fasteners.

How does overmolding differ from standard injection molding?

Standard injection molding produces a single-material part in one shot. Overmolding uses at least two shots or an insert plus one shot to combine two different materials, such as a rigid plastic substrate and a soft TPE layer, into one bonded component.

What materials work best for overmolding?

Common overmold materials include TPE, TPU, and liquid silicone rubber applied over rigid substrates like ABS, polycarbonate, nylon, or metal. Material compatibility in thermal and mechanical properties is the critical selection factor.

What are the main benefits of overmolding?

The primary benefits include improved ergonomics, built-in sealing, vibration damping, reduced part count, and tighter production tolerances, all achieved without secondary assembly operations.

What is dual shot molding compared to insert overmolding?

Dual shot molding (also called two-shot molding) produces both the substrate and overmold in a single machine cycle using a rotating mold. Insert overmolding molds the substrate separately, then loads it manually into the overmold tool. Dual shot molding is faster for high-volume production; insert molding offers more flexibility for low volumes and metal substrates.
