U.S. Buyers: Tight Tolerances Multiply China Sheet Metal Quotes 2–5×

2026-09-09 09:03:51


Tightening a sheet metal tolerance rarely breaks a budget by itself, but the effect is not linear. Cost vs precision in Chinese sheet metal quotes generally moves in modest steps until you cross into ultra-tight territory, where inspection, yield loss, and process capability requirements can multiply conversion costs several times over. A supplier like WJ Prototypes will typically frame this against ISO 2768 general tolerance bands and current sheet steel price pressure. Before you tighten anything, ask your supplier for their inspection scope and process capability index, known as Cpk, on that specific feature.

TL;DR:
Moving from moderate to tight tolerances can increase costs by 1.1 to 1.5 times for standard features and up to 5 times for very strict specifications.

Achieving tight bend angles or flatness tolerances on thin or special materials often significantly raises production and inspection expenses.

Suppliers should provide documented process capability data and first article inspection plans to substantiate their tolerance claims before production.

Loosening non-critical dimensions and focusing tight tolerances only on functional or assembly-fit features can substantially reduce overall manufacturing costs.

Proper classification of dimensions and clear communication of critical tolerances prevent over-specification and help avoid unnecessary cost inflation.

Cost vs Precision: How Tight Tolerances Impact Sheet Metal Quotes in China

The relationship between tolerance and price is not a smooth curve. It behaves more like a staircase with one very steep final step.

Moving from a loose commercial tolerance to a moderately tight one usually adds a manageable premium, because the shop absorbs it through slightly slower cycle times and a bit more attention at the press brake. Moving from a moderate tolerance to a truly tight one changes the entire production approach. Fixtures get custom-built, inspection stops being a spot check, and scrap that used to be invisible becomes a line item someone has to pay for.

Precision manufacturing costs rise faster than material inflation specifically because of setup, inspection, and yield, not because the metal itself costs more.

Sheet steel prices are part of the equation too. Hot-rolled coil was tracking near market prices recently, with cold-rolled and galvanized running higher, according to Steel Market Update. That baseline moves with tariffs, logistics, and mill surcharges before tolerance-driven conversion costs even enter the picture, a point Tacto's material price index tracks in more detail.

Rough multipliers to model against, not quote verbatim:

Loosening slightly to a standard commercial band: often near baseline, sometimes a small discount for volume runs.
Tightening moderately (say, from a general tolerance class down to a mid-precision band): commonly 1.1 to 1.5 times baseline conversion cost.
Tightening to a genuinely tight spec that demands fixturing and full inspection: commonly 2 to 5 times baseline, and higher for exotic materials or thin gauge stock.

Caveats that swing these numbers:

Thinner gauge material springs back unpredictably during bending, which makes tight bend angle tolerances harder to hold consistently.
A hole pattern tolerance costs less to tighten than a flatness tolerance across a large panel.
Full inspection versus statistical sampling can shift the inspection line item by a wide margin on its own.

Batch size matters as much as tolerance class. A one-time prototype run absorbs a fixture cost across a handful of parts, while a 10,000-unit production order spreads that same fixture cost to near-zero per piece. Tight tolerances hurt small batches disproportionately.

What Tolerance Standards Actually Apply to Sheet Metal?


Most sheet metal drawings should default to a recognized general tolerance standard rather than specifying every dimension by hand. ISO 2768 is the standard engineers reference most often for linear and angular general tolerances, and it exists precisely to keep designers from over-specifying dimensions that don't need tight control. ASTM standards cover material properties and testing methods that intersect with tolerance work, particularly around thickness and flatness measurement for specific alloys.

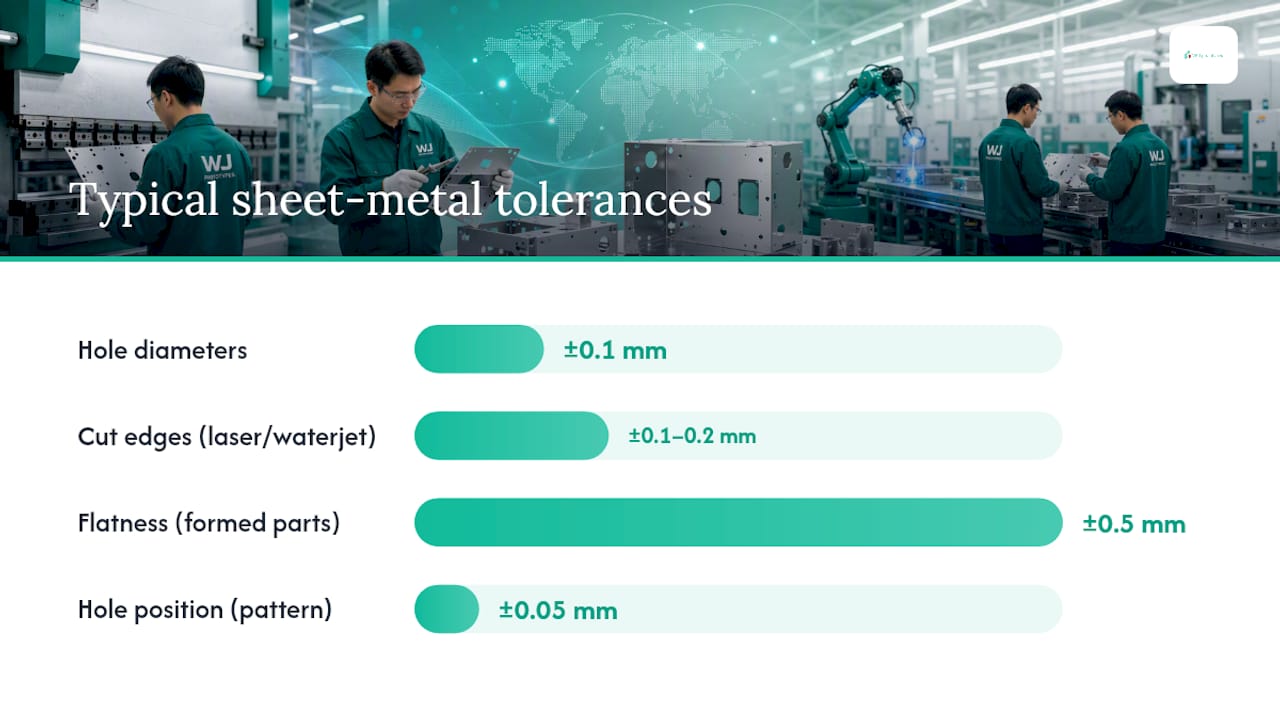

Here's what's realistically achievable across common sheet metal features, though every shop's capability varies:

Bend angles: ±0.5 degrees is common and cheap; ±0.25 degrees is achievable but adds setup time.
Hole diameters: ±0.1mm is standard for laser or turret punch work on most shops' equipment.
Cut edges (laser/waterjet): ±0.1mm to ±0.2mm is typical without extra cost; tighter than that often requires secondary finishing.
Flatness across a panel: ±0.5mm is common on formed parts; ±0.1mm usually means added stress-relief steps or a flattening operation after welding.
Position tolerances on hole patterns: achievable to roughly ±0.05mm only with CNC-controlled punching or fixtures built specifically for that part.

When a feature genuinely needs repeatable alignment across an assembly, GD&T datums communicate that intent far better than a string of individual dimensional tolerances. Use datums when parts must mate consistently across a production run; use simple linear tolerances for everything else.

How Do Tighter Tolerances Change What You're Actually Paying For?

A tolerance callout on a drawing doesn't cost anything by itself. What costs money is everything the shop has to do differently to hit it, and that breaks into four distinct buckets worth auditing on any quote.

Setup and cycle time grow first. Tighter tolerances mean slower feed rates on the laser or punch, more frequent in-process checks, and often a dedicated fixture rather than a generic clamp. Tooling wears faster too, particularly on punch dies running tight-diameter holes at volume, since dimensional drift shows up sooner and dies need reworking or replacing more often.

Inspection intensity is where costs escalate quietly. A loose tolerance might get sampled at one part in twenty. Process capability data matters more than unit price when you're comparing two quotes that look identical on paper.

Yield and scrap risk get priced into the quote as contingency, whether the supplier states it explicitly or buries it in the unit price. Ask directly who eats the cost of an out-of-spec part: if the supplier hasn't answered that question, the number in front of you may not hold once production actually starts.

Ask suppliers for these before you sign:

A written capability statement listing achievable tolerances by process, not general claims.
Recent metrology reports or Cpk data for a comparable part they've run before.
A first article inspection (FAI) plan describing what gets measured and how.
Documentation of what happens, contractually, when a part fails inspection.

Pro Tip: Negotiate the sampling plan before the first production run, not after a batch fails inspection. Ask for a reduced inspection rate once the supplier proves out three consecutive clean runs. It's a fair trade that rewards a stable process instead of paying for full inspection indefinitely.

Which Dimensions Actually Need a Tight Tolerance?

Most drawings tighten too many dimensions out of caution, not necessity. A simple classification exercise fixes this before the drawing ever reaches a quote.

Sort every toleranced dimension into one of four buckets: functional (affects how the part performs), assembly-fit (affects how it mates with another part), cosmetic (affects appearance only), or non-critical (doesn't affect fit, form, or function at all). Only the first two categories usually justify a tight number.

Once sorted, loosening the rest gets easier. Reworking a mating feature to add a small amount of adjustability, such as a slotted hole instead of a round one, often removes the need for tight positional tolerance entirely. Captive fasteners and self-clinching hardware absorb minor misalignment that would otherwise require holding a tight hole-to-hole distance.

The most common over-tolerancing mistake is applying a blanket ±0.1mm note to an entire drawing instead of calling out tight tolerances only on the two or three dimensions that actually need them. That single habit, more than any other, inflates Chinese sheet metal quotes without adding real value.

Pro Tip: Run a simple tolerance stack calculation on the full assembly before finalizing individual part tolerances. It's common to discover that a dimension you assumed needed ±0.05mm can tolerate ±0.2mm once you account for how the surrounding parts actually stack together.

How Should You Compare Quotes From Chinese Sheet Metal Suppliers?

Two quotes with the same headline price can carry very different risk once you read past the total.

Confirm the stated tolerance capability comes with evidence, not just a claim, such as a capability statement or a sample Cpk report from a similar part.
Check the inspection scope: sampling percentage, gauge calibration records, and whether a written report is included or billed separately.
Ask what yield rate the quote assumes, and who absorbs the cost if actual yield falls below it.
Verify tooling and setup fees are itemized rather than folded into a single unit price that hides them.
Confirm material spec and traceability, including mill certification, since a supplier switching to an off-spec coil to hit price is a real risk on tight-tolerance work.
Sanity-check the lead time against the tolerance class. A tight-tolerance quote with a suspiciously fast lead time usually means reduced inspection.
Get a clear allocation for packaging, freight, and duty, since these can add materially to landed cost beyond the unit price.
Include contract language that defines acceptance criteria explicitly and states who bears cost for nonconforming parts.

First article inspection reports are worth requesting on every tight-tolerance order regardless of volume. A one-page FAI report that maps measured values against your drawing's called-out tolerances catches misunderstandings before they turn into a rejected shipment.

Practical Sourcing Notes From WJ Prototypes

WJ Prototypes operates as an ISO-certified manufacturer running sheet metal fabrication in China alongside CNC machining, injection molding, and additive processes, which gives engineering teams a single point of contact when a tolerance decision on one process affects another downstream step.

A few practical proof points worth knowing before you request a quote:

Instant online quoting in some manufacturing services lets you test how tightening a single dimension changes price before committing to a drawing revision.
Inspection practice on tight-tolerance sheet metal work typically follows the documented fabrication workflow rather than an ad hoc check at final packaging.
On some prototype and low-volume projects, relaxing a cosmetic flatness callout from ±0.1mm to ±0.3mm on non-visible panel faces can reduce conversion cost without affecting the fit-critical dimensions nearby.

Author Nas has spent years covering precision manufacturing sourcing decisions, with a recurring theme: the quotes that go wrong are rarely the ones with the tightest tolerances. They're the ones where nobody defined which tolerances actually mattered before the drawing went out for bid.

How Do Tolerances Affect Lead Time and Supplier Risk?

Tight tolerances almost always extend lead time, and the reason isn't the machining itself. It's the inspection queue and the rework loop when a batch doesn't pass the first time.

A loose-tolerance job runs through a shop's normal queue with minimal disruption. A tight-tolerance job often needs a dedicated machine slot, a custom fixture built before production starts, and a first article approval cycle that adds days before full production even begins. If that first article fails, the whole schedule shifts.

Supplier risk compounds here in a way procurement teams frequently underestimate. A shop that's never held a particular tolerance on a particular material may quote confidently and still struggle in production, discovering mid-run that their equipment can't hold the spec consistently across a full batch. That's why asking for a comparable part history, not just a capability claim, matters more on tight-tolerance work than on standard jobs.

Buffer time into any tight-tolerance schedule beyond what the supplier initially proposes. A realistic buffer accounts for one failed first article and one round of corrective action, since both are common on a tolerance class a shop hasn't run recently. Suppliers who push back hard on adding that buffer, insisting their first attempt will be perfect, are often the ones underestimating their own process variation.

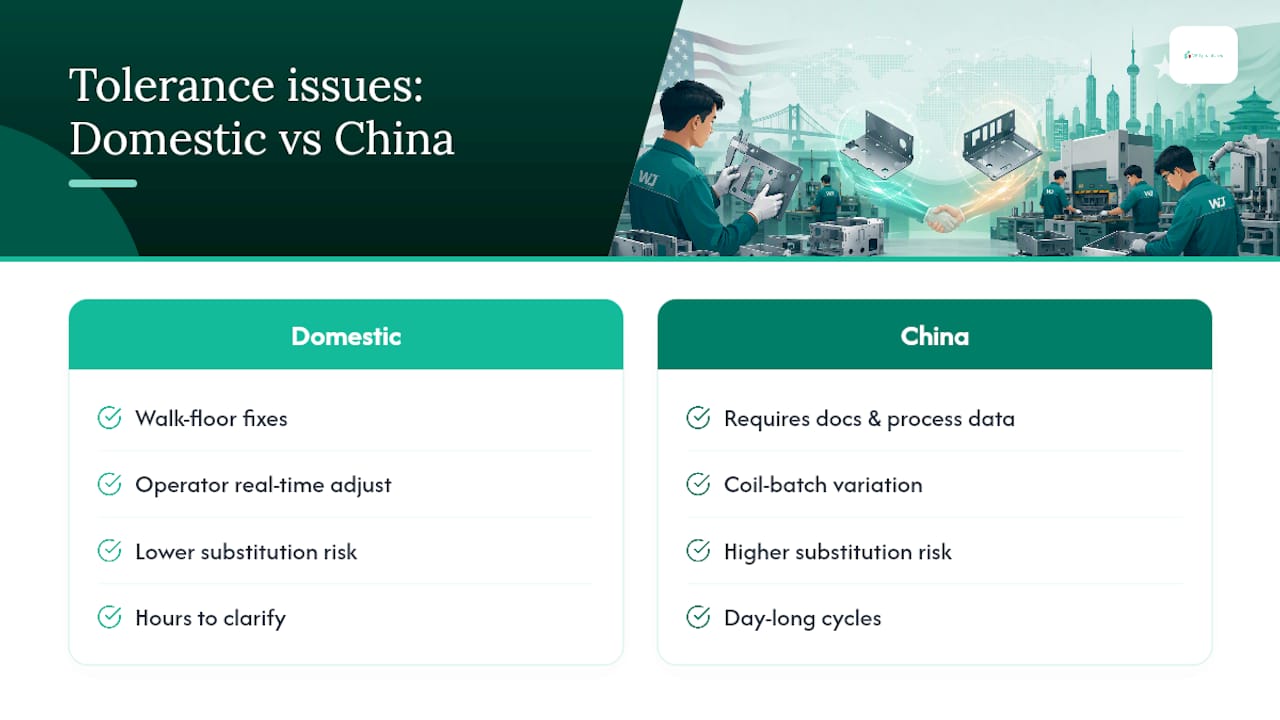

What Manufacturing Challenges Come Up With Tight Tolerances in China?

Distance changes how tolerance problems get solved. A domestic supplier lets you walk the floor when a batch runs into trouble. A Chinese supplier requires that trust get built through documentation and process data instead.

Springback variation on formed parts is one of the most common technical challenges, since different coil batches from the same nominal material can behave slightly differently under the brake, and holding a tight bend angle tolerance across batches demands the operator adjust for it in real time rather than running a fixed program.

Material substitution risk shows up more on price-sensitive tight-tolerance orders than most procurement teams expect. A supplier under margin pressure on a tight-tolerance job has more incentive to use a cheaper, technically similar alloy that behaves differently under tight dimensional control.

Communication lag on tolerance clarification adds real time. A question about an ambiguous callout that would take an hour to resolve with a domestic shop can take a full day cycle across time zones, and that delay compounds if the drawing goes back and forth more than once.

Metrology equipment access varies more than buyers assume. Not every shop capable of general sheet metal work owns coordinate measuring equipment suited to tight positional tolerances, which is exactly why asking for a specific capability statement, not a general one, matters before committing to a tight-tolerance supplier.


How Do You Optimize Tolerances for Cost Without Losing Quality?

The cheapest tolerance strategy isn't loosening everything. It's spending tightness only where it changes function.

Start by tightening the two or three dimensions that genuinely control fit or performance, and deliberately widen everything else to the general tolerance standard your drawing already references. This single move usually delivers the largest cost reduction of any strategy available, because it removes inspection burden from dimensions nobody was checking closely anyway.

Standardize on a general tolerance note, such as an ISO 2768 medium class, and only override it with specific callouts on truly critical features. Suppliers price a drawing with one general note and three tight callouts far more predictably than a drawing where every dimension carries its own individual tolerance.

Consider functional tolerancing over dimensional tolerancing where possible. Specifying that two holes must allow a specific fastener to pass, rather than specifying an exact position tolerance, gives the supplier flexibility to hit the requirement with a less expensive process.

Batch your tight-tolerance requirements into a single production run rather than spreading them across smaller repeated orders. Fixture and setup costs amortize better across one larger run than across several small ones that each pay the setup penalty from scratch.

Does Material Choice Change What Tolerances Are Realistic?

Material selection sets the ceiling on what's achievable before tolerance discussions even start. A material like stainless steel work-hardens during forming in a way mild steel doesn't, which makes holding tight bend angles harder as the material stiffens partway through a production run.

Thinner gauges amplify every tolerance challenge. A 0.5mm sheet warps and springs back more unpredictably than a 2mm sheet of the same alloy, so a tight flatness or bend tolerance on thin stock often costs noticeably more than the identical tolerance on a thicker gauge. Reviewing available sheet metal materials before finalizing a tolerance spec helps catch this mismatch early.

Aluminum alloys vary significantly in formability between grades, and a grade chosen purely for cost can make a tight-radius bend tolerance nearly impossible to hold without cracking. Mill certification and traceability matter more on tight-tolerance work generally, since a coil substitution that would go unnoticed on a loose-tolerance part can push a tight-tolerance part out of spec entirely.

Why Does Communication Clarity Matter So Much for Precision Work?

A tolerance callout that reads clearly in English can still get misinterpreted after translation, and the failures rarely show up until parts arrive.

Ambiguity around whether a tolerance is bilateral or unilateral, or whether it applies before or after a secondary process like powder coating, causes more rejected batches than any single machining limitation. Specify the measurement condition explicitly: is that flatness tolerance measured on the bare metal part, or after coating adds thickness and potential warp?

Drawings with GD&T datums communicate intent far more reliably across a language barrier than a page of individual dimensions with no reference frame, because the datum structure itself forces a shared understanding of what "critical" means on that specific part.

Confirm understanding before production starts, not after the first batch ships. A short call or written confirmation walking through the two or three critical tolerances, with the supplier repeating back their understanding, catches misinterpretation at near-zero cost. Catching it after a 500-unit batch ships costs the entire batch.

The China-Sourcing Lens: What Procurement Should Prioritize First

The conventional advice on tolerances tells engineers to specify tight and let manufacturing figure out cost later. That's backwards, and it's the single habit that inflates Chinese sheet metal quotes more than any pricing tactic a supplier could use against you.

The research here points to one clear priority: classify your dimensions before you request a single quote. A drawing with three functional tolerances clearly marked and everything else on a general ISO 2768 note will get quoted faster, cheaper, and more accurately than a drawing where every dimension carries an individually chosen tolerance nobody has actually justified.

What's overrated is chasing the tightest tolerance a supplier can technically achieve. What's underrated is asking for the boring paperwork, capability statements, Cpk reports, first article inspection plans, because that documentation predicts production reliability far better than a supplier's confidence on a sales call. A shop that hands over real process data on request is telling you something a low unit price never will.

Read tolerance decisions as risk allocation, not just a technical spec. Every tight number you write down is a question about who absorbs the cost when the process drifts. Answer that question in the quote stage, not after the batch ships.

— Nas

Get a Sheet Metal Quote That Reflects Real Tolerance Requirements

WJ Prototypes runs sheet metal fabrication with documented inspection practices and ISO-certified process control, so the tolerance decisions covered above translate directly into a quote you can actually audit, not a black-box number.

Instead of guessing which dimensions are driving your cost up, using an instant online quoting system can let you see the price difference between current tolerance callouts and a general ISO 2768 band on the non-critical dimensions. If your project also involves precision machined components, the CNC machining service in China page covers material options and quoting for parts that pair with your sheet metal assembly. Send over your drawing to get a quote that separates material cost, setup, and inspection scope line by line, so you can understand what you're paying for before committing to a production run.

FAQ

How much more does a tight tolerance cost in sheet metal?

Moderate tightening commonly increases baseline conversion cost somewhat, while ultra-tight tolerances requiring fixturing and full inspection can multiply baseline cost significantly, depending on material and batch size.

What is a standard tolerance for sheet metal?

Most sheet metal work defaults to ISO 2768 medium class general tolerances unless a specific feature has a functional or assembly-fit requirement that demands tighter control.

Why do Chinese suppliers quote such different prices for the same tolerance?

Differences usually come from inspection scope, assumed yield rate, and whether tooling and setup fees are itemized or hidden in the unit price, not from the tolerance callout itself.

Does material choice affect achievable tolerance?

Yes. Thinner gauges and certain alloys like stainless steel behave less predictably during forming, which raises the cost of holding tight bend and flatness tolerances compared to mild steel at standard thickness.

What should I ask a supplier before approving a tight-tolerance quote?

Request a written capability statement, a recent Cpk report for a comparable part, and a first article inspection plan before production begins, so you can verify the process can actually hold the stated tolerance across a full run.
