Electronics Enclosure IP Rating: Spec and Test Guide for Engineers

Choose the lowest IP rating that actually covers your exposure: IP65 or IP66 for washdown and heavy spray, IP67 for temporary immersion, and IP68 only when the manufacturer has specified and tested the exact tested depth and duration. That single decision, made against the real hazard rather than a round number, prevents both field failures and unnecessary cost. The controlling standard is IEC 60529, which defines every digit in the Ingress Protection code and the test conditions behind each one. NEMA enclosure types follow a different standard with a different scope, and the two are not interchangeable without verification.

Two things to understand before you write a single line in a spec:

• An IP rating belongs to the finished, assembled enclosure, not to a gasket, a coating, or a bare PCB. The assembled product must be tested as a whole.
• The only proof worth accepting is a test report from an accredited lab, ideally one certified to ISO/IEC 17025, showing the sample configuration, test medium, and duration.

WJ Prototypes works with engineering teams at the prototype stage to validate sealing geometry before formal lab testing, which cuts re-test cycles significantly.

Table of Contents

• What is the electronics enclosure IP rating standard?
• How to decode the first digit: solid and access protection
• How to decode the second digit: water protection levels and test conditions
• Common IP ratings for electronics enclosures and where they fit
• How IP ratings compare to NEMA enclosure types
• How to specify an IP rating when ordering an enclosure
• Limitations and common mistakes when relying on IP ratings
• How IP tests are performed and what evidence to accept
• Materials, gaskets, and sealing methods for target IP ratings
• Practical prototyping and pre-certification checks
• The part of IP specification most engineers get wrong
• WJ Prototypes helps you reach your IP target faster

Key Takeaways

Matching the IP rating to the actual hazard, then demanding test evidence for the assembled product, is the single decision that separates reliable enclosures from expensive field failures.

What is the electronics enclosure IP rating standard?

IP stands for Ingress Protection, and the code comes from IEC 60529, published in Europe as EN 60529. The standard classifies how well an enclosure resists the entry of solid objects and liquids, and it does so through a structured two-digit code: the first digit covers solids and physical access, the second covers water.

The letters in the code have defined meanings. "X" in either position means that digit was not tested, not that protection is absent. Optional suffix letters (like "H" for high-voltage equipment or "W" for weather conditions) appear in some product datasheets and carry specific meanings defined in the standard.

What the IP code is not: it is not a regulatory conformity mark on its own. Passing the tests and publishing a rating is a performance claim. The manufacturer is responsible for backing that claim with test evidence. Related standards include ISO 20653, which governs IP ratings for road vehicles and extends the water test to the IP69K (high-pressure, high-temperature jet) condition originally defined in DIN 40050-9.

NEMA, the National Electrical Manufacturers Association, publishes its own enclosure classification system under NEMA 250. NEMA types address some of the same hazards as IP digits, but the test scope differs, and a NEMA type number cannot be directly substituted for an IP code without checking what each standard actually tests.

How to decode the first digit: solid and access protection

The first digit runs from 0 to 6 and describes both the size of solid object the enclosure keeps out and the degree of protection against accidental human contact with live parts. "X" replaces the digit when solid ingress was not tested.

1. 0 — No protection against contact or solid ingress.
2. 1 — Protected against objects larger than 50 mm (roughly a hand). Prevents accidental contact with the back of a hand.
3. 2 — Protected against objects larger than 12.5 mm (a finger). The test probe simulates a finger touching internal parts.
4. 3 — Protected against objects larger than 2.5 mm (tools, thick wires). Prevents a screwdriver tip from reaching live parts.
5. 4 — Protected against objects larger than 1 mm (fine wires, small screws). A 1 mm probe must not penetrate.
6. 5 — Dust-protected. Dust ingress is not fully prevented, but the quantity that enters must not interfere with operation. Tested in a talcum-powder chamber for 8 hours under negative pressure.
7. 6 — Dust-tight. No dust ingress permitted under the same talcum-powder chamber test.

For most electronics enclosures, the practical decision sits between 5 and 6. Digit 5 is acceptable for sealed junction boxes in dusty industrial environments where a small amount of settled dust causes no harm. Digit 6 is required for precision optical sensors, connectors with fine-pitch contacts, or any electronics where even trace contamination causes failure. The test chamber uses talcum powder at a specific particle size, and the enclosure must be tested as a complete assembly, including all cable entries and fasteners torqued to spec. A gasket rated for dust-tight performance on its own tells you nothing about the assembled product.

How to decode the second digit: water protection levels and test conditions

The second digit is where most specification errors happen. Each level tests a different water hazard, and the levels are not cumulative.

IP67 means dust-tight and survives immersion in fresh water under defined test conditions typically at 1 m depth for a specified time. IP68 is manufacturer-defined: the standard requires only that conditions exceed IP67, so you must read the datasheet for the actual depth and duration tested. A product marked IP68 with no further detail is an incomplete claim.

The non-cumulative problem is critical. IP67, IP68, and IP69K test entirely different threats. An IP67-rated enclosure has not been tested against jets. An IP68 enclosure may fail a washdown test. When both hazards exist, require a dual rating: IP66/IP68 means the product passed both the powerful-jet test and the manufacturer-specified immersion test.

Three additional points engineers frequently miss:

• IEC 60529 tests use fresh water only. Salt water, hydraulic fluid, solvents, and cleaning chemicals are outside the standard's scope entirely.
• IP69K (the high-pressure hot-jet test) is governed by ISO 20653 for automotive and by DIN 40050-9 historically. The test parameters — roughly 80 bar, 80 °C, nozzle at 100–150 mm — are far more aggressive than any immersion test.
• The "X" placeholder does not mean the enclosure fails that test. It means the test was not performed. An IPX7 enclosure may or may not resist dust; you simply do not know from the rating alone.

Common IP ratings for electronics enclosures and where they fit

Matching a rating to a real deployment is faster when you know what each common level actually implies for electronics hardware.

• IP54 — Dust-protected, splash-resistant from all directions. Typical for indoor industrial controls, handheld instruments used in light rain, and consumer power tools. The lowest rating most outdoor-adjacent electronics should carry.
• IP65 — Dust-tight, low-pressure jet resistant. Standard for outdoor LED luminaires, junction boxes on building exteriors, and IoT gateway enclosures mounted under eaves. Handles a garden hose at normal pressure.
• IP66 — Dust-tight, powerful-jet resistant. Required for food-processing equipment, marine deck fittings, and outdoor panels subject to pressure washing. The step up from IP65 is meaningful: the jet volume is eight times higher.
• IP67 — Dust-tight, 1 m immersion for 30 minutes. Common for handheld field instruments, ruggedized tablets, and sensors deployed in flooded trenches or tidal zones. Practical guidance places IP67 as the right choice when temporary submersion is a credible scenario but continuous immersion is not.
• IP68 — Dust-tight, continuous immersion at manufacturer-specified depth. Used for subsea sensors, underwater lighting, and permanently submerged instrumentation. Always ask for the tested depth and duration in writing.
• IP69K — Dust-tight, high-pressure hot-jet resistant. Required for food and beverage processing lines, dairy equipment, and any enclosure subject to steam cleaning. Note that IP69K does not imply immersion resistance; a combined IP67/IP69K rating is needed when both hazards apply.

Cost and complexity scale sharply above IP66. The jump to IP67 typically requires a fully sealed enclosure with compressed gaskets or potting, which affects thermal management, repairability, and connector selection. Adding an IK impact rating alongside IP (for example, IP66 + IK08 for outdoor vandal-prone installations) is a separate mechanical test and must be specified independently.

How IP ratings compare to NEMA enclosure types

NEMA types and IP codes address overlapping but not identical hazards. The table below shows the equivalences most commonly used in practice, but treat them as starting points for verification, not substitutes.

The critical difference: NEMA 250 includes tests and features that IEC 60529 does not cover, including external icing, oil resistance, and corrosion resistance from specific coatings or materials. A NEMA 4X enclosure carries corrosion resistance as part of its classification; an IP66 enclosure does not, unless the manufacturer separately specifies the material and finish.

Going the other direction is equally risky. An enclosure that meets IP66 does not automatically qualify as NEMA 4 because the NEMA icing and corrosion tests were never performed. When a supplier quotes a cross-standard equivalence, ask for the actual test reports for both standards, not just a conversion table reference.

Three verification steps when a supplier claims cross-standard equivalence:

• Request the NEMA 250 test report, not just the IP test report.
• Confirm whether the enclosure was tested with knockouts open or closed, since NEMA tests sometimes differ on this point.
• Check that the material and finish match the corrosion-resistance requirements of the NEMA type claimed, particularly for 4X.

How to specify an IP rating when ordering an enclosure

A vague IP number in a purchase order is not a specification. Here is what a complete IP requirement looks like in practice.

Procurement checklist:

• Target IP digits for both solid and liquid protection (e.g., IP66, or IP66/IP68 for dual hazard)
• Required test standard: IEC 60529 for most applications, ISO 20653 for IP69K
• Material and finish requirements (UV stability, salt-fog resistance, chemical compatibility)
• IK impact rating if mechanical abuse is a credible hazard
• Cable gland type and IP rating of the gland itself (a gland rated lower than the enclosure is the weakest link)
• Vent requirements: breathable ePTFE vents maintain pressure equalization without admitting water, but they must be rated to match the enclosure's IP level
• Installation orientation if it affects drainage or seal compression

Required proof to attach to the PO or RFQ:

1. IEC 60529 test report (or ISO 20653 for 9K), showing sample configuration, serial numbers, fixture orientation, test medium, and duration/depth for IPX8
2. Lab accreditation certificate (ISO/IEC 17025) for the testing facility
3. For IPX8 specifically: the manufacturer's stated depth and duration, which must appear in the test report
4. Confirmation that the tested sample matches production configuration (same gasket material, same fastener torque, same cable gland model)

Sample spec snippet (adapt to your RFQ):

Limitations and common mistakes when relying on IP ratings

The rating on a datasheet describes a test result under controlled laboratory conditions. Field conditions are different, and the gap between the two is where most failures originate.

Common specification errors:

• Quoting an IP rating for a bare PCB or a component. The rating belongs to the assembled enclosure, full stop.
• Assuming conformal coating provides immersion protection. Conformal coating is semi-permeable and typically reaches splash or jet resistance (roughly IPX4 to IPX6) but not immersion-level protection. Potting or a fully sealed enclosure is required for IP67 and above.
• Ignoring cable and connector entries. A single unsealed cable entry voids the enclosure's IP claim entirely. Every penetration must be rated to at least the same level as the enclosure.
• Treating IP as corrosion resistance. Fresh-water immersion tests say nothing about salt spray, acids, alkalis, or solvents. Specify material and finish separately.

Real-world degradation factors:

Seals age. EPDM and silicone gaskets lose compression set over thermal cycles, UV exposure, and mechanical wear. An enclosure that passes IP67 on day one may not pass after three years of outdoor service if the gasket was never inspected. Fastener torque matters too: under-torqued lids reduce gasket compression and open leak paths that are invisible to the eye.

Pro Tip: Plan a re-sealing interval into your maintenance schedule from the start. For outdoor enclosures in high-UV or high-temperature environments, a gasket inspection at 18–24 months is a reasonable starting point. Mark the torque spec on the inside of the lid so field technicians don't guess.

How IP tests are performed and what evidence to accept

Understanding what happens in the test lab helps you read a report critically and spot incomplete testing.

The test apparatus varies by digit family:

• Digits 1–2 (drip): A drip box or rainfall simulator delivers water at a controlled rate over the enclosure in specified orientations.
• Digits 3–4 (spray/splash): An oscillating tube with holes or a hand-held spray nozzle covers the enclosure from all angles.
• Digits 5–6 (jets): A calibrated nozzle at a fixed flow rate and distance is directed at all joints, seams, and entries. The tester moves the nozzle slowly across every surface.
• Digit 7 (immersion): The enclosure is submerged in fresh water to 1 m (measured from the top of the enclosure) for 30 minutes, then inspected internally for water ingress.
• Digit 8 (continuous immersion): Conditions are agreed between manufacturer and user. The test report must state the actual depth and duration.
• Digit 9K (high-pressure jet): A rotating nozzle delivers hot water at high pressure at close range per ISO 20653 parameters.

Fields to request in every test report:

• Sample description and serial number
• Test standard and clause number
• Fixture orientation during test
• Test medium (fresh water, talcum powder grade)
• Duration and depth (for IPX7/IPX8)
• Pass/fail result and any observations on ingress location
• Laboratory name, accreditation body, and ISO/IEC 17025 certificate number

When a claim affects safety or long-term reliability, third-party testing at an accredited lab is worth the cost. A manufacturer's in-house test report is not worthless, but it carries less weight than an independent one. Requesting test reports and lab accreditation is standard practice for any serious procurement.

Materials, gaskets, and sealing methods for target IP ratings

The enclosure material and sealing strategy determine whether a target IP rating is achievable and maintainable over the product's service life.

Enclosure materials and their trade-offs:

• PC/ABS blends — Good impact resistance and moldability, moderate UV stability. Suitable for IP65–IP67 indoor/outdoor electronics. Not ideal for aggressive chemical environments.
• Polycarbonate (PC) — High optical clarity, good impact strength, but susceptible to certain solvents and stress cracking. Common for instrument windows and light covers.
• PBT (polybutylene terephthalate) — Better chemical resistance than PC/ABS, good dimensional stability. Used in connector housings and small enclosures.
• Aluminum (die cast or machined) — Excellent rigidity and thermal conductivity, good for IP66–IP68 when properly anodized or coated. Susceptible to galvanic corrosion if dissimilar metals are in contact in wet environments.
• Stainless steel (304 or 316) — Best corrosion resistance for marine and food-processing environments. Heavy and expensive, but the right choice for IP66/IP69K in salt or chemical exposure. Material selection at the prototype stage directly affects whether the sealing geometry can be held in production.

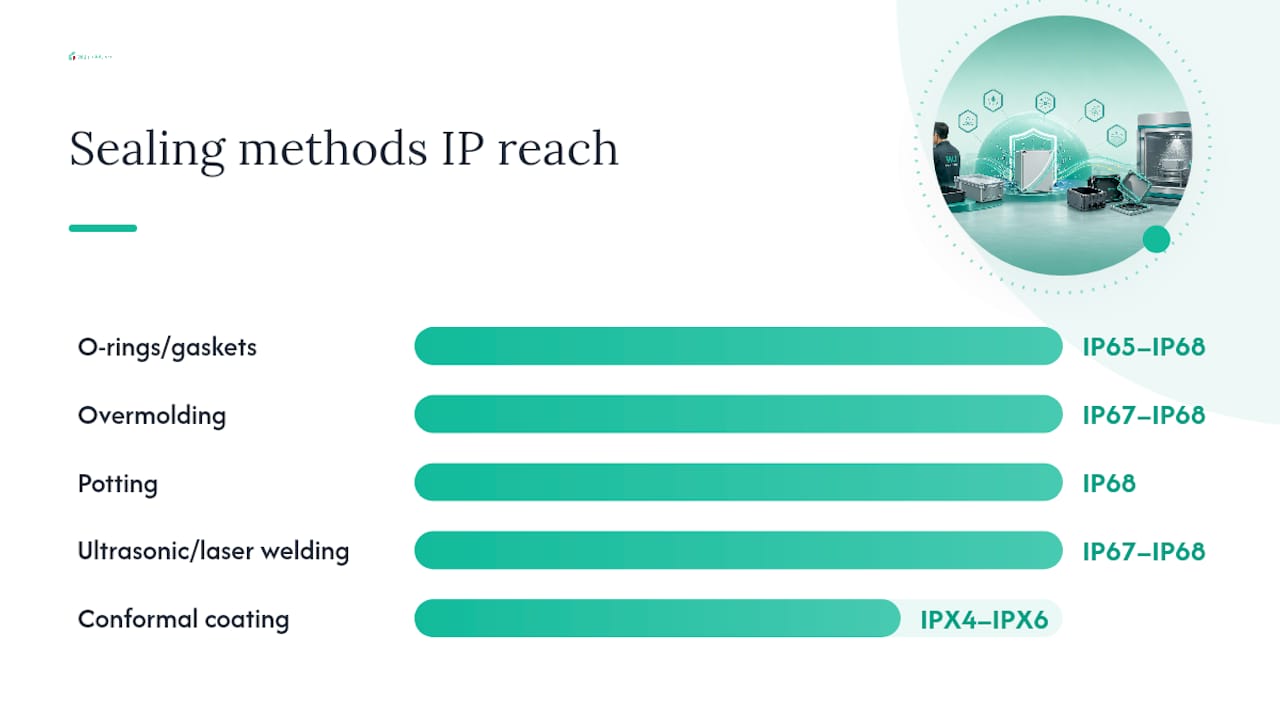

Sealing strategies and their realistic IP reach:

• O-rings and cord gaskets in a groove — The standard approach for IP65–IP68. Groove geometry (depth, width, corner radius) must be held to tight tolerances to achieve consistent compression. Silicone and EPDM are the most common materials; fluorosilicone for chemical resistance.
• Tongue-and-groove (face seal) — More forgiving of surface finish variation than a radial seal. Common in die-cast aluminum enclosures.
• Overmolding — Bonds a soft elastomer directly to the housing, eliminating a separate gasket. Reliable for IP67–IP68 in consumer electronics and handheld instruments.
• Potting — Encapsulates the PCB and internal components in epoxy or polyurethane. Achieves IP68 reliably but makes the product non-repairable. Best for sensors and sealed modules.
• Ultrasonic or laser welding — Creates a permanent bond between plastic halves. Achieves IP67–IP68 without a gasket but requires consistent wall thickness and joint geometry.
• Conformal coating — Protects the PCB from condensation and light splash (IPX4–IPX6 range). Not a substitute for a sealed enclosure at immersion ratings.

Cable glands and breathable vents are not afterthoughts. A cable gland must carry the same IP rating as the enclosure, and the gland's rating applies only when the correct cable diameter is used and the locknut is torqued to spec. Breathable ePTFE membrane vents equalize pressure across thermal cycles without admitting water, preventing the "pump" effect that draws moisture in through seals as the enclosure cools.

Practical prototyping and pre-certification checks

Running a few low-cost checks on early prototypes catches the seal and assembly errors that would otherwise surface during formal lab testing, at a fraction of the cost.

Prototyping checklist for sealing geometry:

• Gasket groove depth and width matched to the gasket cross-section, targeting 15–25% compression for most silicone and EPDM profiles
• Corner radii in the groove large enough to prevent gasket rollout (typically ≥ 1.5× the gasket diameter)
• Surface finish on sealing faces: Ra ≤ 1.6 µm for elastomeric gaskets, smoother for O-rings
• Fastener pattern and spacing to maintain even compression around the perimeter
• Torque values documented and marked on the assembly drawing

In-house validation methods before lab submission:

• Spray rig test: A garden-hose nozzle at the IPX5 flow rate, directed at all seams and entries, reveals obvious leak paths in minutes.
• Shallow immersion: Submerging the prototype in 200 mm of water for 30 minutes with water-sensitive paper inside shows ingress location precisely.
• Pressure decay test: Pressurize the sealed enclosure to a low positive pressure (typically 0.5–1 PSI) and monitor for decay over 60 seconds. A drop indicates a leak without getting the electronics wet.
• Thermal cycling: Cycling from cold to warm induces condensation inside and reveals micro-leaks that static tests miss.

Pro Tip: Place water-sensitive paper (the kind used in spray-pattern testing) at every suspected leak point inside the prototype before any wet test. It turns bright pink on contact with water and maps the ingress path exactly, so you know which seal to fix rather than guessing.

WJ Prototypes integrates these checks into prototype builds for enclosure projects, using CNC-machined housings with production-representative gasket grooves so the prototype test result translates directly to the production tool. Common fail modes in rapid prototypes include gasket rollout at sharp corners, insufficient fastener count on long lid edges, and cable gland entries that were not torqued during the test. Catching these before the formal lab submission typically saves one full re-test cycle.

The part of IP specification most engineers get wrong

The IP code is a precise, well-structured system, and yet field failures from "IP-rated" enclosures are common. The reason is almost never the standard itself. It is the gap between what the test covers and what the engineer assumed it covered.

The most persistent assumption is that a higher IP number is always safer. It is not. An IP68 enclosure that was never tested against jets can fail catastrophically in a washdown environment where IP66 would have been the right answer. The hazard analysis has to come first, and the rating follows from it, not the other way around.

The second assumption is that the rating is permanent. Seals degrade. Thermal cycling compresses gaskets permanently over time. A product that passed IP67 in the lab may admit water after two years of outdoor service if maintenance was not planned. The standard tests a new, correctly assembled sample once. It says nothing about the enclosure after 500 thermal cycles, three years of UV exposure, or one over-torqued lid.

Working with a manufacturer like WJ Prototypes at the prototype stage, rather than after the design is frozen, makes both of these problems easier to manage. Sealing geometry can be iterated quickly with CNC-machined prototypes, and the test feedback feeds directly into the production tooling spec. The engineers who get IP right consistently are the ones who treat the lab test as a confirmation of a design that was already validated in-house, not as the first real test.

WJ Prototypes helps you reach your IP target faster

Specifying the right IP rating is only half the problem. Getting a prototype that actually passes the test is where projects stall.

WJ Prototypes manufactures IP-focused enclosure prototypes using CNC machining, die casting, overmolding, and vacuum casting, with gasket grooves and sealing features held to production-representative tolerances from the first part. Engineers can submit drawings with IP target and test standard noted, and WJ Prototypes' team flags geometry issues before cutting metal. The result is a prototype you can take directly to a spray rig or immersion tank with confidence.

For teams working toward IP66, IP67, or IP68 certification, WJ Prototypes offers pre-certification prototype runs with documented assembly torque and configuration records that match what an accredited lab will need. Get a CNC machining quote or review available CNC machining materials to start your enclosure prototype today.

Sources

The references below are the primary sources engineers should consult when writing specifications, evaluating supplier claims, or preparing for lab testing.

• IP Rating for Electronics: The IP67 & IP68 Design Guide - PCBSync
• IP67 vs IP68 vs IP69K: Which Waterproof Rating Do You Need?
• IP and IK ratings: ingress protection explained | spilma
• IP Rated Enclosures: Electronics Design Guide

FAQ

What is an IP enclosure rating?

An IP (Ingress Protection) rating is a two-digit code defined by IEC 60529 that classifies how well a sealed enclosure resists solid objects and water. The first digit covers solid and access protection (0–6), and the second covers water ingress (0–9).

Which is better, IP54 or IP68?

IP68 offers far greater water protection, but "better" depends on the hazard. IP54 suits light splash and dust-protected indoor or light-outdoor use; IP68 is for continuous immersion at a manufacturer-specified depth. Over-specifying to IP68 when IP54 or IP65 covers the actual exposure adds cost without reducing risk.

What is an IP68 enclosure?

An IP68 enclosure is dust-tight and rated for continuous immersion beyond the IP67 condition of 1 m for 30 minutes. The exact depth and duration are set by the manufacturer and must appear in the test report. Always ask for those specific parameters before accepting an IP68 claim.

Is IP66 equal to NEMA 4X?

IP66 and NEMA 4X overlap significantly in water protection, but they are not equivalent. NEMA 4X includes corrosion resistance and external icing tests that IEC 60529 does not cover. An IP66 enclosure does not automatically qualify as NEMA 4X unless it has also passed those additional NEMA 250 tests.

Do IP ratings cover salt water and chemicals?

No. IEC 60529 tests use fresh water only. Salt water, solvents, oils, and cleaning chemicals are outside the standard's scope. Specify material, coating, and chemical compatibility separately from the IP rating when corrosive or chemical exposure is a real hazard.
