How to Evaluate Prototype Quality Before Production

TL;DR:
Evaluating prototype quality early helps identify flaws before costly tooling, reducing development costs by up to 30%.A structured assessment covers dimensional, material, functional, and usability testing, with clear success criteria aligned to production goals.

Prototypes that look flawless on the bench can fail catastrophically in production. Knowing how to evaluate prototype quality is what separates teams that catch fatal flaws early from those that discover them after tooling costs have been committed. Strategic prototyping can reduce total development costs by up to 30% by surfacing problems at the stage where fixes are cheap. This guide gives you a practical, field-tested framework for prototype quality assessment that covers dimensional inspection, materials testing, usability validation, and documentation so your team moves to production with confidence.

Table of Contents

• Key Takeaways
• How to evaluate prototype quality: preparation first
• Step-by-step methods for thorough prototype assessment
• Common pitfalls in prototype evaluation
• Analyzing and documenting evaluation results
• My honest perspective on prototype evaluation
• How WJ Prototypes supports production-ready prototypes
• FAQ

Key Takeaways

How to evaluate prototype quality: preparation first

You cannot assess what you have not defined. Before a single caliper comes out or a test session starts, your team needs documented success criteria that are specific, measurable, and tied directly to production intent.

Start by clarifying the fidelity level of the prototype in front of you. The right fidelity depends on the question being asked. A foam model answers form and ergonomics questions. A CNC-machined aluminum part answers dimensional accuracy and thermal behavior questions. Sending a low-fidelity concept prototype through a full tolerance inspection wastes time and generates misleading data. Matching the evaluation method to the prototype type is one of the most overlooked best practices for prototype evaluation.

Next, gather your stakeholders. Engineering cares about tolerances and material behavior. Product management cares about feature completeness. Regulatory teams care about compliance documentation. If these groups define their success criteria independently, you end up with a fragmented evaluation that satisfies no one. A 60-minute kick-off meeting to align on pass/fail thresholds before testing begins saves weeks of revision cycles later.

The tools you need at a minimum:

• Calipers, micrometers, and a coordinate measuring machine (CMM) for dimensional inspection
• Material data sheets and hardness testers for mechanical property verification
• A structured usability testing protocol with a recruiting screener for user sessions
• A defect tracking log with severity classifications (critical, major, minor)
• Version control records that tie prototype iterations to specific design changes

Pro Tip: Create a single-page evaluation brief that lists the prototype version, fidelity level, specific questions being tested, and the pass/fail criteria for each. Distribute it before testing, not after. Teams that skip this step routinely confuse prototype review meetings with design critique sessions.

Step-by-step methods for thorough prototype assessment

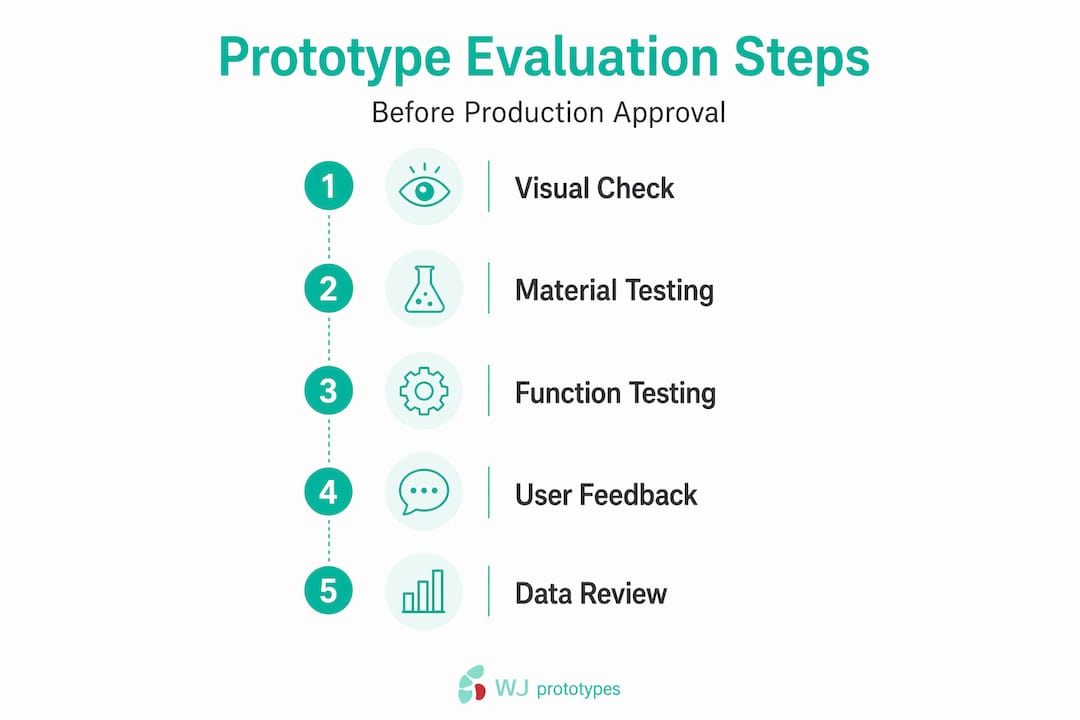

Evaluating design quality at the prototype stage requires a layered approach. No single test type tells the full story. Here is a structured sequence that covers the physical, mechanical, and experiential dimensions of a prototype.

1. Visual and dimensional inspection

Start with a full visual pass. Look for surface defects, parting line flash, sink marks, and finish inconsistencies. Then move to dimensional inspection using calipers and a CMM. Check critical dimensions against the design drawing tolerances, but do not stop at nominal. Testing at nominal tolerances only verifies a perfect part, not the tolerance range that production will actually deliver. Check fits and assemblies at their upper and lower tolerance limits to identify tolerance traps before they become assembly line failures.

2. Material and mechanical performance testing

Verify that the material used in the prototype matches the production-intent specification as closely as possible. Test hardness, surface roughness (Ra values), and, where applicable, tensile strength against the material data sheet. Pay particular attention to differences in process. An SLA resin part behaves differently under load than an injection-molded nylon part, even when they look identical.

3. Functional performance testing

Run the prototype through every operational scenario in the design specification. For a medical device housing, this might mean drop tests, sterilization cycle exposure, and IP rating verification. For an automotive bracket, it means vibration testing and thermal cycling. Document each test with pass/fail against the predefined threshold.

4. Usability testing with real users

Select participants who match your actual user profile. Aim for five to eight participants per round for qualitative discovery. Use a moderated format when you need to probe motivations; use unmoderated remote testing when you need volume. Effective usability validation requires clear success criteria such as 80 to 90% task completion within a specified time limit. Observe without assisting. Encourage the think-aloud protocol so participants narrate their mental models as they interact with the prototype.

5. Combine your data types

Blending quantitative data with qualitative user quotes creates the kind of reports that decision-makers cannot dismiss. A 62% task completion rate is a number. Add a participant quote explaining exactly where they got stuck and the finding becomes undeniable.

Pro Tip: Build multiple prototype samples from different material lots or supplier batches when possible. Building multiple prototypes from varied batches surfaces production variability that a single perfect sample completely hides.

Common pitfalls in prototype evaluation

Even experienced teams fall into predictable traps. Knowing them in advance is the fastest way to avoid them.

The most dangerous mistake is treating prototype quality as a direct prediction of production quality. It is not. Prototype quality is an upper bound on production quality, not a floor. A skilled machinist hand-fitting a prototype produces results that an automated production line simply cannot replicate without rigorous process controls, operator training, and documented work instructions. When your prototype passes inspection, the right question is not "are we ready for production?" It is "can our production process reliably replicate what this prototype demonstrates?"

A second major trap is ignoring tolerance stack-up. Individual dimensions might all be within tolerance while the assembled product is out of spec. Model your tolerance stack-ups analytically before physical assembly testing, and verify the worst-case assembly scenario on the bench.

Other pitfalls to watch for actively:

• Overvaluing cosmetic feedback at the wrong fidelity level. If you are testing workflow with a rough prototype, stakeholder comments about surface finish are noise, not signal.
• Conflating user preference with user performance. A participant can say they love the interface while completing only 40% of tasks successfully. Trust the metrics.
• Skipping regulatory criteria. Compliance requirements do not become easier to meet in production. If a prototype cannot demonstrate compliance readiness, that is a red flag that belongs in the evaluation report.
• Failing to document what passed, not just what failed. A clean evaluation record is evidence during audits and supplier qualification processes.

"The uncomfortable truth about prototype evaluation is that the data is only as good as the criteria you defined before testing. Retroactively writing pass/fail thresholds after you see the results is not evaluation. It is rationalization."

An impact/effort matrix helps prioritize findings by mapping each issue against its estimated engineering cost versus its user or business value. High impact, low effort fixes go first. This framework keeps post-evaluation debates focused on data rather than politics.

Analyzing and documenting evaluation results

Raw data from a prototype evaluation session has almost no organizational value on its own. Converting it into a structured report is where the real work happens, and where most teams underinvest.

A well-structured prototype test report should include five components. First, an executive summary that states the prototype version, evaluation date, and overall pass/fail status in plain language. Second, a performance metrics section with tables showing each test parameter, the threshold, and the actual result. Third, an issue log with each finding categorized by severity (critical blocks release; major requires resolution before production; minor can be addressed in a future revision). Fourth, visual documentation such as annotated photos, CMM output overlays, and usability session recordings. Fifth, prioritized recommendations with a rough cost-benefit framing.

Prototype test reports that include performance metrics and prioritized recommendations materially improve collaboration between engineering, product, and manufacturing teams. They convert individual expertise into shared organizational knowledge.

Pro Tip:Use a severity matrix to classify issues at the moment of discovery, not during the write-up. Teams that wait to classify severity during report drafting tend to downgrade issues under schedule pressure. Lock in the rating while the finding is fresh.

The reporting format matters as much as the content. Well-structured reports integrate UX metrics, technical data, and business impact analysis into a single document that non-technical stakeholders can read without a translator. Link every recommendation to a design file version and a timeline. This creates the traceability your team needs when evaluating the next prototype iteration.

For ongoing programs, version control your evaluation reports the same way you version your CAD files. Each evaluation cycle should reference the previous report's open issues and confirm which were resolved. This discipline is what prototype validation strategies actually look like in practice at companies that ship reliable products.

My honest perspective on prototype evaluation

I've seen teams spend six figures on a beautiful prototype and then conduct a two-hour walkthrough as the entire "evaluation process." The prototype looked great. Production was a disaster.

What I've learned over years of watching product development cycles is that teams systematically overweight what they can see and underweight what they have not yet tested. A polished surface finish creates a halo effect. It makes the dimensional tolerances feel fine even before you've measured them, and it makes the usability feel intuitive even before a real user has touched it.

The most valuable thing a product team can do is separate the aesthetic review from the technical evaluation. Schedule them on different days with different participants. The engineering inspection should happen first, documented before anyone outside the core team sees the prototype. Otherwise, executive enthusiasm for the appearance contaminates the engineering findings.

My other hard-won conviction: the teams that receive critical evaluation findings with genuine curiosity rather than defensiveness are the ones that ship great products. The data is not an attack on the design. It is the cheapest form of product insurance your company can buy. Proven approaches to prototype quality start with that mindset, not with any particular tool or checklist.

How WJ Prototypes supports production-ready prototypes

When your evaluation criteria call for production-intent materials, the prototype manufacturing process matters as much as the inspection process. WJ Prototypes produces prototypes using the same materials and processes your production parts will require, which is exactly what makes evaluation data reliable. From CNC-machined aluminum and steel for dimensional and mechanical validation to injection-molded engineering polymers for functional and usability testing, every prototype is built to ISO-certified quality standards with full material traceability. If you are preparing for a prototype evaluation cycle and need parts that accurately represent production intent, get a CNC machining quote directly from WJ Prototypes and receive a fast, detailed response from experienced engineers.

Get An Instant Quote

Explore competitive Rapid Prototyping Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

FAQ

What are the main criteria for evaluating prototypes?

The main criteria are dimensional accuracy against design tolerances, material and mechanical property conformance, functional performance against specification requirements, and usability performance measured by task completion and error rates. Compliance readiness is a fifth criterion for regulated industries.

How do you measure prototype effectiveness before production?

Assessing prototype performance means running each prototype through quantitative tests with predefined pass/fail thresholds and structured usability sessions with real users, then comparing results against documented success criteria before making a go/no-go production decision.

Why doesn't a high-quality prototype guarantee production quality?

Prototype quality represents an upper bound, not a floor. Production quality depends on process documentation, operator training, and machine capability, none of which are active during prototype fabrication.

How many users do you need for prototype usability testing?

Five to eight participants per test round is sufficient for qualitative discovery. Testing continues until completion thresholds are met or no new major issues appear across two consecutive rounds.

How should prototype evaluation findings be prioritized?

Use an impact/effort matrix to rank findings by user or business value against estimated engineering cost. Prioritization frameworks like RICE or MoSCoW complement this matrix when managing a larger backlog of findings from multiple evaluation rounds.
