Surface Finishes Guide for Engineers and Designers

TL;DR:
Surface finish determines how a part's outer layer performs, affecting corrosion, assembly, and rejection. Selecting the appropriate method early in design prevents costly errors and maintains dimensional accuracy.

Surface finish is defined as the set of characteristics that describe a part's outer layer, including roughness, waviness, and lay, and it directly determines how that part performs in service. Selecting the wrong finish causes corrosion failures, assembly interference, and rejected parts. This surface finishes guide covers the most critical finishing methods, their dimensional effects, measurement standards, and the decision criteria that separate a good finish choice from a costly one. Standards like ISO 1302 and ASME Y14.36M govern how finishes are specified on engineering drawings, making this knowledge non-negotiable for any design or manufacturing team.

What does a surface finishes guide cover?

Surface finishing is the broad category of processes applied to a manufactured part to alter its surface properties for appearance, function, or both. Finishing processes range from mechanical polishing and media blasting to chemical conversion coatings, electroplating, and powder coating. Each method changes the surface in a different way, and each carries tradeoffs in cost, durability, and dimensional impact.

The three core surface texture parameters are roughness, waviness, and lay. Roughness captures the fine, closely spaced irregularities left by machining or grinding. Waviness describes broader, more widely spaced undulations caused by machine vibration or deflection. Lay is the direction of the dominant surface pattern, which matters for sealing surfaces and sliding contacts. Understanding all three is the starting point for any serious guide to finishing surfaces.

Finishing processes improve adhesion, corrosion resistance, hardness, wear resistance, electrical conductivity, and surface friction. That list shows why finish selection is an engineering decision, not just an aesthetic one. A medical implant needs a biocompatible, low-roughness surface. A structural bracket in a marine environment needs corrosion protection above all else.

How do finishing methods affect dimensional tolerances?

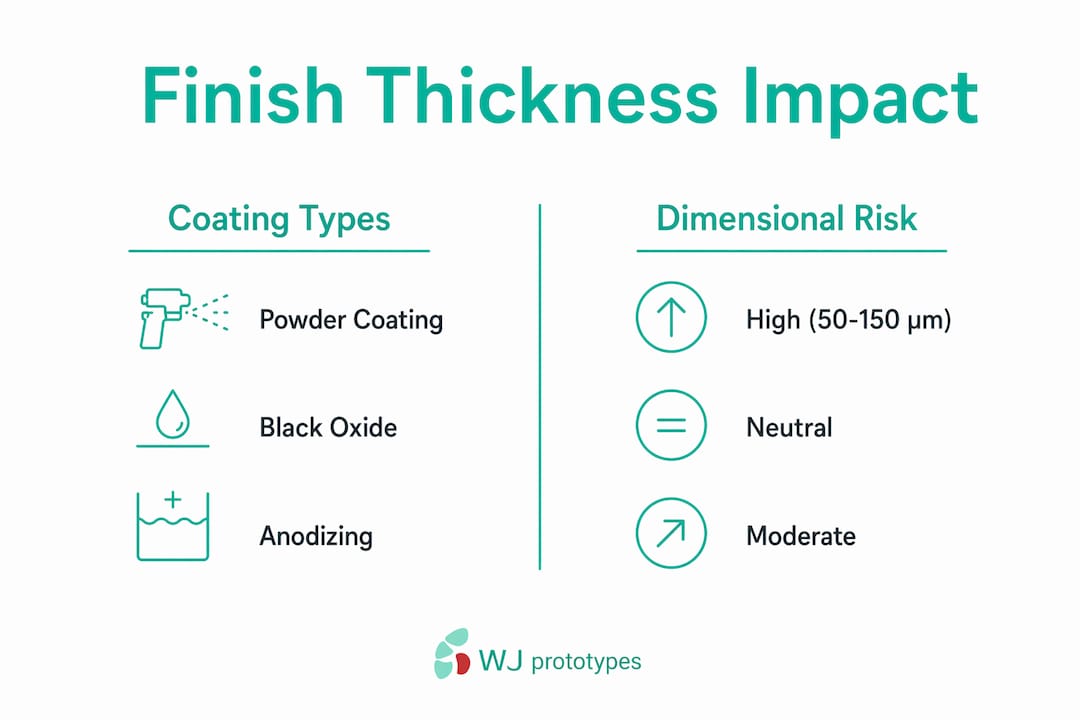

Every coating process adds material to a part's surface, and that added thickness changes the part's final dimensions. Designers who ignore this fact produce parts that fail to assemble. Powder coating adds 50–150 µm of thickness, which is enough to close a threaded hole or cause a press-fit shaft to bind. Electroplating adds 2–25 µm, and anodizing typically adds 5–25 µm depending on the process type.

Black oxide is dimensionally neutral because it converts a microscopic layer of the base metal rather than depositing new material on top. Passivation works the same way. These conversion coatings are the right choice when tight tolerances must be maintained alongside corrosion protection.

Powder coating can compromise threaded holes, precision bores, and mating surfaces if the designer does not account for the added thickness in the CAD model. The fix is straightforward: machine threaded holes and critical bores to a tighter pre-coat diameter, then tap or ream after coating. For external features, design the pre-coat dimension to be undersize by the expected coating thickness.

Pro Tip: Specify masking requirements directly on your engineering drawing. Call out which surfaces must be kept free of coating and to what tolerance. Leaving this to the finisher's judgment is a common source of rework.

What are the main types of surface finishes?

Surface finishing methods fall into four categories: mechanical, chemical, coating, and conversion. Each category produces a different surface character and suits different applications.

Mechanical finishing methods physically alter the surface through abrasion, impact, or cutting. Common techniques include:

• Grinding and lapping: Produces flat, low-roughness surfaces for sealing faces and precision sliding contacts.
• Media blasting (bead blast, shot blast): Creates a uniform matte texture that improves paint adhesion and removes machining marks.
• Polishing and buffing: Achieves mirror-like finishes for optical components, medical devices, and consumer products where appearance is critical.
• Brushing: Leaves a directional grain pattern, common on stainless steel consumer goods and architectural panels.

Chemical and electrochemical finishing methods use controlled chemical reactions to alter or deposit material:

• Electropolishing: Removes a thin, uniform layer from stainless steel or aluminum, reducing Ra values and improving corrosion resistance. Widely used in food processing and medical equipment.
• Passivation: Removes free iron from stainless steel surfaces using nitric or citric acid, forming a stable chromium oxide layer that resists corrosion without adding thickness.
• Electroplating: Deposits a metal layer (nickel, chrome, zinc, gold) onto a base material for wear resistance, conductivity, or appearance.

Coating processes apply a separate material layer to the surface:

• Powder coating: Applies a dry polymer powder electrostatically, then cures it in an oven. Produces a tough, uniform finish with good UV and chemical resistance. Best for steel and aluminum structural parts.
• Liquid paint and primer systems: Offer color flexibility and are suitable for large or complex geometries where powder coating is impractical.
• Thermal spray coatings: Deposit metallic or ceramic materials for extreme wear or thermal protection in aerospace and industrial machinery.

Conversion coatings chemically convert the base metal surface:

• Anodizing: Converts the aluminum surface to aluminum oxide, increasing hardness and corrosion resistance. Type II anodizing is standard; Type III (hard anodizing) produces a thicker, harder layer for wear applications.
• Black oxide: Converts steel surfaces to magnetite, providing mild corrosion resistance and a dark appearance with no dimensional change.
• Chromate conversion (Alodine/Iridite): Applied to aluminum for corrosion protection and paint adhesion, common in aerospace.

Material compatibility is non-negotiable. Anodizing works only on aluminum. Black oxide applies to ferrous metals. Electropolishing suits stainless steel and some aluminum alloys. Matching the process to the base material is the first filter in any surface finish comparison.

How do you choose the right surface finish?

Finish selection depends on environment, function, and cost. A part used indoors in a dry environment needs far less corrosion protection than the same part installed on a coastal offshore platform. Specifying a heavy-duty finish for a benign environment wastes money. Specifying an inadequate finish for a harsh environment causes field failures.

The key factors to evaluate before committing to a finish:

• Corrosion exposure: Salt spray, humidity, chemical contact, and galvanic coupling all demand different protection levels.
• Wear and friction requirements: Sliding contacts, fastener interfaces, and tooling surfaces need hard, low-friction finishes like hard anodizing or electroless nickel.
• Electrical requirements: Some applications need conductivity (chromate conversion on aluminum); others need insulation (anodizing).
• Aesthetic requirements: Color, gloss level, and texture uniformity matter for consumer products and visible structural components.
• Dimensional constraints: Tight-tolerance features limit the coating thickness you can accept.
• Budget: Electropolishing and hard chrome plating cost significantly more than powder coating or black oxide.

Consulting with finishers early in the design process prevents costly late-stage changes. A finisher can flag incompatible material-process combinations, recommend masking strategies, and confirm whether a proposed finish meets the relevant standard. This is especially true for prototype surface finishes, where a wrong choice on a first article delays the entire program.

Finish selection is more than cosmetic. It must match the operating environment precisely to avoid both over-engineering and premature failure. Compliance with standards such as MIL-A-8625 for anodizing or ASTM B633 for zinc electroplating is often a contractual requirement, not optional.

Pro Tip: Build a finish specification matrix for your product family. List each part, its environment rating, tolerance class, and approved finish options. This single document eliminates repeated decision-making and reduces specification errors across production runs.

How is surface finish measured and specified?

Surface roughness uses Ra and Rz as the primary quantitative parameters. Ra is the arithmetic mean of surface profile deviations from the mean line, measured in micrometers or microinches. Rz is the average of the five highest peak-to-valley measurements within a sampling length. Ra gives a general sense of texture; Rz captures the extremes that matter for sealing and fatigue life.

Surface finish symbols and roughness charts standardize how engineers communicate requirements on drawings. ISO 1302 defines the graphical symbol system used internationally. ASME Y14.36M is the American equivalent. Both systems allow designers to specify Ra value, machining method, lay direction, and material removal allowance in a single symbol placed on the drawing view.

Measurement instruments include contact profilometers (stylus-based), optical profilometers, and white-light interferometers. Contact profilometers are the most common in production environments. Optical methods are preferred for soft or delicate surfaces where a stylus would damage the material. Calibration to traceable standards is required for any measurement used in quality control or regulatory compliance.

Specifying surface finish correctly on a drawing is as important as achieving it in production. An under-specified drawing gives the manufacturer no target to hit. An over-specified drawing drives up cost without improving function. The right Ra value is the one that the application actually requires, verified against the relevant design standard.

Key takeaways

Surface finish selection is an engineering decision that affects dimensional accuracy, corrosion resistance, wear life, and total part cost simultaneously.

Why finish decisions belong at the design table, not the end of the process

The most expensive mistake I see in product development is treating surface finish as a final step. Teams finalize geometry, run tolerance stack-ups, and only then ask: "What finish do we want?" By that point, the design is locked, and any finish that adds meaningful thickness forces a redesign or a tolerance waiver.

Finish selection belongs in the early design review, alongside material selection and manufacturing process choice. The finishing in prototyping phase is where you learn what a finish actually does to your part geometry. A prototype with the production finish applied tells you far more than a bare-machined part ever will.

The other thing teams consistently underestimate is the environmental matching problem. A zinc-plated steel fastener is adequate in a dry indoor cabinet. The same fastener in a marine enclosure will fail in months. The cost difference between zinc plate and hot-dip galvanizing or stainless steel is small compared to a field service call. Getting the environment rating right the first time is the highest-return decision in finish selection.

My practical advice: build finish requirements into your design checklist at the concept stage. Assign an environment rating, a tolerance class, and a budget tier to every part. Then let those three constraints drive the finish choice. The answer becomes obvious in most cases, and the exceptions are easy to escalate to a specialist.

— Nas

WJ Prototypes: precision finishing from prototype to production

WJ Prototypes supports the full range of surface finishing methods described in this guide, applied to parts produced through CNC machining services, sheet metal fabrication, and additive manufacturing. The engineering team at WJ Prototypes works with clients to specify finishes that meet dimensional, functional, and compliance requirements from the first prototype through low-volume production. Whether you need hard anodizing on a tight-tolerance aluminum bore, powder coating on a structural steel weldment, or electropolishing on a medical-grade stainless component, WJ Prototypes provides instant quoting and ISO-certified quality control. Visit the WJ Prototypes manufacturing services page to request a quote and discuss finish requirements with an experienced engineer.

Get FREE DFM & Quote

Explore competitive Rapid Prototyping Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

FAQ

What is surface finish in manufacturing?

Surface finish describes the texture, roughness, and coating of a part's outer layer after manufacturing. It is defined by parameters including Ra, Rz, lay, and waviness, and it directly affects corrosion resistance, wear life, and dimensional accuracy.

How does powder coating affect part dimensions?

Powder coating adds 50–150 µm of thickness to all coated surfaces. Designers must compensate by machining critical bores and threaded holes to pre-coat dimensions and masking features that cannot accept added material.

What is the difference between Ra and Rz?

Ra is the arithmetic average of surface profile deviations from the mean line. Rz is the average of the five highest peak-to-valley measurements within a sampling length. Rz is more sensitive to surface defects and is preferred for sealing and fatigue-critical applications.

Which surface finish adds no dimensional thickness?

Black oxide and passivation are conversion coatings that add no measurable thickness. Black oxide converts a microscopic layer of steel to magnetite, leaving the part's dimensions unchanged, which makes it ideal for tight-tolerance components.

When should you consult a finisher during product development?

Consult a finisher during the early design phase, before geometry is finalized. Early engagement prevents incompatible material-process combinations, identifies masking needs, and confirms compliance with standards like MIL-A-8625 or ASTM B633 before production begins.
