What Is Design Intent? A Guide for Engineers and Designers

TL;DR:
Design intent explains why a product is designed in a certain way, capturing goals and reasoning. It differs from specifications by focusing on functional and performance requirements that guide engineering decisions. Proper documentation reduces errors, transfers knowledge, and supports AI integration and design clarity.

Design intent is defined as the documented explanation of why a product is designed a certain way, capturing the goals, constraints, and reasoning behind every engineering decision. It is not a list of dimensions or material specs. It is the purposeful logic that connects a designer's vision to every downstream manufacturing and development choice. Understanding design intent meaning separates teams that build products correctly once from those that rebuild them repeatedly.

What does design intent mean in product development?

Design intent answers the "why" behind every design choice, not just the "what" or "how." A specification tells a machinist to drill a 6mm hole at a given coordinate. Design intent explains that the hole must stay centered on the plate regardless of how the plate dimensions change, because the assembly depends on that alignment. That distinction changes everything about how a model behaves when it is modified.

In CAD environments, relational constraints capture design intent directly. Linking a hole's center position to the plate's center, rather than to a fixed coordinate, means the model updates intelligently when dimensions change. This reduces manual rework and prevents errors during prototyping phases.

Design intent operates at two levels:

• System level: The overall performance goals and functional requirements the product must meet, such as load capacity, thermal range, or IP rating.
• Component level: The specific constraints, relationships, and dependencies within individual parts or assemblies that support the system goals.

Common expressions of design intent include performance targets, geometric dependencies in parametric models, material selection rationale, and manufacturing constraints like minimum wall thickness for a given process.

Pro Tip: When building a CAD model, write a one-sentence intent statement for every major feature before you create it. That sentence becomes the reference point every time someone modifies the model later.

Why is design intent essential for product quality and collaboration?

Design intent preserves institutional knowledge that version histories and revision logs cannot capture. A changelog tells you what changed. Design intent tells you why the original decision was made and what trade-offs were accepted. That context is what new team members need to make good decisions without repeating past mistakes.

The workforce dimension of this problem is significant. Manufacturing employees over 55 have more than doubled over the last three decades. That means a large share of institutional engineering knowledge is concentrated in workers approaching retirement. When those engineers leave, undocumented design intent leaves with them.

"Design intent links creativity with engineering feasibility, ensuring that every design decision honors safety and functional goals." This is why clearly documented intent reduces miscommunication among engineers, detailers, fabricators, and contractors by unifying their understanding of design purpose.

The importance of design intent extends to AI integration. AI tools require structured intent data to provide accurate design reviews, generate meaningful variations, and support reliable recommendations. An AI agent interpreting engineering data without documented intent is guessing at context. That guessing produces errors that compound through the development cycle.

Design intent also changes how teams evaluate engineering changes. When a proposed modification is assessed against a defensible, performance-focused description of what the design must achieve, the evaluation becomes objective. The question shifts from "does this feel right?" to "does this meet the documented performance requirements?" That shift removes subjective friction from design reviews and value engineering discussions.

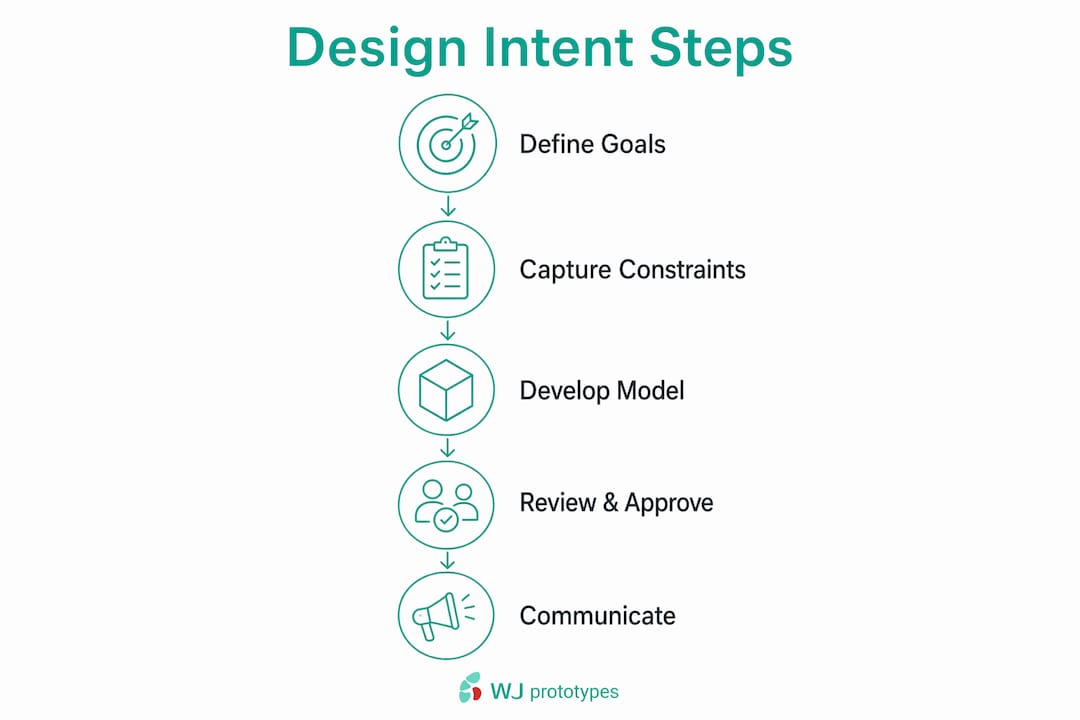

How to effectively document and communicate design intent

Documenting design intent is a discipline, not a one-time task. The goal is to create a record that any qualified engineer can read and use to make correct decisions without needing to consult the original designer. Here is a practical approach:

1. Write system-level performance requirements first. Before detailing any component, define what the product must do: load limits, environmental tolerances, lifecycle targets. These become the reference criteria for every downstream decision.
2. Capture component-level constraints in your CAD model. Use parametric relations and geometric dependencies to encode intent directly into the model. A constraint is worth more than a comment because it enforces the intent automatically.
3. Write a design intent narrative for each major assembly. This is a short document, often one page, that explains the functional goals, the key trade-offs accepted, and the constraints that must not be violated. It is the document a new engineer reads before touching the model.
4. Integrate intent documentation into design reviews and handoffs. Every formal review should include a check: does the proposed change comply with the documented intent? Every handoff to manufacturing should include the intent narrative alongside the technical drawings.
5. Update intent documentation when decisions change. If a design change overrides a previous constraint, document why. Outdated intent documentation is almost as dangerous as no documentation at all.

Pro Tip: Treat your design intent narrative the way a lawyer treats a contract. Every clause should be specific enough to be tested. "The bracket must support 200N at the mounting point" is testable. "The bracket should be strong" is not.

The precision engineering principles that drive product development success depend on this kind of structured documentation. Without it, even the best manufacturing process cannot reliably reproduce what the designer intended.

What are common challenges and misconceptions about design intent?

The most common mistake is treating design intent as synonymous with design specifications. Specifications describe the "how": dimensions, tolerances, materials, and processes. Design intent describes the "why": the performance outcomes and functional requirements that the specifications are meant to achieve. Confusing the two leads to value engineering failures where a cheaper alternative meets the spec on paper but violates the underlying intent.

Other frequent problems include:

• Ignoring the "why" entirely. Teams focused on delivery speed often skip intent documentation. The cost shows up later, during redesigns or when a new engineer makes a change that breaks an undocumented dependency.
• Using intent as post hoc justification. Design intent written after the fact to defend a decision already made is not useful documentation. It is rationalization. Real intent documentation is written before or during the design process, not after a problem surfaces.
• Under-documenting at the system level. Component-level constraints in a CAD model are valuable, but they do not replace a written description of what the system must achieve. Both are needed.
• Failing to update intent when designs evolve. A design intent document that reflects version 1.0 of a product that is now at version 3.2 creates confusion, not clarity.

Poor or absent documentation increases institutional memory loss risk and causes downstream errors, especially as engineering teams age and AI tools take on more workflow responsibility. The fix is a cultural one: make intent documentation a required deliverable, not an optional extra.

Design intent examples in product design and manufacturing

Concrete examples show how the concept works in practice across different stages of development.

The CAD example is worth examining closely. When a hole is positioned using a fixed coordinate, resizing the plate moves the plate boundary but leaves the hole in place. When the hole is center-linked to the part, resizing the plate automatically repositions the hole correctly. That single constraint encodes the intent and eliminates a category of error.

In prototype material selection, the prototyping process checklist for product managers shows that documenting performance goals before selecting materials prevents costly substitutions during low-volume production. When the rationale is written down, any engineer reviewing a material change can check it against the original requirement.

Collaborative manufacturing workflows benefit from explicit intent in a direct way. When fabricators understand that a surface finish is functional rather than cosmetic, they apply the correct process without needing to escalate for clarification. That clarity reduces lead time and prevents rework.

Key takeaways

Design intent is the documented performance rationale behind every engineering decision, and without it, product quality, team collaboration, and AI-assisted workflows all degrade.

Design intent in practice: what I've learned the hard way

The projects that taught me the most about design intent were the ones where it was missing. A redesign effort on a structural bracket took three times longer than it should have because no one could explain why the original geometry was shaped the way it was. The CAD model had dimensions. It had tolerances. What it did not have was any record of the load path reasoning that drove those choices. The team spent weeks reconstructing intent from test reports and tribal knowledge before they could safely modify anything.

What changed my thinking was realizing that design intent documentation is not overhead. It is the product of the design process, as much as the model or the drawing. When you write down why you made a decision, you often discover that your reasoning has gaps. That discovery during documentation is far cheaper than discovering it during manufacturing or field failure.

The AI dimension of this is something I watch closely. Digital twins and AI-assisted design review tools are only as trustworthy as the intent data they consume. A system that can read your CAD model but cannot understand why a feature exists will make recommendations that are geometrically valid but functionally wrong. The teams building those tools are explicit about this requirement. Structured, defensible intent documentation is not a future best practice. It is a current prerequisite for anyone integrating AI into their engineering workflow.

My recommendation: start small. Pick one active project and write a one-page intent narrative for the top-level assembly. Review it at the next design gate. You will find it changes the quality of every conversation in that review.

— Nas

WJ Prototypes: manufacturing that honors your design intent

Translating documented design intent into physical parts requires a manufacturing partner who understands what your documentation means. WJ Prototypes works with product designers, engineers, and project managers to produce prototypes and production parts that reflect the performance goals behind the design, not just the dimensions on the drawing. From CNC machining services that hold tight tolerances on complex geometries to die casting and vacuum casting for functional prototypes, WJ Prototypes brings ISO-certified precision to every stage of the process. Explore the full range of CNC machining materials to find the right fit for your performance requirements.

Get FREE DFM & Quote

Explore competitive 3D Printing Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

FAQ

What is design intent in simple terms?

Design intent is the documented explanation of why a product is designed a certain way. It captures the goals, constraints, and reasoning behind engineering decisions, not just the dimensions or materials used.

How does design intent differ from design specifications?

Specifications describe the "how" of a design, including dimensions, tolerances, and materials. Design intent describes the "why," meaning the performance outcomes and functional requirements those specifications are meant to achieve.

Why is design intent important for CAD modeling?

In CAD, design intent is captured through relational constraints and parametric dependencies that make models update intelligently when dimensions change. This prevents errors and reduces manual rework during prototyping.

How does design intent support AI in engineering workflows?

AI tools require structured, comprehensive intent data to deliver accurate design reviews and generate reliable recommendations. Without documented intent, AI agents interpret engineering data without context and produce errors that compound through the development cycle.

Who is responsible for documenting design intent?

The lead designer or engineer on a project owns the system-level intent documentation. Component-level intent is the responsibility of whoever creates or modifies that part of the model. Both should be reviewed and approved at each design gate.
