Precision Engineering For Oil & Gas: A Practical Guide

TL;DR:
In oil and gas, precision components require controlled, traceable manufacturing processes beyond basic machining. Proper inspection and detailed documentation ensure components meet critical tolerances, surface finishes, and material standards to prevent safety hazards and compliance issues. Moving procurement focus from supplier reputation to process transparency and data sharing leads to more reliable, high-quality parts for severe service conditions.

Procurement managers and engineers in oil and gas know that a failed seal or an out-of-spec valve seat is never just a maintenance problem. It becomes a safety event, a regulatory inquiry, and a costly production stoppage all at once. Yet a surprising number of component orders still get placed with suppliers who treat "precision" as synonymous with basic CNC turning and a caliper check. Precision finishing and inspection are essential for seal-ready surfaces and critical tolerances, a reality that separates functional components from liability risks. This guide gives you a clear, specification-driven framework for evaluating suppliers, interpreting process flows, and procuring parts that hold up in the most severe service conditions on earth.

Table of Contents

• What defines precision engineering in the oil & gas sector?
• From machining to metrology: Core process flow for true precision
• Inspection and metrology: Ensuring every detail meets spec
• Procuring precision: What to demand from your suppliers
• The uncomfortable truth about precision in oil & gas suppliers
• Get advanced precision solutions for oil & gas projects
• Frequently asked questions

Key Takeaways

What defines precision engineering in the oil & gas sector?

With the stakes set, let's define precisely what makes a critical oil and gas component "precise," and why it is about much more than tight tolerances alone.

Precision engineering, in the context of oil and gas, refers to the controlled, documented, and repeatable production of components to exacting dimensional, surface, and material specifications. That definition covers a wide field. It includes the geometry of a gate valve seat, the surface roughness of a flange face, the hardness profile of a pressure-containing body, and the traceability of every step that produced all of the above.

What separates oil and gas from most other industries is the layered consequence of imprecision. A consumer product that is slightly out of spec might cause customer dissatisfaction. A valve body that misses its seat contact angle by even a fraction of a degree can lead to leaks of flammable hydrocarbons, hydrogen sulfide, or supercritical CO2 under thousands of pounds per square inch of pressure. The downstream effects include equipment damage, environmental incidents, personnel injury, and regulatory shutdown.

What procurement teams should understand about industry expectations:

• Dimensional tolerances on critical sealing surfaces are frequently specified in the single-digit micron range
• Surface integrity, which covers roughness, flatness, and lay, is as important as dimensional conformance
• Material validation through certified mill test reports (MTRs) and positive material identification (PMI) testing is non-negotiable in most project specifications
• Standards like API Standard 600 define design, testing, and inspection requirements that directly govern what every supplier must demonstrate in writing
• ISO 5752, ASME B16.5, and ASME B16.10 govern face-to-face dimensions and pressure ratings for flanges and valves, creating a global dimensional language

"True precision is not a property of a machine tool. It is the outcome of a documented system where every process step, every measurement, and every material choice is controlled and traceable."

When sourcing precision prototyping partners for oil and gas programs, the first filter should not be the brand of their CNC equipment. It should be the maturity of their quality management system and how thoroughly their engineering team understands the applicable standards. Chasing quality control tips after a component is already fabricated is far more costly than building the right supplier criteria upfront.

From machining to metrology: Core process flow for true precision

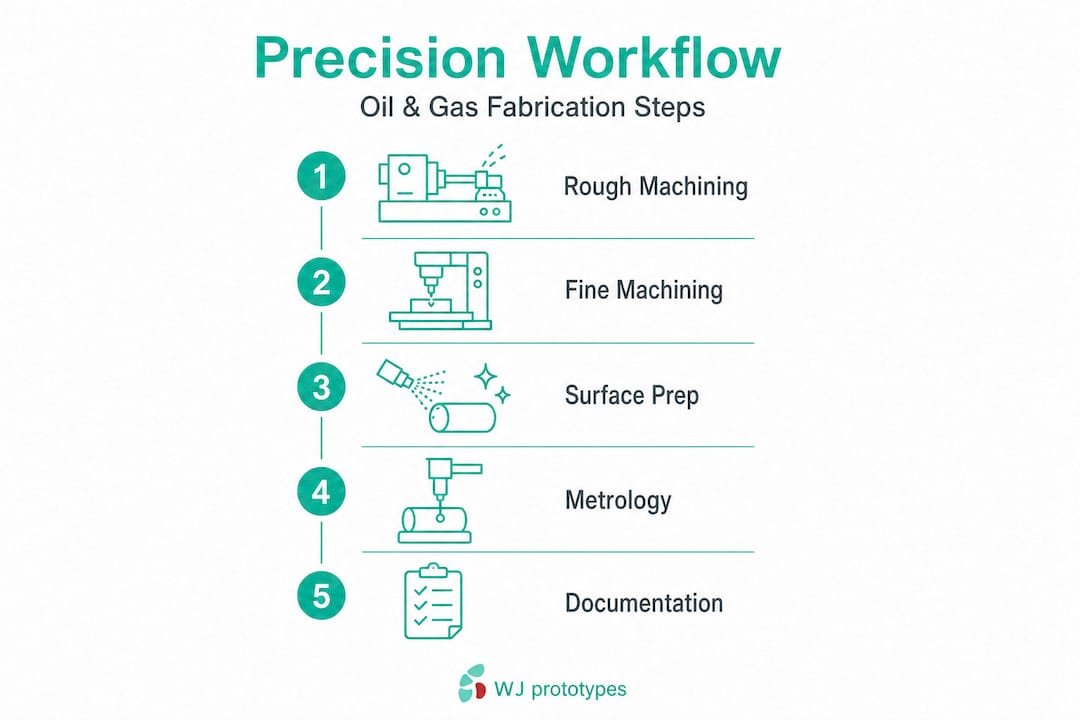

Having defined the high bar for oil and gas precision, let's unravel the step-by-step workflow that takes a part from raw cut to ready-for-service.

The journey from raw material to a certified, fit-for-service component in severe service conditions is not linear in the simple sense. It is a loop of machining, validation, correction, and re-validation. Understanding this loop is critical before placing any order.

Consider a typical gate valve seat ring intended for a high-pressure, high-temperature (HPHT) application. The precision breakthroughs in prototyping that have emerged from aerospace and energy applications show us what an integrated process looks like in practice:

1. Rough machining: Stock removal to bring the part within a few tenths of a millimeter of final dimensions. Cutting parameters are controlled to minimize residual stress and thermal distortion.
2. Heat treatment or stress relief: Dimensional stability before any final machining begins. Skipping this step is a common cost-cutting shortcut that causes grief later.
3. HVOF (High Velocity Oxygen Fuel) coating application: A tungsten carbide or chromium carbide coating is applied to sealing surfaces for wear and corrosion resistance, often adding 0.3 to 0.5 mm of material intentionally.
4. Precision grinding: Grinding after HVOF coating restores the coated surface to near-final dimensions with tightly controlled stock removal, often leaving 0.05 mm for the final lapping stage.
5. Finish lapping: Abrasive lapping brings the sealing face to its final surface finish, typically Ra 0.4 µm or better, and achieves the flatness required for metal-to-metal sealing contact.
6. Dimensional and surface inspection: CMM (coordinate measuring machine) measurements confirm geometry. A contact profilometer or non-contact optical instrument confirms surface finish.
7. Hardness verification: Portable hardness tester confirms coating or base material meets the specified value.
8. Final documentation: Route card closed, inspection records compiled, and MTR attached. The part is now traceable from raw bar to shipping box.

Understanding the precision part fabrication steps in this kind of detail helps you write better purchase order requirements and ask smarter questions during supplier qualification visits.

Pro Tip: Always ask a supplier to share a sample route card or traveler document from a comparable oil and gas job. If they cannot produce one quickly, that tells you more about their process maturity than any ISO certificate on the wall.

Inspection and metrology: Ensuring every detail meets spec

Precision machining and finishing are only half the story. The next challenge is proving that everything matches spec, every time.

Modern metrology tools have transformed what is possible in the field and in the shop. Here is a quick rundown of the instruments that matter most for oil and gas precision work:

• CMM (coordinate measuring machine): The standard for shop-floor dimensional verification. Measures complex 3D geometry with repeatability in the single-digit micron range. Best for in-house inspection of machined parts before final processing.
• Laser tracker: A portable, high-accuracy measurement system that can verify large assemblies or perform in-situ measurements on installed equipment. Accurate to ±25 µm over ranges up to 80 meters.
• Handheld 3D scanner: Faster and more flexible than a CMM for irregular surfaces. Useful for as-found condition surveys or reverse engineering of worn components.
• Contact surface profilometer: Measures surface roughness parameters such as Ra, Rz, and Rmax along a defined trace path. Essential for sealing surface validation.
• Optical interferometer: Provides non-contact flatness measurement with sub-micron resolution. Commonly used for lapped surfaces and precision optical components.

The debate between in-situ and central (shop) inspection deserves direct attention.

Metrology-driven in-situ precision machining has proven capable of restoring strict flatness and surface finish requirements within seven days for rotating equipment foundations in the petrochemical sector, a result that would have taken three to four weeks using traditional removal, shop repair, and reinstallation workflows. For procurement teams, that means downtime measured in days instead of weeks, with full traceability documented throughout.

Traceability is the word that connects metrology to procurement value. Every laser tracker measurement report, every CMM printout, and every profilometer scan creates a data record that can be reviewed during an internal audit, presented to a regulatory body, or used as a baseline for future maintenance decisions. This is the kind of evidence that makes your next project approval faster and your supplier qualification file airtight. You can also streamline manufacturing processes by building metrology checkpoints into the purchase order as contractual deliverables rather than optional extras.

For reference, consider Aerospace and UAV prototyping workflows, which have driven many of the metrology advancements now available to oil and gas buyers. Similarly, vacuum casting for oil and gas illustrates how rapid prototyping disciplines can be layered with rigorous inspection to validate form and fit before committing to full production tooling.

Procuring precision: What to demand from your suppliers

With inspection solved, the last vital step is knowing what to ask for and check when sourcing precision components.

The single biggest gap in most procurement practices is not the specification document. It is the evidence package required at delivery. Too many purchase orders say "conform to API 600" without specifying which documents prove conformance. Suppliers then interpret this gap in their favor, and procurement ends up with parts that look correct but have no traceable data to back the claim.

Here is what a properly structured precision component order should require from any supplier:

1. Dimensional inspection report: A full CMM or laser tracker report referencing each tolerance on the drawing. Not a pass/fail stamp. An actual data sheet.
2. Material certifications: Mill test reports for every material heat, with chemistry and mechanical properties tied to the specific heat number marked on the part.
3. PMI (positive material identification) results: Handheld XRF (X-ray fluorescence) verification that the alloy actually matches the MTR, especially critical for nickel alloys, duplex stainless steels, and titanium.
4. Surface finish records: Profilometer trace printouts for all specified sealing, bearing, or mating surfaces.
5. Process route card: A document showing what operation was performed at each stage, by whom, and what was verified at each inspection checkpoint.
6. Coating or heat treatment certificates: Third-party or in-house records showing process parameters, equipment calibration status, and results.
7. Pressure or leak test reports: Where applicable under API Standard 600 or equivalent valve testing standards.

Pro Tip: Build the required documentation list directly into your purchase order line items, not just the terms and conditions. Make each document a conditional delivery requirement. This removes ambiguity and gives you leverage if a supplier tries to ship without a complete package.

A critical oversight many procurement managers make is assuming that an ISO 9001 certificate covers everything. ISO 9001 certifies that a quality management system exists. It does not certify that the system produces results that meet your specific API or ASME requirements. Those outcomes still depend on the supplier's engineering team understanding what the standards actually demand. Reviewing a completed precision fabrication process from a comparable project is a far more reliable indicator of capability than any wall certificate alone.

Statistic callout: Studies across multiple upstream oil and gas operators indicate that inadequate supplier documentation is a contributing factor in more than 40% of non-conformance incidents during installation and commissioning. The paperwork is not bureaucracy. It is risk management.

The uncomfortable truth about precision in oil & gas suppliers

Here is the view that most supplier qualification guides will not say plainly: brand reputation does not machine your valve seats. The engineering team at the shop floor does.

We have seen cases where a globally recognized supplier name on a purchase order became an obstacle rather than an assurance. Under delivery pressure, established shops cut inspection steps, delegate critical lapping operations to less experienced technicians, and ship parts with incomplete documentation, betting that incoming inspection at the customer site is lax. And often it is.

The companies that consistently deliver precision components without incident share a different characteristic. They are not always the largest names. They are the ones with transparent process documentation, engineers who actively engage with the drawing rather than just route it to production, and a willingness to share real-time inspection data before the part ships. This is exactly the mindset behind rigorous quality management in CNC operations that serve demanding industries.

The practical implication for procurement is this: move your qualification criteria from "does this supplier have a known name and an ISO certificate" toward "can this supplier show me their process route card from the last three comparable jobs, their CMM calibration records, and a direct conversation with the engineer who will own my program." That shift in criteria will surface better partners and expose gaps in the ones who rely on reputation alone.

Deeper collaboration also means fewer expensive surprises. When a supplier understands your application well enough to flag a potential process conflict before production starts, that conversation saves weeks of rework and thousands of dollars in emergency logistics. It is the difference between a vendor relationship and an engineering partnership.

Get advanced precision solutions for oil & gas projects

For those ready to transform their sourcing approach, specialized partners await to deliver on these high expectations.

WJ Prototypes works directly with procurement managers and engineers in oil and gas to deliver CNC machined components, rapid prototypes, and low-volume production runs that meet the dimensional, surface, and documentation standards your projects demand. Our ISO certified facility offers a full range of CNC machining material options, from duplex stainless steels and Inconel to engineering-grade polymers suited for prototype seal testing. Whether you need first-article prototypes to validate a new valve body design or a small production run of precision-machined spacers for a subsea application, our engineering team engages with your specifications from day one. Request an instant quote or contact our team through our China machining services portal to start an engineering review of your current requirements.

Get An Instant Quote

Explore competitive Rapid Prototyping Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

Frequently asked questions

What surface finish is typically required for oil & gas valve sealing surfaces?

Sealing surfaces usually demand a fine surface finish, often Ra 0.4 µm or better, achieved by finish lapping after grinding and coating, to ensure reliable metal-to-metal contact under pressure.

How fast can in-situ metrology-based machining restore critical equipment in the field?

With laser tracker-driven in-situ milling, energy sector projects have restored base pad flatness and required surface finish within just seven days, compared to three to four weeks for shop-based repair cycles.

Which standards should I reference when specifying precision parts for oil & gas systems?

Key references include API Standard 600 for steel gate valves and ASME B16.5 or B16.10 for flanges and face-to-face dimensions, ensuring global compatibility and verifiable compliance.

What documentation should suppliers provide for precision components?

Suppliers should deliver CMM or laser tracker inspection reports, material certifications tied to specific heat numbers, PMI test results, profilometer surface finish records, and a complete process route card documenting each production and inspection step.
