Custom Chicago Screws: Sourcing Binding Posts from China

TL;DR:
Custom Chicago screws are modular fasteners designed for easy assembly and disassembly in various applications. High-precision manufacturing in China now offers tight tolerances, reliable materials, and customizable finishes for both prototyping and large-scale production. Clear specifications and thorough supplier evaluation are essential for ensuring quality, consistency, and proper fit in every project.

Custom Chicago Screw - Binding Post Screw Manufacturer in China

A custom Chicago screw is a two-piece binding post fastener engineered for modular assembly, clean disassembly, and repeatable use across mechanical, leather goods, and furniture applications. Unlike rivets, Chicago screws offer modularity that lets you update or service a product without destroying the joint. For product designers and engineers sourcing a custom Chicago screw or binding post screw manufacturer in China, the critical variables are dimensional tolerances, material grade, thread pitch, and surface finish. Leading Chinese manufacturers now hold tolerances as tight as ±0.02 mm using automated thread rolling and CNC machining, making China a technically credible source for both prototyping and high-volume production runs.

Get FREE DFM & Quote

Get Custom Chicago Screw Manufactured with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

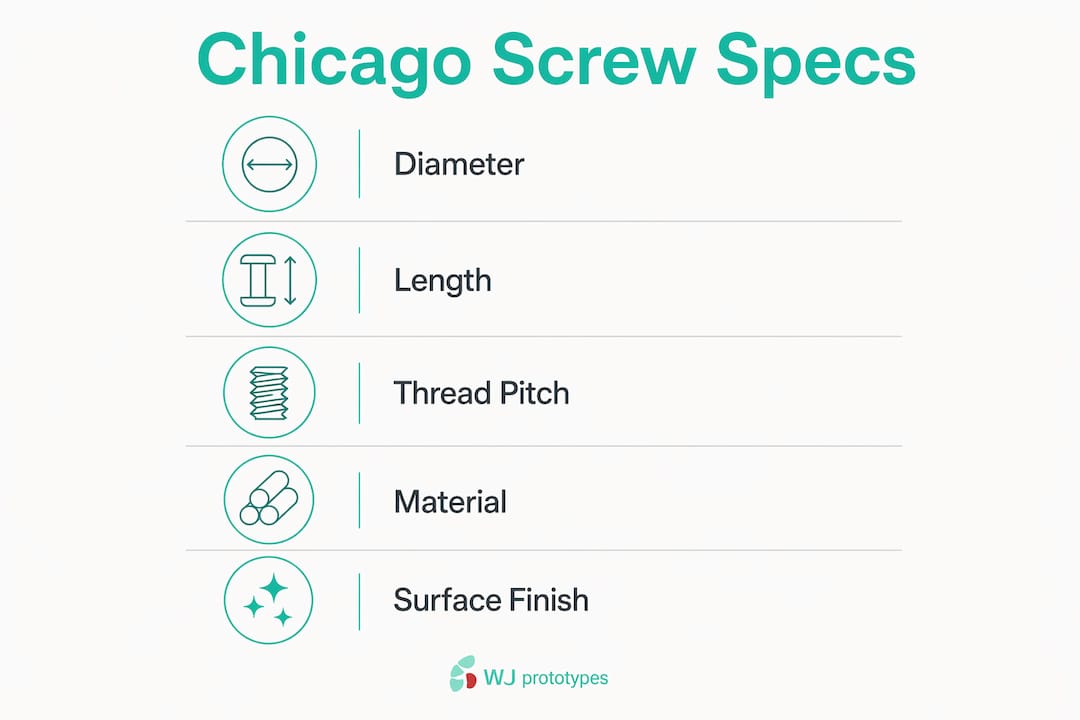

What Are The Standard Specifications For Custom Chicago Screws?

Standard binding post specifications range from 4–6 mm in diameter and 5–20 mm in length. Those dimensions cover the majority of applications in bookbinding, leather goods, bag hardware, and light mechanical assemblies. Knowing where your application falls in that range is the first step before contacting any Chicago screw supplier.

Material options

Material choice determines both performance and cost. The three most common options are:

• 304/316 stainless steel: Best for industrial and outdoor environments where corrosion resistance is non-negotiable. Grade 316 adds molybdenum for superior resistance to chloride environments.
• Brass: The standard choice for decorative and leather applications. Brass suits decorative uses while stainless steel delivers greater industrial strength.
• Zinc alloy: Lower cost, good for interior applications with moderate load requirements. Zinc alloy accepts plating well, which makes it popular for fashion hardware.

Surface finish options

Surface finish affects both aesthetics and corrosion performance. Customization services include polished nickel, matte black, antique brass, gold plating, and rainbow coatings. Each finish carries a different durability profile. Polished nickel and gold plating suit consumer products. Matte black and antique brass work well for leather craft and furniture. Rainbow coatings appear in fashion accessories where visual differentiation matters.

Head and end designs

Functional end designs include flat heads, round heads, recessed ends, and slotted or hex-drive configurations. The drive type affects assembly speed on the production floor. Hex drives allow torque tools; slotted ends suit hand assembly. Specifying the wrong drive type adds labor cost and risks stripping during installation.

How Do Advanced Manufacturing Technologies Affect Binding Post Quality?

Automated thread rolling and precision CNC machining enable dimensional tolerances as tight as ±0.02 mm in 2026 production environments. That level of precision matters because a binding post with inconsistent thread pitch will jam or strip during assembly, creating costly rework at the production stage. Tight tolerances are not a marketing claim. They are a measurable outcome of the manufacturing process.

Thread engagement precision is more critical than head finish for ensuring smooth assembly and long-term durability. A beautifully plated screw with sloppy thread geometry will fail in service. Specifying detailed thread pitch in your drawing is the single most effective way to prevent this problem.

Key quality assurance steps at capable manufacturers include:

• Thread rolling verification: Automated rolling produces stronger threads than cutting because it work-hardens the material. Verify that your supplier uses rolling, not cutting, for structural applications.
• Dimensional inspection: Coordinate measuring machines (CMMs) or optical comparators check diameter and length against drawing tolerances.
• Surface treatment testing: Salt spray testing per ASTM B117 confirms corrosion resistance for plated and coated finishes.
• Thread engagement testing: Go/no-go gauges confirm that male and female components assemble and disengage within specification.

High-volume production benefits from factories equipped with over 160 advanced machines covering stamping, CNC turning, thread rolling, and surface treatment. That machine density allows a single supplier to control every step of the process. Single-source manufacturing reduces variation between batches, which is critical when you scale from prototype to production.

Pro Tip: Ask your manufacturer for a First Article Inspection (FAI) report before approving production. An FAI documents every critical dimension against your drawing and gives you a written baseline for every future batch.

You can learn more about how CNC machining quality control applies to fastener production in precision manufacturing environments.

Get FREE DFM & Quote

Get Custom Chicago Screw Manufactured with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

What Customization Options Should Engineers Specify When Sourcing From China?

OEM/ODM customization for binding post screws covers non-standard lengths, diameters, thread types, surface finishes, and functional ends. That range supports both industrial and decorative applications. The challenge is not what is available. The challenge is specifying exactly what you need so the manufacturer can select the right process.

The following parameters belong in every custom binding screw inquiry:

1. Nominal diameter and length: State both in millimeters with tolerances. Do not leave tolerances open-ended.
2. Thread pitch and type: Specify metric (M-series) or unified (UNC/UNF). Mismatched thread standards between male and female components cause assembly failure.
3. Material grade: Call out the alloy designation, not just the metal name. "Stainless steel" is not a specification. "304 stainless steel per ASTM A276" is.
4. Surface finish and thickness: State the finish type and minimum coating thickness in microns. Gold plating at 0.1 microns behaves very differently from gold plating at 0.5 microns.
5. Drive type and head geometry: Provide a 2D drawing or reference standard (e.g., DIN 84 for slotted cheese head).
6. Application context: Describe the material being fastened (leather, aluminum, plastic), the expected torque, and the service environment. Detailed application info directly influences whether the manufacturer recommends cold forging, CNC turning, or stamping.

Pro Tip: Request sample sets with incremental length variations in 1 mm steps when prototyping. Testing physical samples across a size range is faster and cheaper than iterating on drawings alone.

For engineers working with custom CNC machining in China, the same specification discipline that applies to structural parts applies to fasteners. Vague drawings produce vague parts.

What Practical Tips Ensure A Successful Partnership With Chinese Manufacturers?

Choosing the right binding post screw manufacturer in China requires evaluating process capability, not just price. Vetting manufacturers for full-process capability and in-house quality testing reduces the risk of thread smoothness issues and structural inconsistencies. A supplier who outsources surface treatment to a third party introduces a quality control gap that is difficult to audit.

Key criteria for evaluating a wholesale binding screws supplier:

• Full in-house process: Threading, surface treatment, and quality testing should all happen under one roof.
• ISO certification: ISO 9001 certification confirms a documented quality management system. Ask for the certificate number and verify it.
• Engineering support: A capable metal binding screw manufacturer assigns an engineer to your project, not just a sales contact. Engineering support accelerates design iteration and catches specification errors early.
• Sample policy: Reputable suppliers provide pre-production samples at low or no cost. Avoid suppliers who skip this step.
• Minimum order quantity (MOQ) flexibility: For prototyping, you need low MOQs. Confirm the supplier can serve both prototype and production volumes without a quality gap between the two.

Low-cost suppliers focusing solely on price rather than full-process quality risk producing screws with poor thread integrity and inconsistent finishes. The cost of a failed fastener in an assembled product far exceeds the savings from a lower unit price.

Clear technical drawings are non-negotiable. A drawing with GD&T callouts, material specifications, and finish requirements leaves no room for interpretation. Suppliers who ask clarifying questions before production are a positive sign. Suppliers who never ask questions are a red flag.

Metal finishing options in industrial metalworking cover a wide range of treatments relevant to Chicago screw applications, from electroplating to anodizing. Understanding the process behind your chosen finish helps you write better specifications and ask better questions during supplier qualification.

Get FREE DFM & Quote

Get Custom Chicago Screw Manufactured with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

Key Takeaways

Custom Chicago screws require precise thread engagement specifications, correct material grade selection, and a manufacturer with full in-house process capability to deliver consistent quality at both prototype and production volumes.

What You Should Learn About Sourcing Binding Posts That Most Guides Skip

Most sourcing guides for custom binding screws focus on price and lead time. Those matter, but they are not where projects fail. Projects fail on thread engagement. I have seen engineers approve a beautiful anodized binding post only to discover that the male and female components bind under torque because the thread pitch was never explicitly specified. The manufacturer made a reasonable assumption. The engineer made a different reasonable assumption. The result was a production run of unusable fasteners.

The fix is simple but requires discipline. Write the thread pitch into every drawing, every purchase order, and every sample request. Do not assume the manufacturer will default to the same standard you are designing to. Chinese manufacturers work across metric, unified, and proprietary thread systems daily. Without a callout, you get whatever the machine is currently set up to run.

Material selection deserves the same rigor. Brass looks identical to zinc alloy under most plating. The structural difference is significant. For leather goods, zinc alloy is fine. For a mechanical assembly that sees repeated torque cycles, brass or stainless steel is the correct choice. Specifying the alloy by designation, not by appearance, is the only way to guarantee you receive what you designed for.

The best binding post manufacturers I have worked with treat the first sample as a conversation, not a deliverable. They send the sample with a dimensional report and ask whether the thread feel, head profile, and finish match your intent. That back-and-forth is where good fasteners get made. If a supplier ships samples without any documentation, that tells you exactly how they will handle production.

— Nas

WJ Prototypes: Custom Binding Post Manufacturing For Engineers

Product designers and engineers who need custom CNC machining services for binding post screws and Chicago screw variants will find WJ Prototypes equipped for both prototyping and production runs. WJ Prototypes is an ISO-certified manufacturer based in China with full in-house capabilities covering CNC machining, thread rolling, surface treatment, and quality inspection.

WJ Prototypes supports OEM/ODM projects with engineering consultation, first article inspection, and flexible order volumes that scale from single prototypes to high-volume production. The rapid prototyping and manufacturing platform includes instant quoting, material selection guidance, and global delivery. Engineers can submit drawings directly and receive a quote without a sales call.

Get FREE DFM & Quote

Get Custom Chicago Screw Manufactured with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

FAQ

What is a Chicago screw used for in manufacturing?

A Chicago screw is a two-piece binding post fastener used to join materials that require periodic disassembly, including leather goods, bookbinding, bag hardware, and light mechanical assemblies. Its modular design makes it reusable, unlike a rivet.

What materials are standard for custom binding post screws?

Standard materials include 304/316 stainless steel for industrial strength, brass for decorative applications, and zinc alloy for cost-sensitive interior uses. Material selection should match the service environment and load requirements.

How tight are the tolerances on Chinese-made Chicago screws?

Leading manufacturers achieve tolerances as tight as ±0.02 mm using automated thread rolling and CNC machining. That precision level supports reliable assembly in both prototype and production volumes.

What should I include in a custom binding screw drawing?

Every drawing should specify nominal diameter, length, thread pitch and type, material alloy designation, surface finish with coating thickness, and drive geometry. Including application context such as torque requirements and the material being fastened helps the manufacturer select the correct production process.

How do I verify a Chinese binding post manufacturer's quality?

Request ISO 9001 certification, a First Article Inspection report with dimensional data, and pre-production samples before approving any production run. Suppliers with full in-house threading, surface treatment, and testing capabilities carry lower quality risk than those who outsource any of those steps.

Can WJ Prototypes Manufacture Chicago Screws?

Yes, WJ Prototypes can manufacture custom Chicago screws. We specialize in precision custom hardware, rapid prototyping, and low-volume production. This allows us to create customized fasteners tailored to your exact project specifications rather than standard off-the-shelf sizes.
