How to Validate IP Ratings with Shenzhen Enclosure Suppliers

2026-08-27 08:45:29


To validate an IP rating from a Shenzhen enclosure supplier, require the full IEC 60529 test report tied to a specimen ID, verify the issuing lab's ISO/IEC 17025 accreditation under ILAC-MRA recognition, and insist on either witnessed or independent third-party testing for any production lot going into a U.S. deployment. That single requirement blocks the most common failure mode: a supplier handing you a PDF that looks official but covers a different model, an empty shell, or a lab with no traceable accreditation.

Here is the six-step validation workflow your procurement team can act on today:

Request the full test report. Demand the IEC 60529 report with report number, test clauses and edition referenced, specimen ID, model number matching your PO, test parameters (nozzle size, pressure, duration), and an explicit statement of whether the sample was an empty shell or a populated unit.
Verify the lab. Confirm the issuing lab holds an ISO/IEC 17025 certificate with a scope that covers IEC 60529 IP testing, and check that the lab is recognized under ILAC-MRA. Use the national accreditation body's online registry (CNAS in China, A2LA or NVLAP in the U.S.) to confirm the certificate number.
Control sample selection and chain of custody. Specify that the tested sample must come from the same production batch as your order. Require courier tracking records, photo timestamps, and batch linking in the report.
Decide: witness or independent lab. For critical infrastructure, outdoor telecom, medical, or high-value orders, require either a witnessed test at the lab or an independent third-party test. For low-risk, low-volume orders with a verified accredited in-house lab, a supplier-provided report may be acceptable.
Set incoming and production QC. Embed gasket inspection, torque spec verification, and random IP retests into your incoming inspection procedure. Require the supplier to provide torque logs and in-line leak test records.
Add contract clauses. Include required documentation, an acceptance testing window, a retest procedure, cost allocation for failed tests, and the right to withhold payment for non-conforming shipments.

Pro Tip: For high-risk orders, insist the supplier provides a batch-linked test report — one tied to a specific specimen and production batch number — plus a short video of the actual test run. A video is harder to fabricate than a PDF and gives you a timestamped record for dispute resolution.

Key Takeaways

Validating IP ratings with Shenzhen enclosure suppliers requires the full IEC 60529 test report tied to a specimen ID, ISO/IEC 17025 accreditation verified under ILAC-MRA, and witnessed or third-party testing for any critical U.S. deployment.

Point	Details
Demand the full test report	Require specimen ID, test parameters, populated/empty sample statement, and IEC 60529 edition on every report.
Verify lab accreditation independently	Confirm ISO/IEC 17025 certificate number on the national accreditation body's registry and check ILAC-MRA recognition.
IP tests are not cumulative	Passing IP67 immersion does not confirm IP66 jet resistance — verify each test was performed and documented separately.
Match test source to risk level	Use the risk matrix: factory reports for low-risk orders, witnessed or independent lab tests for critical U.S. deployments.
WJ Prototypes supports validation	WJ Prototypes provides batch-linked test reports, pre-shipment QC, and ISO/IEC 17025 lab coordination for enclosure orders.

What each IP rating digit actually means

Ingress Protection (IP) ratings are defined by IEC 60529, the international standard that specifies test methods for enclosure protection against solid particles and liquids. The standard does not cover corrosion, UV degradation, icing, or mechanical impact — those require separate tests.

The first digit (0–6) describes protection against solid objects and hazardous parts. A 0 means no protection; a 6 means dust-tight, with no ingress under vacuum test conditions.

The second digit (0–9K) describes liquid ingress protection:

0 — no protection
4 — splash from any direction (IP44 is a common indoor industrial rating)
5 — low-pressure water jets (IP54, IP65)
6 — high-pressure jets (IP66)
7 — temporary immersion up to 1 meter for 30 minutes (IP67)
8 — continuous immersion beyond 1 meter, conditions agreed between manufacturer and user (IP68)
9K — high-pressure, high-temperature wash-down (IP69K, common in food processing and automotive wash bays)

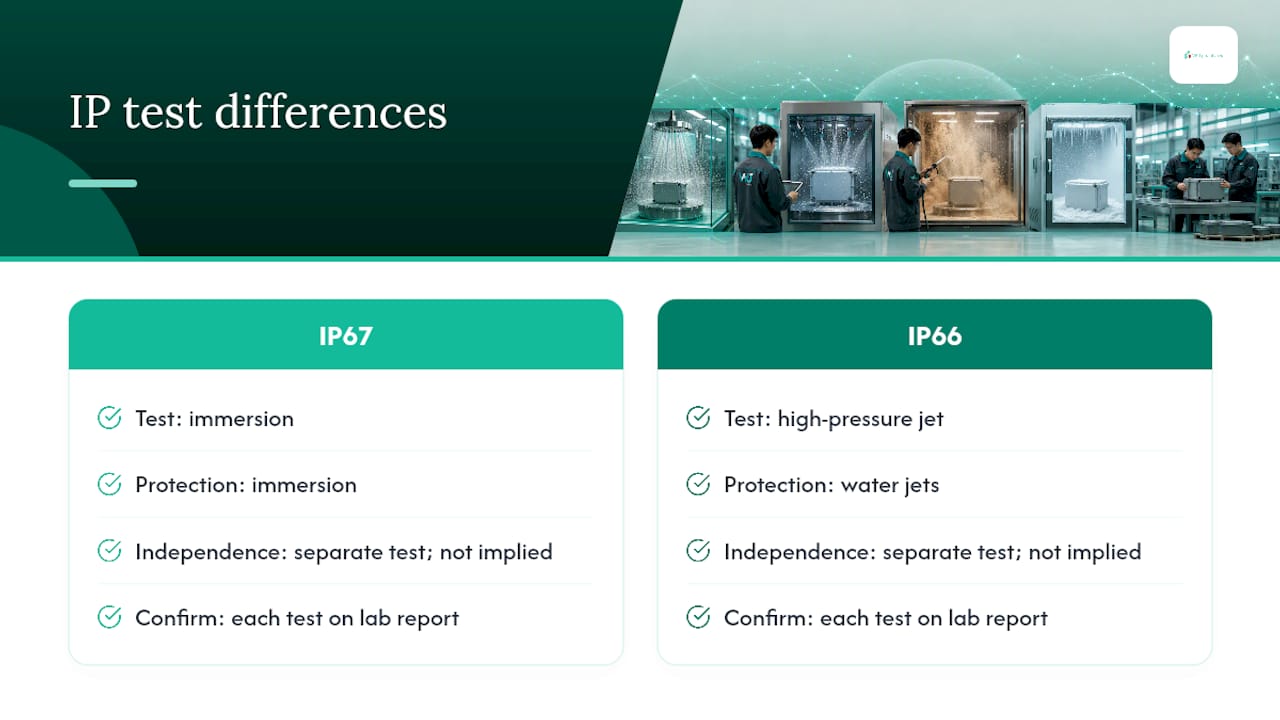

One point that trips up procurement teams: IP tests are independent failure modes. An enclosure that passes IP67 immersion has not automatically passed IP66 jet resistance. Each test exercises a different failure path, so you must confirm every required test was performed and documented separately on the report.

Each corresponds to specific IP rating levels.

For U.S. deployments, note that NEMA 250 covers additional environmental factors IEC 60529 explicitly excludes. More on that in the NEMA section below.

Exact documents to request from a Shenzhen enclosure supplier

The document package you request upfront determines whether you can accept or reject a shipment with confidence. Certificate numbers must be cross-checked with issuing body registries — a PDF alone is not a sufficient trust signal.

Core test report fields to verify:

Report number and issuing lab name
IEC 60529 edition and amendment referenced (the 2013 amendment added IP69K procedures)
Specimen ID and model number — must match your PO exactly
Whether the sample was an empty shell or a fully populated, production-representative unit
Test parameters: nozzle size, water pressure, flow rate, duration, and distance for each test performed
Test date, technician signature, and lab stamp

Lab accreditation evidence:

ISO/IEC 17025 certificate number and expiry date for the issuing lab
The lab's accreditation scope document confirming IEC 60529 IP testing is listed
ILAC-MRA recognition status (check the ILAC website directly)

Photographic and video evidence:

Photos of the tested specimen showing the label, model number, and any applied markings
Short video of the actual test run (jet, immersion, or wash-down as applicable)
Courier tracking records or chain-of-custody documentation for the physical sample

Certificates (CE, UL, TÜV) only when they cover your specific SKU. A CE mark on a product family does not automatically cover every variant. Cross-check the certificate number on the issuing body's registry against the exact model number on your PO.

Pro Tip: Paste this into your RFQ: "Supplier must provide the full IEC 60529 test report (report number, specimen ID, test parameters, populated vs. empty sample statement), ISO/IEC 17025 accreditation certificate for the issuing lab with scope showing IP testing, ILAC-MRA recognition confirmation, and photographic/video evidence of the tested specimen. Documents must be provided before shipment approval."

How to verify the lab, the report, and the accreditation

Receiving a report is step one. Confirming it is genuine and covers what it claims is step two — and most procurement teams skip it.

Step-by-step lab verification:

Find the lab name and ISO/IEC 17025 certificate number on the test report.
Go to the national accreditation body's website. For Chinese labs, that is CNAS (China National Accreditation Service for Conformity Assessment). For U.S.-based labs, use A2LA or NVLAP. Search the certificate number directly.
Confirm the lab's accreditation scope lists IEC 60529 IP testing — not just "environmental testing" generically.
Check the ILAC website to confirm the accreditation body itself is an ILAC-MRA signatory. ISO/IEC 17025 accreditation combined with ILAC-MRA recognition is the primary trust signal that a lab's results will be accepted by U.S. procurement and NRTL contexts.
Cross-reference the report's specimen ID, test date, and test parameters against what the lab has on file. Send a short verification email to the lab asking them to confirm the report number and specimen ID on lab letterhead.

What mismatches look like:

Model number on the report differs from the model number on your PO
Test date predates the product's design freeze or tooling completion
Certificate expiry date has passed
Report references an older IEC 60529 edition without the IP9K amendment
Signature field is blank or stamped but not signed
Lab scope does not list IEC 60529 explicitly

When sourcing from China, certificate fraud is a documented risk — suppliers occasionally present certificates that cover a different SKU or were issued to a different legal entity. Cross-checking the certificate number on the issuing body's registry takes under five minutes and eliminates that risk entirely.

Pro Tip: Send this to the lab directly: "Please confirm on lab letterhead that report number [X] was issued for specimen ID [Y] on [date], and that your ISO/IEC 17025 accreditation (certificate number [Z]) was valid on that date and covers IEC 60529 IP testing." A lab with nothing to hide responds within 24–48 hours.

Factory testing vs. third-party testing: when each is acceptable

The right answer depends on order value, deployment environment, and your client's compliance requirements — not a blanket rule.

When supplier-provided factory tests are acceptable:

Low-risk internal projects or R&D prototypes where regulatory compliance is not required
Low-volume orders where the cost of independent testing exceeds the risk exposure
Supplier runs an in-house lab that holds its own ISO/IEC 17025 accreditation with a scope covering IEC 60529 — and you have verified that accreditation independently

A supplier's in-house test that matches IEC parameters and is run in an ISO/IEC 17025 accredited facility may be acceptable for low-risk uses. For critical U.S. deployments, an independent lab or witnessed run is still the stronger choice to avoid audit exposure.

When to insist on third-party or witnessed testing:

Critical infrastructure, outdoor telecom, marine, or medical applications
Tender or contract requirements that specify independent certification
Any order where the report shows anomalies (model mismatch, missing parameters, unsigned)
First-time orders with a new supplier, regardless of risk level

Decision flow — use this risk matrix:

Order value under $5,000 + low-risk environment + verified accredited in-house lab: factory report acceptable with document verification
Order value $5,000–$50,000 + moderate environment (outdoor, industrial): require third-party lab report or remote witnessed test
Order value over $50,000 + critical environment + U.S. regulatory exposure: require independent lab test with full chain of custody and witnessed run

Vetting a China enclosure factory requires verifying the scope of ISO 9001 and product certifications, auditing production controls, and confirming the factory understands both IP and NEMA expectations. A shop-floor audit — either in person or through a third-party auditor — is the most reliable way to confirm a supplier's in-house testing is genuinely traceable. For sourcing guidance on sheet metal enclosures from Shenzhen, supplier audit checklists follow the same logic.

Sample selection, chain of custody, and witnessing tests

The tested sample must represent what you will actually receive. A golden sample machined to tighter tolerances than production units is a common source of IP validation failures in the field.

Numbered steps for defensible sampling:

Specify in the PO that the test sample must be drawn from the same production batch as the order, not a pre-production prototype.
Require the supplier to photograph the sample with its label visible before shipping to the lab.
Use a courier with tracking (DHL, FedEx, or equivalent) and retain the tracking number as part of the chain-of-custody record.
Require the lab to photograph the sample on receipt and include those photos in the report.
Confirm the batch number and serial range appear on both the test report and the shipping documentation.

Witnessing options:

Remote video witness: a buyer-appointed observer joins the test via live video stream. Lower cost, acceptable for moderate-risk orders, but provides less legal weight than physical presence.
Third-party witness at the lab: an independent inspector (SGS, Intertek, Bureau Veritas) attends the test in person. Strongest evidence for high-value or regulated projects.
In-factory witnessed test: useful when the supplier has an accredited in-house lab. Combine with a factory audit for maximum coverage.

A two-gate QC framework — factory pre-shipment sampling plus warehouse consolidation QC with randomized third-party IP tests tied to production batch IDs — reduces the risk of non-conforming units reaching your customer.

Quick checklist for sample selection (paste into RFQ):

Sample drawn from production batch, not pre-production
Label and model number photographed before dispatch
Courier tracking number recorded and retained
Batch number appears on test report and shipping docs
Witness confirmation (name, date, method) included in report

Incoming inspection and production controls to maintain an IP rating

A validated IP rating at prototype stage means nothing if production controls let gasket compression drift or torque specs go unmonitored. Here is what to require.

Incoming inspection checklist:

Visual gasket fit: no gaps, cuts, or compression set visible
Wall thickness spot-check against drawing tolerances
Torque spec verification on lid fasteners (supplier must provide the torque specification in writing)
Random IP retest on a sample from each incoming lot — AQL 2.5 is a reasonable starting point for moderate-risk orders; AQL 1.0 for critical applications

In-process controls (IPQC) to request from the supplier:

Torque logs for every production run, tied to batch ID
Gasket compression dimension records
Dimensional checks on sealing surfaces
In-line leak test records (pressure decay or bubble test)

Pre-shipment QC:

Random third-party IP retest on a percentage of units from the final lot (specify the percentage in the contract — even 1–2% of a large lot provides meaningful coverage)
Photographic evidence of tested units with visible batch/serial markings
Full documentation traceability: pallet IDs linked to batch records and test certificates

For aerospace or safety-critical enclosure applications, the same traceability practices apply with even tighter AQL requirements and mandatory third-party sign-off.

Pro Tip: Embed this in your contract: "Supplier shall maintain torque logs, gasket compression records, and in-line leak test records for each production batch. Records must be available for buyer review within 48 hours of request. Failure to produce records within this window constitutes grounds for shipment hold."

U.S. considerations: mapping IP to NEMA and what else to request

IP ratings and NEMA ratings are not interchangeable. NEMA 250 covers environmental factors that IEC 60529 explicitly excludes, and U.S. buyers frequently discover this gap after a field failure.

What NEMA includes that IP does not:

Icing and ice formation resistance
Oil and coolant resistance (NEMA 4X, 12)
Corrosion resistance under prolonged exposure
Ingress under sustained pressure differentials
Gasket aging and seal degradation over time

IEC 60529 excludes corrosion, UV aging, icing, and other environmental degradation modes from its scope. For U.S. deployments in harsh environments, IP alone is insufficient.

Additional tests to request for U.S. deployments:

Salt fog / corrosion resistance (ASTM B117 or equivalent) for coastal or industrial environments
UV/UVB exposure testing for outdoor enclosures
IK impact rating (IEC 62262) for enclosures subject to mechanical impact
Oil resistance testing for NEMA 12 equivalence
Icing test for cold-climate outdoor installations

For outdoor, industrial, or marine applications, require both IP test reports and the additional NEMA-relevant tests. Many Shenzhen supplier catalogs omit these unless explicitly requested. Material selection — aluminum alloys, PC/ABS blends, gasket compounds — directly affects long-term IP and corrosion performance, so specify materials in the RFQ, not just the IP rating.

Pro Tip: If your contract requires NEMA equivalence, require a test matrix showing both the IEC IP tests performed and the additional NEMA-relevant tests (or documented equivalence). A supplier who cannot produce this matrix has not actually validated NEMA compliance.

How to pick a test lab and what to expect on lead times and costs

UL, Intertek, TÜV Rheinland, and SGS are the four labs U.S. procurement teams encounter most often when sourcing from Shenzhen. Each has a different footprint and recognition profile.

Lab comparison:

UL (Underwriters Laboratories): strongest brand recognition with U.S. buyers and NRTLs; operates labs in Guangdong; UL marks carry direct weight in U.S. retail and industrial procurement. Best choice when U.S. market acceptance is the primary goal.
Intertek: broad global footprint with labs in Shenzhen and across Guangdong; strong in consumer electronics and telecom enclosures; ETL mark recognized by U.S. NRTLs. Competitive lead times for IP testing in-region.
TÜV Rheinland: well-recognized in industrial and automotive sectors; labs in Guangzhou and Shanghai; reports accepted in both European and U.S. procurement contexts. Particularly strong for IP69K and harsh-environment testing.
SGS: largest global testing network; labs throughout China including Shenzhen; strong for multi-standard testing (IP + salt fog + UV in one engagement). Cost-competitive for bundled test programs.

All four hold ISO/IEC 17025 accreditation and are recognized under ILAC-MRA, which means their reports are accepted in U.S. procurement and NRTL contexts without additional conversion.

Typical lead times:

Initial IP test (single sample, standard rating): 5–15 business days at a Shenzhen/Guangdong lab
Retest after design change: 3–10 business days
Witnessed test (with scheduling): add 3–7 business days for witness coordination
Shipping samples to a U.S.-based lab: add 7–14 days transit plus standard test queue

Ballpark cost ranges for a single-sample IP test:

IPX4/IPX5 (spray/jet): lower end of the range, typically a few hundred dollars
IPX7/IPX8 (immersion): mid-range
IPX9K (high-pressure hot wash): higher end, often $800–$1,500+ depending on lab and scope
Witness fee: typically $300–$800 per day on top of test fees
Rush testing: adds 30–50% to standard fees

Include a testing budget line in your RFQ and specify the percentage of units subject to random third-party retest. That single contract term prevents disputes about who pays when a batch fails — a practical cost-control measure that pre-shipment QC frameworks consistently recommend.

Red flags that should trigger immediate escalation

Run through this list when you receive a supplier's test documentation. Any single item is grounds for escalation before shipment approval.

Document red flags:

Model number on the report does not match the model number on your PO
Specimen ID field is blank or shows "N/A"
Accreditation certificate is expired or the expiry date is missing
Report references an IEC 60529 edition that predates the IP9K amendment (relevant if IP69K is claimed)
Report is unsigned or carries only a rubber stamp with no technician signature
Photos of the tested specimen are absent, generic, or show a different product

Administrative red flags:

Supplier gives evasive or inconsistent answers when asked for the lab's contact information
Supplier refuses to allow you to contact the lab directly
No test video available for jet, immersion, or wash-down tests
Chain-of-custody documentation is missing or the courier tracking number does not match the dates on the report
Certificate numbers differ across documents (e.g., the CE certificate number on the datasheet does not match the number on the physical certificate)

Immediate steps when a red flag appears:

Ask the supplier to provide the lab's direct contact and send a verification email (see the template in the lab verification section above)
Escalate to a third-party retest or require a witnessed test before shipment approval
Document the discrepancy in writing and reference it in any payment hold or dispute communication

Procurement workflow to embed in RFQs and POs

This numbered workflow turns the guidance above into a sequence you can paste directly into supplier agreements.

RFQ stage: specify required IP rating, IEC 60529 edition, populated vs. empty sample requirement, and the full document package (test report, lab accreditation, photos/video, chain of custody). State the percentage of units subject to random third-party retest and who bears the cost if a test fails.
Sample request: issue a formal sample request referencing the production batch. Require the supplier to photograph the sample with label visible before dispatch and provide courier tracking.
Lab verification: upon receipt of the test report, verify the lab's ISO/IEC 17025 certificate and ILAC-MRA status independently. Send the lab a confirmation email. Allow 48 hours for response before escalating.
Witness decision: apply the risk matrix from Section 5. Confirm witness arrangements (remote video, third-party, or in-factory) before production begins, not after.
Production QC: require the supplier to submit torque logs, gasket compression records, and in-line leak test records for each batch. Set a 48-hour response window for record requests.
Incoming inspection: run AQL sampling on arrival. Perform random IP retests on a defined percentage of units. Document results and tie them to pallet IDs.
Dispute resolution: if a random retest fails, trigger the retest clause immediately.

Suggested contract clause language:

"Supplier shall provide the full IEC 60529 test report (including specimen ID, test parameters, and populated/empty sample statement), ISO/IEC 17025 accreditation certificate for the issuing lab, and photographic/video evidence of the tested specimen no later than [X] days before shipment approval."
"Buyer reserves the right to conduct or commission random IP retests on up to [X]% of any shipment lot. If any unit fails, Supplier shall bear the cost of retest and rework, and Buyer may withhold payment for the non-conforming portion of the shipment."
"In the event of a dispute regarding IP rating compliance, both parties agree to appoint a mutually acceptable ISO/IEC 17025 accredited lab for a binding retest within [X] business days. Cost allocation: Supplier bears cost if retest confirms non-conformance; Buyer bears cost if retest confirms conformance."

For metal enclosure sourcing, embedding these clauses at the RFQ stage — before a supplier is selected — is far more effective than trying to negotiate them after a shipment arrives.

How a Shenzhen partner like WJ Prototypes can reduce validation risk

The right manufacturing partner does not just build the enclosure — they manage the documentation chain so your procurement team is not chasing PDFs at the last minute.

Supplier capabilities that materially reduce validation risk:

ISO 9001 certification with documented production controls (torque specs, gasket procedures, dimensional checks)
Established relationships with ISO/IEC 17025 accredited labs in Guangdong for pre-shipment IP testing
Two-gate QC: factory pre-shipment sampling plus warehouse consolidation QC with randomized third-party testing
Digital traceability of batch and test records, tied to pallet IDs and serial ranges
Logistics support for sample chain of custody (courier selection, photo timestamps, tracking documentation)

Concrete deliverables to request from your Shenzhen partner:

Batch-linked test reports (report number tied to production batch ID)
Pre-shipment random third-party test certificates
Photos and short video of the test run
Digital QA logs accessible to the buyer within 48 hours of request

Sample request text for your supplier:

"Please manage IP validation for this order as follows: draw test samples from the production batch, arrange testing at an ISO/IEC 17025 accredited lab (ILAC-MRA recognized), provide full test report with specimen ID and test parameters, and supply photographic and video evidence of the test. Submit all documentation for buyer review no later than [X] days before scheduled shipment. Include batch-linked QA logs and courier tracking for the test sample."

For safety-critical or aerospace-adjacent applications, the same traceability and documentation practices apply with tighter tolerances and mandatory third-party sign-off. WJ Prototypes supports industrial prototyping and low-volume production across sectors where IP rating compliance is a baseline requirement, not an afterthought.

Authoritative standards and testing bodies to consult directly

When verifying reports and labs, go to primary sources — not supplier-provided summaries.

IEC 60529: the defining standard for IP ratings and test procedures. Request the clause references and test parameters listed on any report you receive.
ISO/IEC 17025: the international standard for testing and calibration laboratory competence. Verify certificate numbers at the national accreditation body (CNAS for China, A2LA or NVLAP for the U.S.).
ILAC-MRA: the International Laboratory Accreditation Cooperation Mutual Recognition Arrangement. Check the ILAC website to confirm a lab's accreditation body is a signatory.
TÜV Rheinland: verify certificate numbers at tuv.com/certificate-check.
SGS: verify at sgs.com/certificate-verification.
Intertek: verify at intertek.com/assurance/verify-certification.
UL: verify at iq.ul.com.

For industrial prototyping projects where IEC 60529 compliance is a contract requirement, linking directly to IEC and the relevant national accreditation body in your verification request signals to the supplier that you know how to check their documentation.

What suppliers actually see — and how cooperation speeds things up

From a manufacturer's perspective, IP validation delays almost always trace back to one of two causes: the buyer did not specify the test requirements clearly at the RFQ stage, or the test schedule was not built into the production timeline.

Tooling lead times, test lab scheduling windows, and sample courier transit all add up. A Shenzhen lab running IP69K tests may have a two-week queue. If a buyer requests witnessed testing after production has already started, the schedule impact is significant. Clear test specifications in the RFQ — IP level, populated vs. empty sample, witness requirement, documentation package — let the supplier build the testing into the production plan from day one rather than scrambling at pre-shipment.

Prepayment or cost allocation for third-party tests, specified in the PO, also removes a common friction point. Suppliers are more willing to coordinate independent lab testing when the cost responsibility is agreed in writing before production begins.

WJ Prototypes handles prototyping and IP validation coordination

If you are sourcing IP-rated enclosures from Shenzhen and need a manufacturing partner who manages the documentation chain — not just the fabrication — WJ Prototypes offers CNC machining, sheet metal fabrication, and pre-shipment QC coordination for enclosure projects across industrial, electronics, and outdoor telecom applications.

WJ Prototypes works with ISO/IEC 17025 accredited labs in Guangdong to arrange pre-shipment IP testing, provides batch-linked test reports and digital QA logs, and supports witnessed testing coordination for U.S.-bound orders. The result: your procurement team receives a complete documentation package — test report, accreditation evidence, photos, video, and chain-of-custody records — before shipment approval, not after a dispute. Request a quote for your enclosure project and specify your IP validation requirements at the quoting stage.

Sources

FAQ

How do you verify an IP rating from a supplier?

Request the full IEC 60529 test report with specimen ID and test parameters, then independently confirm the issuing lab's ISO/IEC 17025 certificate number on the national accreditation body's registry (CNAS for Chinese labs) and check ILAC-MRA recognition.

What is an IP enclosure rating?

An IP (Ingress Protection) rating, defined by IEC 60529, uses two digits to describe an enclosure's protection against solid particles (first digit, 0–6) and liquids (second digit, 0–9K), with each digit corresponding to a specific standardized test.

What is the minimum IP rating for outdoor enclosures?

IP54 is a common baseline for general outdoor use, but harsh environments — coastal, industrial wash-down, or direct rain exposure — typically require IP65 or higher. U.S.

Does IP67 automatically include IP66 protection?

No. IP tests are independent: an enclosure rated IP67 for immersion has not necessarily passed the IP66 high-pressure jet test. Buyers must confirm each required test was performed and documented separately on the lab report.

What is the minimum IP rating for barriers and electrical enclosures?

The minimum varies by application and jurisdiction, but NFPA (NEC) and UL standards for U.S.
