What Is Rapid Tooling? Guide For Faster Product Development

Traditional tooling methods can delay product launches by weeks or months. Rapid tooling reduces lead times by up to 70% by combining additive manufacturing with conventional techniques. This hybrid approach transforms how aerospace, automotive, and medical engineers create functional prototypes and production parts. You’ll discover the technologies, materials, and practical strategies that make rapid tooling essential for competitive product development in 2026.

Table of Contents

• Introduction To Rapid Tooling
• Core Technologies And Materials Used In Rapid Tooling
• Impact Of Rapid Tooling On Aerospace, Automotive, And Medical Sectors
• Common Misconceptions About Rapid Tooling
• Framework For Choosing The Right Rapid Tooling Approach
• Integrating Rapid Tooling Into Product Development Workflows
• Real World Case Studies Of Rapid Tooling Applications
• Explore Rapid Tooling Services At WJ Prototypes
• FAQ

Key takeaways

Introduction To Rapid Tooling

Rapid tooling represents a fundamental shift in manufacturing strategy. It merges additive manufacturing technologies like SLA, SLS, and MJF with traditional methods such as CNC machining and injection molding. This hybrid approach produces tooling inserts, molds, and fixtures dramatically faster than conventional fabrication.

Traditional tooling relies on machining hardened steel or aluminum blocks. This process demands specialized skills, multiple setup operations, and extensive finishing work. Lead times stretch from 8 to 16 weeks for complex tools. Costs escalate quickly because each design change requires reworking the entire tool.

Rapid tooling flips this model. You start with 3D printed cores or patterns, then enhance them with machining or coating as needed. Changes happen in CAD files, not metal. New iterations take days, not months. This flexibility proves critical during prototype validation when design tweaks are inevitable.

The business case becomes compelling for low to medium volume production runs. Traditional tooling makes economic sense above 10,000 units where amortized costs drop. Below that threshold, rapid tooling delivers faster ROI. You avoid the upfront investment in hardened steel tooling that might become obsolete after the first design revision.

Key differences between approaches include:

• Lead time: Traditional tooling requires 8 to 16 weeks; rapid tooling completes in 3 to 10 days
• Initial cost: Conventional methods demand $15,000 to $100,000; rapid approaches start at $2,000 to $20,000
• Design flexibility: Traditional tooling locks in geometry early; rapid tooling accommodates late stage changes
• Volume economics: Conventional wins above 10,000 parts; rapid excels for runs under 5,000 units
• Complexity handling: Traditional struggles with intricate internal geometries; additive methods create complex features easily

This speed and flexibility matter most during product development phases. Engineers validate form, fit, and function with production intent materials before committing to expensive hard tooling. Fast prototyping turnaround enables multiple design iterations within the same timeline traditional methods need for a single tool.

For companies targeting rapid prototyping in China, understanding these distinctions helps align manufacturing strategy with business objectives. The choice isn’t always binary. Many successful projects use rapid tooling for validation, then transition to traditional methods for mass production.

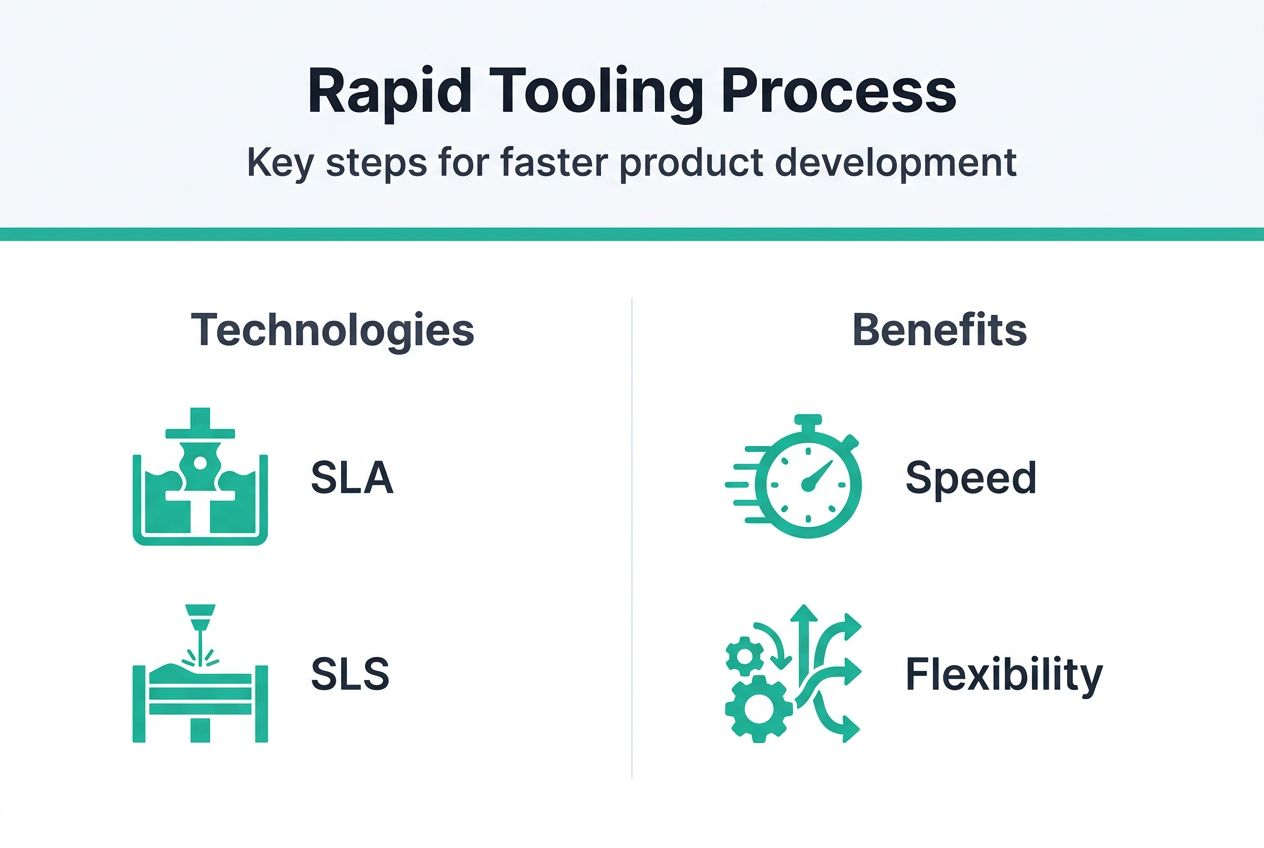

Core Technologies And Materials Used In Rapid Tooling

SLA stereolithography builds tools layer by layer using UV cured resins. This process excels at creating mold cavities with smooth surface finishes and fine details down to 0.05mm. You’ll find SLA tooling in applications requiring tight tolerances and excellent cosmetic appearance. The technology supports both rigid and flexible materials, though thermal stability limits SLA tools to lower injection pressures.

SLS selective laser sintering fuses nylon or composite powders without support structures. This freedom enables complex geometries impossible with traditional machining. SLS tools handle moderate production volumes and resist wear better than SLA. The slightly rougher surface texture suits functional prototypes where aesthetics matter less than mechanical properties.

MJF multi jet fusion delivers production grade mechanical properties with faster build speeds than SLS. The technology creates dense, isotropic parts suitable for jigs, fixtures, and low volume tooling inserts. MJF components exhibit excellent dimensional stability across temperature ranges, making them viable for automotive under hood applications.

Traditional methods enhance additive foundations. CNC machining adds precision surfaces, mounting features, and critical dimensions to 3D printed cores. This combination preserves the speed advantage while meeting tighter tolerances. Vacuum casting uses silicone molds created from master patterns to produce 20 to 50 polyurethane parts. The process replicates fine details and supports shore hardness ranges from soft rubber to rigid plastic.

Material selection drives functional performance. Rigid resins suit visual prototypes and fit testing. Engineering grade nylons handle mechanical loads and repetitive cycles. Metal filled composites provide thermal conductivity for cooling channels in molds. Understanding these properties helps you match materials to application demands.

Polymer options include:

• ABS like resins for impact resistance and machinability in consumer product housings
• High temperature resins withstanding 200°C for automotive engine bay components
• Biocompatible materials meeting ISO 10993 standards for medical device contact parts
• Flame retardant compounds satisfying UL94 V0 requirements for electronics enclosures

Metal capabilities extend rapid tooling into demanding environments. DMLS direct metal laser sintering produces steel and aluminum tooling inserts with conformal cooling channels. These optimize cycle times in injection molding while maintaining surface hardness above 50 HRC. The technology costs more than polymer methods but delivers durability for higher volume runs.

Pro Tip: Lock in your material and technology choices during the design phase to avoid compatibility issues later. Running a small test build verifies mechanical properties and surface finish before committing to full tooling production.

The right rapid prototyping approach balances these technical factors against project constraints. Start by defining minimum acceptable tolerances, expected production volume, and operating environment. Then work backward to identify technologies and materials that meet those requirements within budget and timeline.

Impact Of Rapid Tooling On Aerospace, Automotive, And Medical Sectors

Aerospace manufacturers face stringent certification requirements and zero defect tolerance. Rapid tooling enables faster design validation without sacrificing quality standards. Engineers test composite layup tools, drilling jigs, and assembly fixtures under actual production conditions. This verification happens in weeks rather than months, compressing development cycles by 40 to 60%.

The technology particularly benefits low volume aerospace components. Production runs of 50 to 500 units don’t justify $80,000 injection mold investments. Rapid tooling delivers the same part quality for $12,000 to $25,000. Cost per part remains competitive while preserving capital for other program needs.

Automotive development timelines demand rapid iteration. Studio models require Class A surface finishes that traditional sculpting takes weeks to achieve. SLA tooling produces show quality parts in 5 to 7 days. Design teams evaluate proportions, ergonomics, and styling details while competitors are still waiting for clay models.

Functional testing drives another use case. Crash test components, underhood brackets, and interior trim pieces need production intent materials. Rapid tooling creates these parts using the same polymers or composites specified for mass production. Engineers validate performance before cutting steel tools, reducing the risk of expensive modifications after tool build.

Medical device development operates under FDA oversight requiring extensive documentation. Rapid tooling reduces regulatory feedback cycles by approximately 50% by enabling faster prototype iterations. Design verification testing happens earlier in the development process. You submit better optimized devices for regulatory review, cutting overall approval timelines.

Rapid tooling helps medical device designers accelerate regulatory feedback loops by producing compliant prototypes faster, reducing regulatory prototyping phase by approximately 50%.

Sector specific advantages include:

• Aerospace: Conformal cooling channels in composite layup molds improve cure uniformity and reduce cycle times by 30%
• Automotive: Rapid tooling supports multiple design variants for regional market preferences without proportional cost increases
• Medical: Biocompatible materials enable functional testing with actual bodily fluids and sterilization protocols
• Cross sector: Complex geometries like internal lattice structures optimize strength to weight ratios impossible with conventional methods

The benefits extend beyond speed. Rapid tooling enables design optimization that traditional methods cannot achieve. Topology optimized structures, organic shapes, and integrated features eliminate assembly steps. These improvements carry forward into production, reducing manufacturing costs and improving product performance.

Regulatory compliance becomes more manageable. Medical device manufacturers maintain design history files showing each iteration. Rapid tooling’s digital workflow automatically documents changes. Traceability improves while administrative burden decreases. Similar benefits apply to aerospace AS9100 and automotive IATF 16949 quality systems.

Material qualification represents another advantage. You test candidate materials under real operating conditions using rapid tooled parts. Performance data informs final material selection before committing to production tooling. This derisks material choices and prevents costly recalls from unexpected field failures.

Common Misconceptions About Rapid Tooling

Many engineers assume rapid tooling always produces inferior quality compared to traditional methods. This belief stems from early additive manufacturing limitations that no longer apply. Modern SLA systems achieve ±0.05mm tolerances matching precision machining. Surface finishes reach Ra 0.4μm with proper post processing. Quality depends more on technology selection and process control than the rapid tooling category itself.

The truth: rapid tooling quality approaches 90 to 95% of traditional standards for most applications. The gap narrows further when comparing apples to apples. A well executed SLS tool often outperforms a poorly machined aluminum mold. Process expertise matters more than the manufacturing method.

Another misconception limits rapid tooling to prototype applications only. This outdated view ignores vacuum casting tools producing 500+ parts or DMLS inserts lasting 50,000+ injection molding cycles. The line between prototyping and production has blurred. What qualifies as production depends on volume requirements, not the tooling method.

Reality check: rapid tooling serves functional production when volumes align with tool life capabilities. A medical device with 2,000 unit annual demand fits perfectly within rapid tooling economics. Trying to mold 100,000 automotive parts from an SLA tool would fail. Match the tool to the volume, not the volume to preconceptions about tooling methods.

Some believe rapid tooling costs more per part than traditional approaches. This comparison ignores total program costs. Traditional tooling demands $40,000 to $120,000 upfront before producing the first part. Rapid tooling starts at $3,000 to $25,000. For runs under 1,000 units, the break even strongly favors rapid methods even with slightly higher per part costs.

Common myths versus facts:

• Myth: Rapid tools cannot handle production materials;
• Fact:MJF and DMLS support the same engineering polymers and metals used in mass production

• Myth: Surface finish always looks rough and layered;
• Fact: Proper post processing achieves Class A cosmetic finishes indistinguishable from machined surfaces

• Myth: Tolerances are too loose for precision assemblies;
• Fact:SLA and machined hybrid tools hold ±0.025mm on critical dimensions

• Myth: Tool life maxes out at 50 parts;
• Fact: Vacuum casting molds produce 500 parts, DMLS inserts exceed 50,000 cycles with proper maintenance

Pro Tip: Request sample parts and tooling qualification reports before dismissing rapid tooling for your application. Seeing actual results beats assumptions every time. Many suppliers offer trial runs at reduced cost to demonstrate capability.

The perceived quality gap often results from comparing different design requirements. Traditional tooling for 100,000+ unit runs justifies extensive polishing, texturing, and hardening. Rapid tooling for 500 units optimizes differently, focusing on faster turnaround rather than maximum tool life. Both deliver appropriate quality for their intended volumes.

Technology and material selection directly influence outcomes. Choosing SLA for a high temperature application guarantees problems. Specifying DMLS for a visual prototype wastes money. Understanding each method’s strengths and limitations ensures successful results. The tooling approach matters less than applying it correctly.

Framework For Choosing The Right Rapid Tooling Approach

Effective rapid tooling selection balances three competing priorities: speed, cost, and quality. You cannot optimize all three simultaneously. Understanding these trade-offs prevents mismatched expectations and project failures.

Speed prioritization suits urgent market windows or time sensitive validation milestones. SLA delivers parts fastest, often within 3 to 5 days from file to finished tool. You sacrifice some durability and accept higher per part costs. This trade-off makes sense when being first to market generates more revenue than the incremental tooling expense.

Cost optimization targets maximum parts per dollar spent. Vacuum casting produces the lowest per part cost for volumes between 20 and 500 units. Initial mold investment remains modest at $800 to $3,500. Each casting costs $15 to $80 depending on size and material. The total program cost undercuts injection molding until volumes exceed 1,000 units.

Quality focus demands precision, surface finish, and material properties matching final production specifications. CNC machined aluminum tooling with SLA inserts combines the best attributes of both technologies. You achieve ±0.025mm tolerances where needed while preserving complex geometries. This hybrid approach costs more and takes longer but delivers production worthy results.

Production volume fundamentally shapes tooling decisions:

1. Define your total required quantity across the product lifecycle, including spares and anticipated design changes
2. Calculate break even points comparing rapid tooling per part costs against traditional tooling amortized over volume
3. Assess likelihood of design modifications that would obsolete expensive hard tooling
4. Select the approach minimizing total program cost while meeting quality and timeline requirements
5. Build in contingency for volume uncertainty by choosing methods with lower upfront investment

Part geometry complexity influences technology compatibility. Deep narrow ribs, internal channels, and undercuts challenge traditional machining. These features build easily with additive methods. Conversely, large flat surfaces with tight flatness tolerances favor CNC machining. Hybrid approaches handle complex geometries with precision critical surfaces.

Budget constraints require honest assessment. A $5,000 tooling budget eliminates DMLS and limits CNC options. SLA or vacuum casting become viable paths forward. Trying to force precision machining into an inadequate budget guarantees disappointment. Better to choose an appropriate method and adjust quality expectations than to under resource a premium approach.

Material compatibility connects tooling method to final part requirements. Medical applications needing USP Class VI biocompatibility narrow choices to specific resins and casting polyurethanes. High temperature automotive uses demand materials stable above 150°C. Cross reference your functional requirements against material datasheets before finalizing tooling technology.

The selection process works best when you engage manufacturing partners early. Share CAD models, volume forecasts, and performance requirements during the quote phase. Experienced providers recommend optimal approaches you might not have considered. Their input often reveals cost saving alternatives or hybrid methods matching your specific needs.

Integrating Rapid Tooling Into Product Development Workflows

Rapid tooling amplifies iterative design practices. Traditional workflows batch design changes to minimize expensive tool rework. This approach delays problem discovery until after tool build. Rapid methods enable testing each iteration under realistic conditions. You find design flaws when fixes cost hours, not weeks.

Successful integration starts with shifting validation earlier in the development timeline. Instead of finalizing designs before tooling, treat initial tools as learning instruments. Build a first generation tool knowing changes will follow. Test, measure, adjust, and rebuild. This cycle costs less and completes faster than trying to perfect designs on paper.

Workflow integration tips by sector:

• Aerospace: Run DFMA analyses on rapid tooled parts to optimize manufacturability before committing to production processes
• Automotive: Create rapid tools for multiple design variants simultaneously, enabling parallel evaluation of styling and packaging options
• Medical: Produce sterilization test articles using rapid tooling to validate packaging and material compatibility before design freeze
• Cross industry: Use rapid tooled parts for customer feedback sessions, incorporating input before finalizing expensive production tooling

Collaboration with manufacturing partners improves outcomes significantly. Share your CAD files with tooling experts during the design phase. They identify features that will cause molding problems, suggest draft angles, and recommend wall thickness adjustments. Making these changes in CAD takes minutes. Fixing them in hard tooling takes weeks and thousands of dollars.

Pro Tip: Schedule a design for manufacturability review with your rapid tooling provider before finalizing part geometry. Their practical insights prevent expensive redesigns and improve final part quality. Most providers offer this consultation at no charge during the quote process.

Documentation practices must adapt to faster iteration cycles. Each rapid tooling generation should capture design intent, test results, and lessons learned. This creates an audit trail showing design evolution. Regulatory submissions benefit from this documentation. Quality systems require it. Good record keeping prevents repeating mistakes across iterations.

Risk reduction represents rapid tooling’s most valuable contribution to workflows. Testing parts in actual use environments reveals problems no simulation can predict. A medical device might pass FEA stress analysis but fail when nurses handle it with gloved hands. Automotive clips might meet pull force specifications yet feel flimsy during assembly. Rapid tooled parts expose these issues early.

Functional testing protocols should match production conditions as closely as possible. Use the correct installation tools. Apply realistic loads and cycles. Expose parts to temperature and humidity extremes. The goal is failing early and learning fast. Each failure in the rapid tooling phase prevents a more expensive failure in production.

Timeline compression comes from parallelizing previously sequential activities. Traditional workflows design, then tool, then test. Rapid tooling enables overlapping these phases. You can test generation one parts while designing generation two improvements and quoting generation three tooling. This parallel processing cuts total development time by 35 to 50%.

The rapid prototyping guide provides additional strategies for workflow integration. Key principles include treating early tools as learning investments, maintaining clear communication with manufacturing partners, and documenting every iteration thoroughly. These practices compound across projects, building organizational capabilities that persist beyond individual products.

Real World Case Studies Of Rapid Tooling Applications

An aerospace manufacturer needed to validate a composite wing spar layup tool for a new UAV platform. Traditional steel tooling would require 14 weeks and cost $95,000. Program timelines demanded first flight in 6 months, leaving minimal margin for tool delays or design changes.

The engineering team specified SLA tooling with CNC machined mounting rails. Build time dropped to 8 days with $18,000 total cost. The hybrid tool achieved ±0.08mm on critical surfaces controlling aerodynamic profiles. Initial layups revealed a fiber bridging issue in a tight radius area. The team modified the CAD file and produced a revised tool in 6 days for $4,200. Traditional tooling would have required 8 weeks and $28,000 for the same modification.

Final results: 6 week reduction in time to first flight, 73% tooling cost savings, and design optimization impossible within the original timeline. The rapid tooling approach enabled three complete design iterations in less time than one traditional tool cycle.

A medical device startup developed an insulin pump housing requiring biocompatible materials and FDA documentation. Injection molding tooling quotes ranged from $45,000 to $75,000 with 12 week lead times. The startup’s seed funding couldn’t support this investment before proving device functionality.

Vacuum casting offered an alternative path. A silicone mold from a 3D printed master cost $2,800 and delivered in 9 days. Each cast polyurethane housing cost $42 in biocompatible material. The team produced 60 units for human factors testing and regulatory submissions.

User testing revealed grip comfort issues. The redesigned housing required only a new $2,800 mold, not reworking a $60,000 steel tool. Regulatory feedback cycles compressed by 45% because the team could respond to FDA questions with physical samples in days rather than months.

Outcome: FDA 510(k) clearance achieved 7 months faster than projected with traditional tooling. Total tooling investment remained under $12,000 across four design iterations. The startup preserved capital for clinical trials and market launch.

An automotive tier one supplier faced a 2,500 unit order for HVAC duct assemblies in a limited production vehicle. The nylon 6 material specification and ±0.15mm tolerance requirements suggested injection molding. However, traditional tooling costs of $65,000 couldn’t be amortized across the small volume.

CNC machined aluminum tooling with MJF printed core inserts provided the solution. The hybrid tool cost $22,000 and completed in 11 days. Production parts met all specifications including a 150°C continuous temperature rating. Tool life exceeded 3,000 cycles before insert replacement became necessary.

The supplier produced all 2,500 parts at a total cost 40% below the injection molding alternative. Program profitability remained positive despite the low volume. The automotive OEM received parts on time for vehicle production start.

Key outcomes across sectors:

• Aerospace achieved 65 to 75% time reductions with design flexibility enabling optimization impossible under traditional constraints
• Medical devices compressed regulatory cycles by 40 to 50% through rapid response to feedback with physical evidence
• Automotive maintained profitability on low volume programs by matching tooling investment to actual production requirements
• All sectors benefited from iterative learning that improved final product quality and reduced downstream manufacturing costs

These examples demonstrate rapid tooling’s versatility across different technical requirements, production volumes, and business constraints. Success factors include realistic expectation setting, appropriate technology selection, and willingness to iterate designs based on test results.

Explore Rapid Tooling Services At Wj Prototypes

WJ Prototypes delivers comprehensive rapid tooling capabilities combining additive manufacturing with precision traditional methods. Our CNC machining services produce tooling components holding ±0.025mm tolerances in aluminum, steel, and engineering plastics. These machined elements integrate seamlessly with SLA, SLS, and MJF printed cores for optimal hybrid tooling solutions.Vacuum casting expertise enables production of 20 to 500 polyurethane parts from silicone molds. This process replicates fine surface details while supporting shore hardness ranges from 20A to 80D. Medical grade and flame retardant materials meet sector specific requirements for biocompatibility and safety certifications.

Our engineering team collaborates with aerospace, automotive, and medical clients to optimize tooling approaches for specific project needs. We analyze part geometry, production volume, and quality requirements to recommend the most cost effective rapid tooling strategy. This consultation includes DFMA feedback preventing common molding problems before tool build.

Material selection guidance ensures compatibility between tooling method and functional requirements. From high temperature nylons to precision machined metals, we match materials to operating environments and performance specifications. Request a quote to discuss your rapid tooling project and accelerate your product development timeline.

FAQ

What is the primary benefit of rapid tooling compared to traditional tooling?

Rapid tooling cuts lead times by 60 to 75% while reducing upfront investment costs for prototype and low volume production applications. This speed advantage enables faster design iteration and earlier market entry. You preserve capital and compress development cycles without sacrificing part quality for appropriate volume ranges.

Which rapid tooling technology is best for high precision aerospace parts?

SLA stereolithography excels for aerospace applications requiring ±0.05mm tolerances and smooth surface finishes. The technology creates complex geometries with fine details impossible through conventional machining. Hybrid approaches combining SLA cores with CNC machined mounting features deliver production worthy precision at rapid tooling speeds.

Can rapid tooling be used for functional low volume production?

Rapid tooling absolutely supports functional production for volumes ranging from 50 to 5,000 units depending on technology choice. Vacuum casting produces durable polyurethane parts meeting mechanical property specifications. DMLS metal inserts withstand 50,000+ injection molding cycles. The key is matching tool life capabilities to your production volume requirements.

How do I choose the right rapid tooling method for my project?

Start by defining your total production volume, required tolerances, budget constraints, and material performance needs. Compare these requirements against each technology’s capabilities using the trade-off framework balancing speed, cost, and quality. Engage rapid prototyping experts early for DFMA guidance ensuring your design aligns with the selected tooling approach.
