A custom pinion gear manufacturer in China is defined as a precision machining facility that produces drive pinions to exact client drawings, tolerances, and performance specifications. China has become the dominant source for bespoke gear production because its manufacturers combine advanced CNC equipment, internationally certified quality systems, and competitive pricing at scale. For product designers and engineers sourcing gears for robotics, automotive, aerospace, or industrial machinery, understanding how Chinese factories operate is the difference between a reliable supply chain and a costly redesign.

What are the essential materials and technologies used in custom pinion gear manufacturing in China?

The material and equipment choices a China pinion gear factory makes determine every downstream quality outcome. Most precision pinion gears start with alloy steels such as 20CrMnTi, 42CrMo, or 40Cr, selected for their toughness, machinability, and response to heat treatment. Stainless steel and brass are used where corrosion resistance or low electrical conductivity matters more than raw strength.

Heat treatment controls up to 80% of a mechanical part's working life. That figure explains why serious manufacturers assign dedicated material engineers to oversee carburizing, quenching, and tempering at every stage, not just at final inspection.

On the machining side, the equipment brand matters as much as the process. Gear grinders like Kapp Niles and Japanese machining centers produce predictable surface accuracy and finish consistency that entry-level domestic machines cannot replicate. Advanced grinding and milling machines correlate directly with tighter tooth profile tolerances and better surface texture across production runs.

Surface finishing is the final variable. Surface coatings reduce friction and noise during operation, which extends both gear and machinery lifespan. Common treatments include phosphating, black oxide, nickel plating, and DLC (diamond-like carbon) coatings, each chosen based on the operating environment.

Key technologies used in custom metal gears production in China:

• CNC hobbing and gear milling for tooth profile generation
• Gear grinding for finishing to AGMA or DIN accuracy grades
• EDM (electrical discharge machining) for complex internal features
• CMM (coordinate measuring machine) inspection for dimensional verification
• Heat treatment furnaces with atmosphere control for consistent metallurgy

Pro Tip: Ask any prospective supplier to name the brand and model of their primary gear grinding machine. A factory that cannot answer quickly likely outsources that step, which adds lead time and reduces your quality control.

Get FREE DFM & Quote

Explore competitive PINION GEARS Manufacturing Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

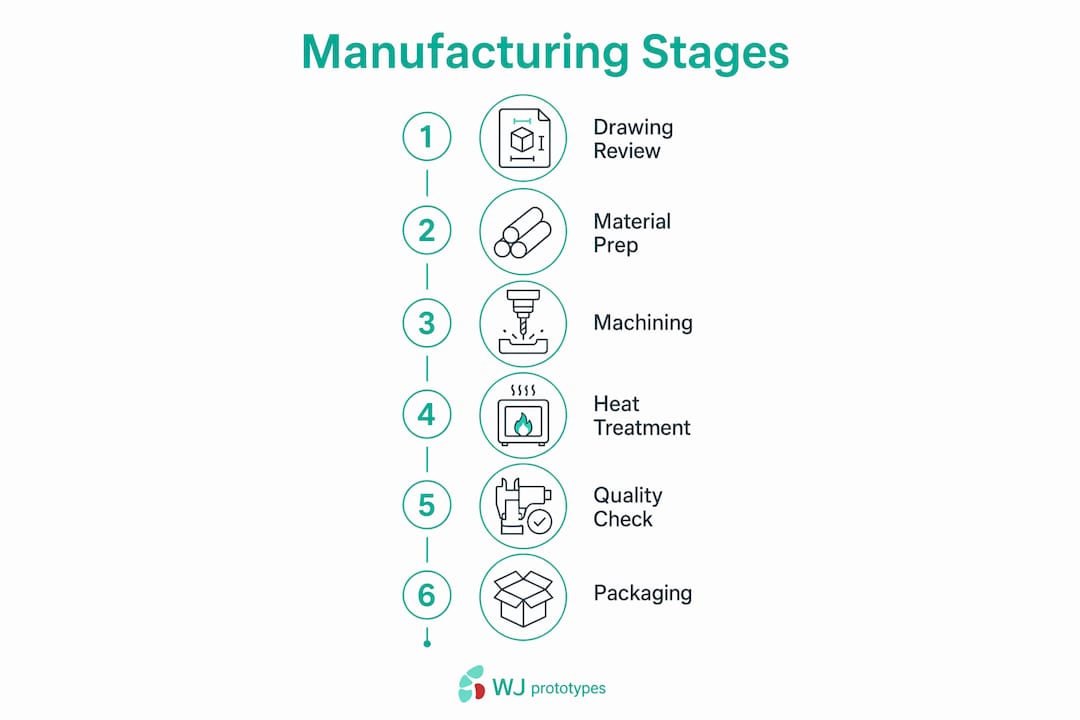

How does the manufacturing process for precision custom pinion gears work?

Precision pinion gear production follows a defined sequence. Skipping or compressing any step introduces defects that compound downstream.

1. Drawing review and DFM feedback. The factory reviews your 2D drawing or 3D model, flags any features that conflict with standard tooling, and proposes adjustments before cutting begins.
2. Material procurement and incoming inspection. Raw bar stock or forgings are sourced and tested for chemical composition and hardness. Raw material inspection is the first gate in a quality system that runs through to final shipment.
3. Rough turning and blanking. The gear blank is turned to near-net shape, leaving stock for subsequent operations.
4. Gear cutting (hobbing or milling). Tooth profiles are generated using hobbing for spur and helical gears, or form milling for lower-volume or complex geometries.
5. Heat treatment. Carburizing, case hardening, or through hardening is applied depending on the alloy and performance requirement. This step locks in the core toughness and surface hardness that determine service life.
6. Gear grinding and finishing. Post-heat-treatment distortion is corrected by grinding to final tooth profile and surface finish specifications.
7. Surface coating application. Phosphating, plating, or specialty coatings are applied based on the operating environment.
8. Final inspection and testing. Gear geometry, runout, surface finish, and hardness are verified against the drawing. Sampling inspections and full dimensional reports accompany shipment.

The table below maps each stage to its primary quality output.

High-precision spur, helical, and pinion gears can be manufactured to exact drawings for both prototype quantities and large production volumes. That flexibility is what makes Chinese suppliers attractive for engineers who need to validate a design before committing to full production. Understanding precision engineering in prototyping helps you structure your order to get useful feedback from the first sample batch.

Get FREE DFM & Quote

Explore competitive PINION GEARS Manufacturing Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

What quality standards should you expect from a reputable China pinion gear factory?

Quality certifications are the minimum entry requirement, not a differentiator. Any reputable custom gear manufacturer in China should hold ISO 9001:2015 certification, which mandates documented process controls, traceability, and corrective action systems. ISO 9001 tells you the factory has a quality management system. It does not tell you how well that system performs in practice.

Industry-specific accuracy standards matter more for gear geometry. The three most referenced are:

• AGMA (American Gear Manufacturers Association): Defines gear accuracy grades from Q3 to Q15, with higher numbers indicating tighter tolerances. Most industrial applications require Q8 or above.
• DIN (Deutsches Institut für Normung): The German standard widely used in European-supplied machinery. DIN 3962 and DIN 3963 govern tooth profile and helix deviations.
• JIS (Japanese Industrial Standards): Common in Asian-manufactured equipment and robotics applications.

Inspection equipment is the practical test of a factory's quality claims. A factory quoting to AGMA Q10 tolerances must own a gear measurement center capable of verifying those tolerances. Ask for the make and model of their CMM and gear tester.

Factory audits and equipment verification are best practice for high-stakes procurement. A factory floor video tour showing equipment brand labels is a minimum for remote vetting. An in-person or third-party audit is worth the cost for any order above prototype quantities.

Pro Tip: Request a first-article inspection (FAI) report with your first production batch. A supplier that resists providing dimensional data on every feature of the first part is signaling a quality system that cannot support your engineering process.

Quality control in CNC machining for Chinese manufacturers covers the specific inspection protocols and acceptance criteria you should build into your purchase order.

How to choose the right custom pinion gear manufacturer in China for your project?

Selecting a pinion gear supplier in Asia requires more than comparing price quotes. The right factory for your project depends on four practical criteria.

Define your performance requirements before contacting suppliers. Providing detailed performance goals such as torque, load, duty cycle, and noise limits early in the conversation improves the manufacturer's solution recommendations. A supplier who responds to a vague inquiry with a generic quote is not engineering your solution. A supplier who asks follow-up questions about operating speed, mounting configuration, and lubrication method is.

Assess technological capability remotely. Request a list of major equipment by brand and model. Factories with imported gear grinding machines, CMMs, and heat treatment furnaces with atmosphere control are equipped for precision work. Factories that list only generic domestic equipment are better suited for lower-accuracy applications.

Review production experience in your industry. Chinese gear manufacturers serving clients across more than 30 countries have built supply chain and quality systems that handle diverse requirements. Ask for case studies or reference parts from your specific industry, whether that is robotics, automotive, or oil and gas.

Plan for prototyping before production. Request a sample or prototype batch before committing to full volume. This step validates the factory's interpretation of your drawing, their dimensional capability, and their communication process under real conditions. Choosing prototyping services for precision results gives you a framework for structuring that evaluation.

Key evaluation checklist for pinion gear suppliers in Asia:

• Confirmed ISO 9001:2015 certification with current certificate number
• Named gear grinding and CMM equipment (brand and model)
• Stated accuracy grade capability (AGMA, DIN, or JIS)
• Sample or FAI report from a comparable past project
• Clear lead time commitments with penalty terms for delays
• Defined communication contact (engineer, not only sales)

Get FREE DFM & Quote

Explore competitive PINION GEARS Manufacturing Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

Key Takeaways

Selecting a custom pinion gear manufacturer in China requires verifying equipment capability, quality certifications, and process discipline before placing any production order.

What I've learned sourcing precision gears from China

The biggest mistake engineers make when sourcing from a China pinion gear factory is treating the RFQ like a commodity purchase. You send a drawing, you get a price, you place an order. That sequence works for standard fasteners. It fails for precision gears because the drawing alone does not capture operating context.

I have seen projects where two factories quoted the same drawing to the same tolerance, but one delivered gears that failed within 200 hours of service. The difference was heat treatment process control, specifically atmosphere management during carburizing. The cheaper factory had the furnace but not the process discipline. The drawing said nothing about that.

The factories worth working with ask uncomfortable questions. They push back on tolerances that are tighter than the application needs, because they know over-specified gears cost more and take longer without adding service life. That kind of feedback is a signal of engineering competence, not a negotiating tactic.

Remote vetting has improved significantly. A factory willing to do a live video walk of the shop floor, showing equipment nameplates and in-process parts, is demonstrating transparency that correlates with quality outcomes. Factories that resist that request deserve your skepticism. The benefits of precision engineering only materialize when the supplier understands your application, not just your drawing.

— Nas

WJ Prototypes: precision gear manufacturing support for engineers

WJ Prototypes operates as an ISO-certified manufacturing partner in China, supporting product designers and engineers from prototype to production. For teams sourcing custom metal gears, WJ Prototypes offers CNC machining services with tight dimensional tolerances, material traceability, and first-article inspection reports as standard.

The material range covers aluminum, stainless steel, alloy steel, and engineering plastics, all documented on the CNC machining materials page. Engineers can upload drawings directly for instant quoting, with lead times suited to both prototype validation and low-volume production runs. WJ Prototypes serves clients in aerospace, robotics, automotive, and industrial machinery, with global delivery and dedicated engineering support at every stage.
