How To Prototype Oilfield Parts Quickly And Securely

TL;DR:
Rapid prototyping with additive manufacturing reduces lead times from months to days, enabling faster oilfield component recovery. Ensuring compliance with API 20S standards and selecting certified suppliers minimizes operational risks and field failures. Proper material choice, thorough validation, and strategic supplier partnerships are essential for safe, reliable, and efficient oilfield production.

Every hour a critical valve, seal housing, or downhole tool sits unavailable, upstream operations can lose tens of thousands of dollars. Traditional fabrication timelines measured in months simply don't fit field reality, and procurement teams know the pain of watching a rig go idle waiting on a single component. AM lead times of 7 days versus the 52 weeks that conventional methods often demand have changed what's possible. This guide walks you through the full process of prototyping oilfield parts fast, from material selection and process choice to compliance verification and supplier vetting.

Table of Contents

• Understanding prototyping for oilfield parts
• What you need: Materials, methods, and prerequisites
• Step-by-step: Prototyping process for oilfield parts
• Troubleshooting and quality verification
• Perspective: What most oil & gas innovators miss about rapid prototyping
• Get oilfield prototypes faster: Services and next steps
• Frequently asked questions

Key Takeaways

Understanding prototyping for oilfield parts

Oilfield environments are among the harshest on earth. Parts face high-pressure, high-temperature (HPHT) conditions, H2S (hydrogen sulfide) exposure, corrosive brines, and continuous mechanical vibration. A prototype that passes lab testing but fails under actual wellbore conditions creates both safety risks and costly rework cycles.

Speed is not optional in this industry. When a subsea manifold component or a wellhead control valve fails at a remote site, your supply chain either delivers fast or production stops. This is why just-in-time (JIT) part supply, enabled by rapid prototyping, has become a strategic priority for operators and service companies alike.

Before you begin any prototyping project, understanding the compliance landscape is critical. The API 20S standard (2025 edition) is the central qualification framework for additive manufacturing (AM) parts in oil and gas. It covers process control, non-destructive testing (NDT) requirements, and defines three Additive Manufacturing Specification Levels (AMSL 1, 2, and 3) based on part criticality. Level 3 parts, which include pressure-containing and safety-critical components, face the strictest scrutiny. Understanding which AMSL applies to your part before prototyping begins saves time and prevents expensive qualification failures later.

Key reasons oilfield prototyping demands a specialized approach:

• Extreme condition performance: Materials must withstand temperatures above 150°C and pressures exceeding 15,000 psi in many applications.
• Regulatory traceability: Every part needs documented material certification and process records.
• Safety consequences: A failed prototype that reaches the field is not a minor defect. It is a safety incident.
• Remote logistics: Offshore and remote land sites cannot wait for slow supply chains.

Reviewing a solid prototyping parts guide before you kick off your project helps you frame your requirements correctly and avoid common scoping mistakes. Understanding the full industrial prototyping process from design intent to finished part is equally important for setting realistic timelines with your team.

What you need: Materials, methods, and prerequisites

Choosing the right material is the first real decision point in oilfield prototyping, and getting it wrong early costs far more than taking extra time upfront. The material must match the operating environment, not just the mechanical drawing.

Metal options are the workhorses of oilfield prototyping. Stainless steel grades 316L and 17-4 PH offer excellent corrosion resistance and are compatible with DMLS (Direct Metal Laser Sintering). Inconel 625 and 718 handle extreme HPHT conditions, making them the default for downhole and subsea applications. Duplex and super duplex stainless are preferred where chloride stress corrosion cracking is a concern.

Polymer and composite options work well for non-pressure-containing parts like sensor housings, cable guides, and flow loop testing components. PEEK (polyether ether ketone) stands out for its chemical resistance and strength-to-weight ratio. SLS (Selective Laser Sintering) and MJF (Multi Jet Fusion) nylons handle many structural applications where metal is overkill.

Elastomers are critical for seal and gasket prototyping. Suppliers offering vacuum casting in oil-resistant polyurethane resins allow rapid production of seal geometries for fit and function testing before committing to expensive production tooling.

Before launching your prototype order, check every supplier against this list:

• API 20S certification for any AM metal parts
• Proven DFM (design for manufacturability) review process for oilfield part geometries
• Small-batch capacity so you can order one to five parts without surcharges that kill budget
• Material traceability documentation that satisfies your own QA (quality assurance) system
• NDT capability in-house or via certified third-party partners

As industry procurement data confirms, selecting suppliers with API 20S certification, proven oilfield DFM, and small-batch flexibility directly minimizes operational downtime. This is not a checkbox exercise. A supplier that meets these criteria shortens your total project cycle from months to weeks.

Pro Tip: Before sharing your CAD files, request a sample DFM report from any new supplier. How they analyze an existing part tells you far more about their oilfield experience than any sales brochure.

For elastomeric components, vacuum casting in oil and gas applications is consistently underused and offers a rapid path to production-representative seals and housings. For enclosures and structural support parts, the sheet metal prototyping workflow can deliver functional assemblies in days, not weeks.

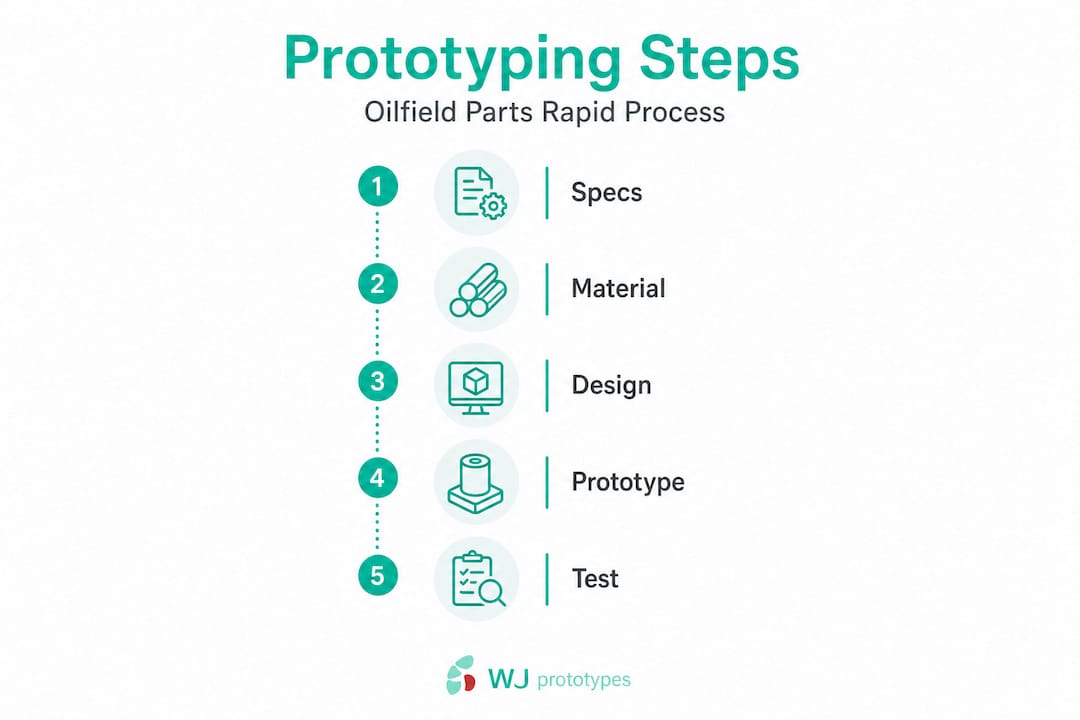

Step-by-step: Prototyping process for oilfield parts

Once prerequisites are in place, follow these key steps for fast, effective prototyping.

1. Define operating specifications precisely. Start with full operating conditions: max pressure, temperature range, chemical exposure, and mechanical loading. Vague specs lead to wrong material choices. Document this as a part requirements sheet before touching any CAD software.
2. Develop and validate your 3D CAD model. Design with your manufacturing method in mind. DMLS parts need support removal access. CNC parts need tool-accessible surfaces. Use DFM principles from the start to avoid redesign cycles later. File formats should be reviewed against your supplier's preferred input, typically STEP or IGES for machined parts and STL or 3MF for AM.
3. Select process and supplier. Match your CAD model, material, and compliance requirements to the right manufacturing method using the table from the previous section. Request instant quotes from at least two certified suppliers to validate pricing and timeline before committing.
4. Submit for DFM review. Any reputable oilfield prototyping supplier will run a DFM review before production. This catches wall thickness issues, unsupported overhangs, and feature tolerances that cannot be held with the chosen process. Never skip this step under time pressure. It saves more time than it costs.
5. Approve first article samples. For any safety-relevant or pressure-containing part, require a first article inspection (FAI) report before authorizing full production. The FAI should include dimensional measurement reports, material certifications, and any required NDT results.
6. Conduct field-relevant functional testing. Test your prototype under simulated service conditions. For HPHT components, pressure-test to 1.5 times maximum operating pressure as a minimum. For chemical exposure parts, run immersion testing in representative fluids. This is where many teams cut corners, and it shows up as field failures.
7. Review, iterate, and finalize. Document every change between prototype versions. Maintain a clear revision log. When the prototype passes all functional tests, lock the design and transfer to your production supplier package.

"The real cost of getting prototyping wrong in oil and gas is not the prototype itself. It is the downtime, the safety review, and the six-month redesign cycle that follows a field failure."

Timeline benchmarks give you leverage in internal conversations. Additive manufacturing delivers prototype lead times around 7 days versus 52 weeks for some traditional casting and forging routes, enabling true JIT support for remote drilling sites.

For tight-tolerance metallic components at every stage, understanding precision engineering in prototyping helps you set the right tolerancing strategy so your first article passes inspection without costly rework.

Troubleshooting and quality verification

With your prototype complete, rigorous verification ensures it meets real-world demands and compliance requirements. This stage is where many teams get overconfident and rush to field deployment.

Start with a structured compliance checklist:

• Dimensional verification: All critical dimensions checked against the nominal drawing with GD&T (geometric dimensioning and tolerancing) callouts verified
• Material certification review: Mill certs or AM powder certification matched to the actual part serial number
• Surface finish confirmation: Ra (roughness average) values verified on sealing surfaces and high-wear zones
• NDT results on file: Applicable methods completed for the AMSL level assigned to the part
• Pressure test records: Hydrostatic test report signed and witnessed where required
• Traceability marking: Part number, heat/batch code, and supplier ID permanently marked per your specification

Common fabrication errors that show up at verification and how to address them:

• Porosity in metal AM parts: Often caused by incorrect laser parameters or contaminated powder. Resolution requires parameter review and re-print, not just post-process patching.
• Dimensional drift in CNC parts: Typically traced to worn tooling or incorrect fixturing. Ask your supplier for their tool change log if dimensions are out of tolerance.
• Delamination in polymer parts: Can result from incorrect build orientation in SLS or insufficient cure in vacuum cast parts. Rebuild with corrected orientation or increase cure cycle.
• Surface roughness out of spec on sealing faces: AM surfaces on sealing areas require post-process machining. Specify this in your drawings, not verbally.

The updated API 20S framework defines NDT requirements by AMSL level, with AMSL 3 requiring radiographic or computed tomography (CT) scanning in addition to surface methods. Know your part's criticality level before you order, because changing the NDT scope after production adds both cost and delay.

When to retest: any dimensional repair, heat treatment performed after initial inspection, or design change that affects material properties or geometry requires a full re-inspection. Partial re-inspection saves time but can miss interaction effects between changes and base material properties.

For metallic prototypes requiring tight dimensional tolerance, a detailed review of precision in metal prototyping gives you a solid framework for both specifying and verifying what you need from your supplier.

Perspective: What most oil & gas innovators miss about rapid prototyping

Speed is the headline. It is not the strategy. After working with procurement teams across upstream, midstream, and subsea applications, the pattern is consistent: the teams that get the most value from rapid prototyping are the ones that treat it as a qualification tool, not just a fast parts order.

Here's the uncomfortable truth. Many engineers request a rapid prototype to save time but specify it to traditional fabrication standards, building in tolerances and inspection requirements that are perfectly suited to a six-month casting lead time. That mismatch generates friction, delays, and frustration with the technology itself rather than the misaligned specification.

The second miss is supplier strategy. Procurement teams under deadline pressure often go with whoever responds fastest. But an uncertified supplier that delivers in five days creates more risk than a seven-day lead time from a fully API 20S-qualified source. The apparent time savings disappear when the qualification paperwork fails your own QA review.

Batch flexibility is the third undervalued lever. The ability to order two or three parts at prototype cost, then scale to twenty or fifty without retooling, is what makes rapid prototyping genuinely strategic for JIT supply chains. Teams that lock into minimum order quantities too early lose this advantage completely.

The deeper lesson from experienced oilfield engineers who've adopted AM and advanced CNC is captured well in resources on industrial prototyping in China: the geographic origin of your prototype matters far less than the certification, traceability, and process discipline behind it. A certified manufacturer with ISO and API 20S credentials on the other side of the world delivers more field-ready parts than an uncertified local shop.

Balance speed with rigor. The two are not opposites in oilfield prototyping. They are the only combination that actually works.

Get oilfield prototypes faster: Services and next steps

Armed with practical knowledge, you can move fast on your next oilfield prototyping need without sacrificing compliance or quality. WJ Prototypes offers a full range of services built specifically for demanding industrial applications, from DMLS metal AM and CNC machining services with a broad selection of CNC machining materials for oilfield-grade alloys, to rapid vacuum casting solutions for seals and polymer components. With ISO certification, experienced engineering review, DFM analysis on every order, and global delivery capability, WJ Prototypes is positioned as your direct manufacturing partner from first prototype to production-ready parts. Request an instant quote and get your oilfield components moving today.

Get An Instant Quote

Explore competitive Rapid Prototyping Services with expert support from WJ Prototypes.

Whether you're comparing suppliers or looking to optimize costs, our team can help you evaluate the best option for your project.

👉 Request A Quote now or email us at info@wjprototypes.com to get started.

Frequently asked questions

What are the most common materials for oilfield prototyping?

The most common materials are 316L and 17-4 PH stainless steel, Inconel 625 and 718 for HPHT applications, PEEK for functional polymer parts, and oil-resistant polyurethanes for seal prototyping. Each material should be selected based on the specific chemical and thermal exposure profile of the target application.

How soon can I expect a prototype compared to traditional methods?

Additive manufacturing delivers prototypes in approximately 7 days, compared to up to 52 weeks with conventional casting or forging routes. This speed advantage is what makes AM the backbone of JIT supply strategies for remote oilfield sites.

What certification should a supplier have for oil & gas prototypes?

API 20S certification ensures compliance with process control and NDT requirements covering AMSL 1 through 3 for additive manufacturing parts used in oil and gas. ISO certification from your supplier reinforces overall quality management system reliability.

How do I ensure my prototype meets safety standards?

Require NDT and API 20S compliance documentation during supplier qualification and at first article inspection, and pressure-test any fluid-carrying component to at least 1.5 times maximum operating pressure before field deployment.

Can small batches or one-off parts really minimize downtime?

Yes. Suppliers with small-batch capacity and rapid production eliminate the forced wait associated with high minimum order quantities, directly supporting just-in-time repair and maintenance strategies at remote or offshore sites.
